2027 Big Tex Trailers 25GN-30D5A 25+5 Flatbed Gooseneck w/Mega Ramps

2027 Big Tex 25GN 25+5 Flatbed Gooseneck Equipment Trailer with Mega Ramps

The 2027 Big Tex 25GN 25+5 is a heavy-duty tandem dual-wheel gooseneck trailer built for serious hauling applications. Designed for construction professionals, equipment operators, and hotshot haulers, this trailer features a 25-foot flat deck with a 5-foot dovetail and full-width Mega Ramps, providing a stable loading platform for skid steers, excavators, tractors, and other heavy equipment. The Mega Ramp system covers the full width of the trailer and utilizes heavy-duty spring assistance for easier lifting and operation.

Built on a low-profile pierced-beam frame with dual 12,000-lb oil-bath axles, adjustable heavy-duty suspension, dual 50,000-lb landing gear jacks, LED lighting, lockable toolbox, and extensive tie-down options, the 25GN is engineered to deliver exceptional durability and performance under demanding conditions.

Specifications

• Model: Big Tex 25GN-25+5MR
• Size: 102" x 25' Flat Deck + 5' Dovetail
• Trailer Type: Flatbed Gooseneck Equipment Trailer
• GVWR: 25,900 lbs
• Trailer Weight: Approximately 7,450 lbs
• Payload Capacity: Approximately 18,450 lbs
• Axles: (2) 12,000-lb Dual-Wheel Oil-Bath Axles
• Suspension: Heavy-Duty 30,000-lb Adjustable Suspension
• Coupler: Adjustable 2-5/16" Gooseneck Coupler
• Jack: Dual Two-Speed 50,000-lb Landing Gear
• Frame: 12" I-Beam Low-Profile Pierced-Beam Design
• Deck Width: 102"
• Brakes: Electric Brakes on Both Axles
• Lighting: LED Lighting Package
• Flooring: Treated Lumber Decking

Key Features

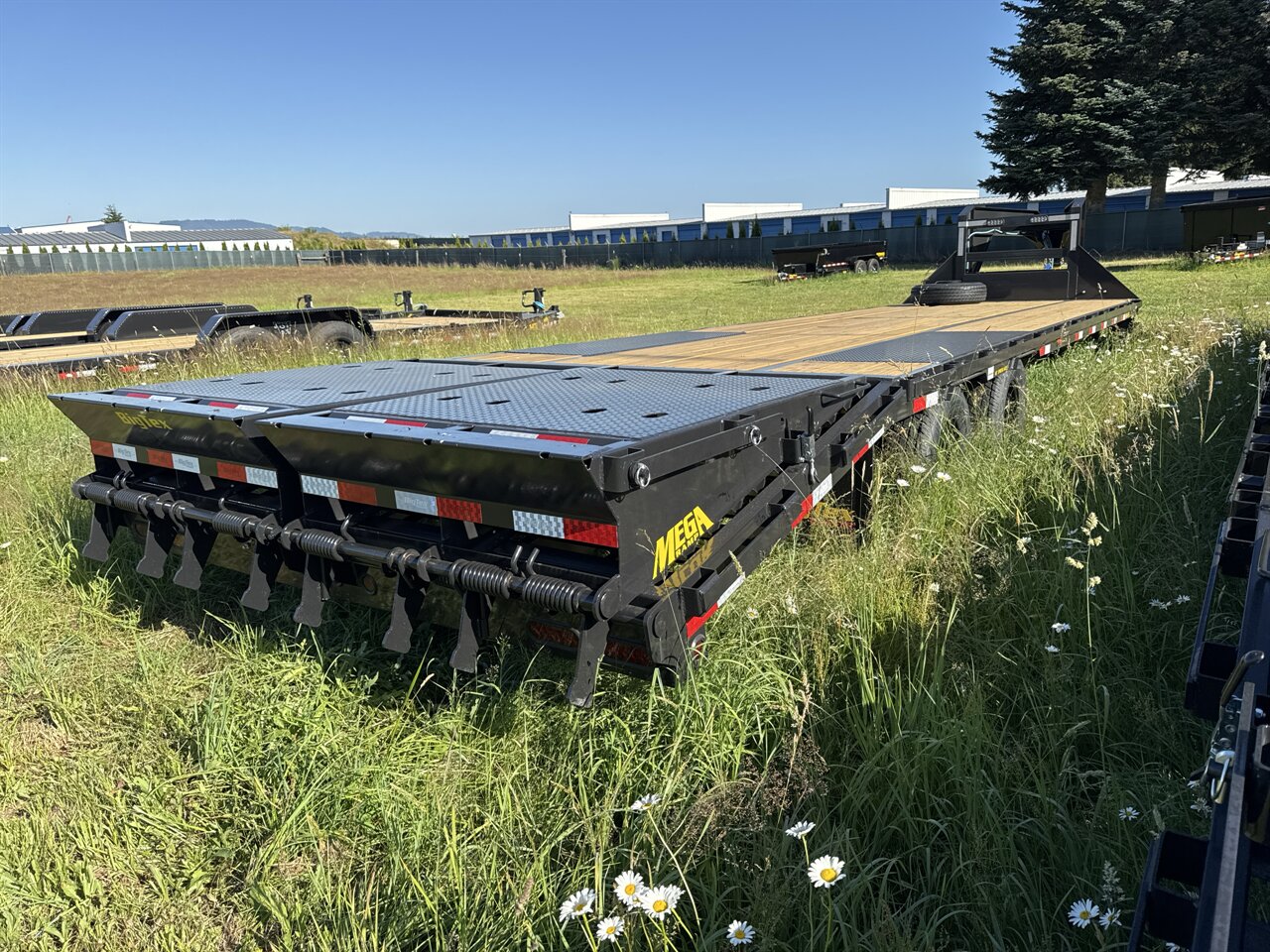

? Full-width spring-assisted Mega Ramps
? 25' deck plus 5' dovetail configuration
? Massive 18,450-lb hauling capacity
? Dual 12K heavy-duty oil-bath axles
? Adjustable heavy-duty suspension system
? Lockable front toolbox with chain storage
? Heavy-duty rub rail, stake pockets, and chain spools
? Low-profile deck for easier loading angles
? Dual 50,000-lb landing gear jacks
? LED lighting and sealed wiring harness

Weight & Capacity

• Empty Weight: 7,450 lbs
• Carrying Capacity (Payload): 18,450 lbs
• GVWR: 25,900 lbs

Website Description

The 2027 Big Tex 25GN 25+5 Flatbed Gooseneck with Mega Ramps is built to tackle the toughest hauling jobs with confidence. Featuring a heavy-duty pierced-beam frame, dual 12K oil-bath axles, adjustable suspension, and full-width Mega Ramps, this trailer delivers exceptional loading convenience and durability. With an impressive 18,450-lb payload capacity, the 25GN is the ideal choice for transporting heavy construction equipment, tractors, skid steers, and commercial machinery while providing the strength and reliability that Big Tex is known for.
