2027 Big Tex Trailers 16TI-24 17.6K GVWR Super Duty Tilt

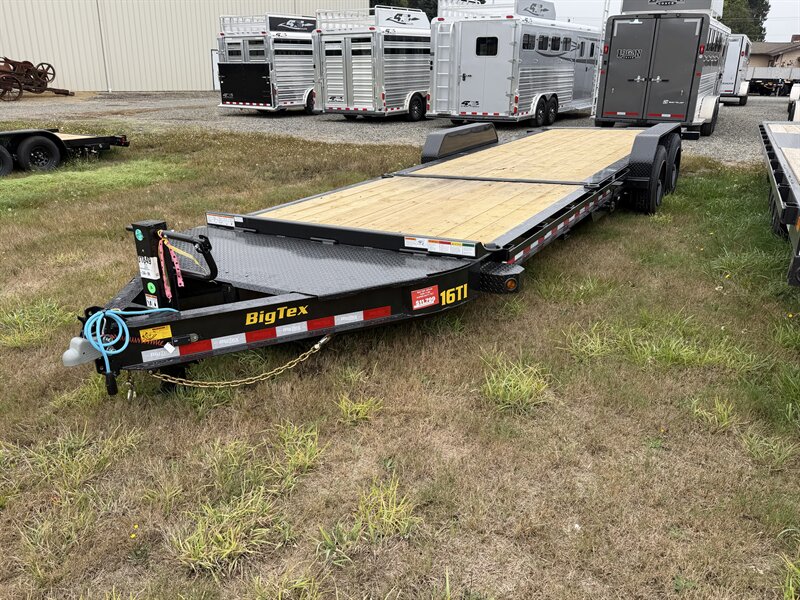

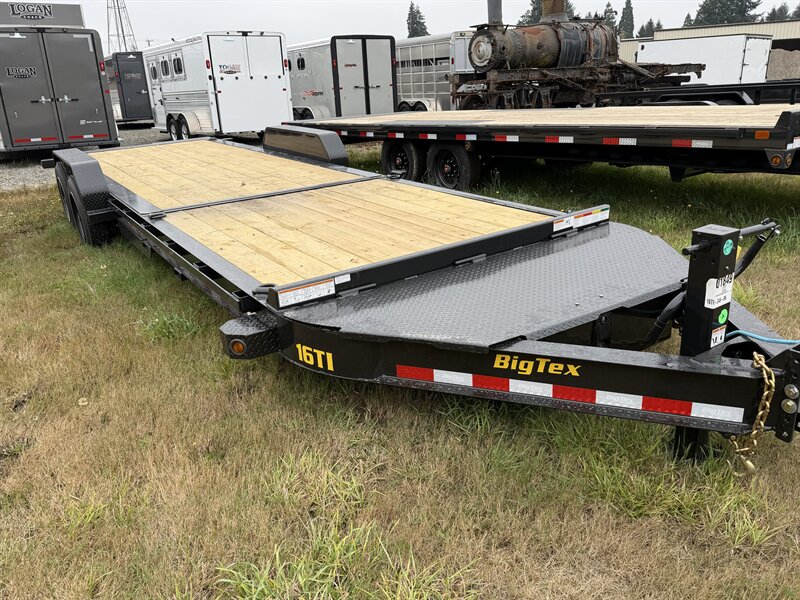

New 2027 Big Tex 16TI-24 7' x 24' Super Duty Tilt Flatbed Trailer

The 2027 Big Tex 16TI-24 Super Duty Tilt is built for customers who need serious equipment-hauling capacity combined with the convenience of a low-angle, ramp-free loading system. With a full 24' tilt deck, heavy-duty I-beam construction, and over 14,000 lbs of carrying capacity, this trailer is an excellent choice for contractors, equipment operators, farmers, landscapers, and commercial users.

With a 17,600 lb GVWR, approximate 3,450 lb empty weight, and an impressive 14,150 lb carrying capacity, the 16TI-24 is ready to haul skid steers, mini excavators, compact tractors, scissor lifts, vehicles, and other heavy equipment.

Ramp-Free Hydraulic Tilt Deck

Forget about lifting and storing heavy ramps. The 16TI features a hydraulic-dampened tilt deck with valve control and Big Tex's single-side EZ Pedal locking mechanism.

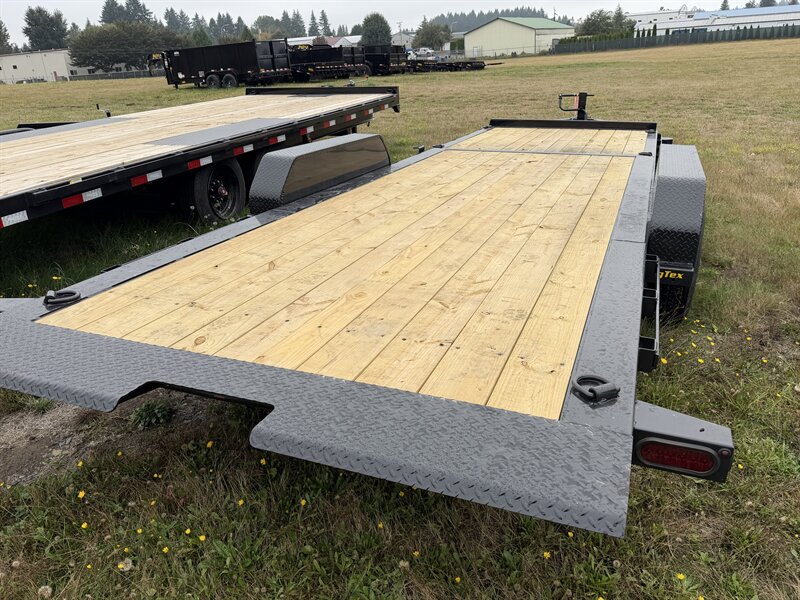

The deck tilts to a low 12-degree loading angle, while the diamond-plate rear knife edge provides a smooth transition from the ground onto the trailer. This makes the 16TI especially useful for loading low-clearance equipment such as scissor lifts and compact machinery.

Key Specifications

• Model: 2027 Big Tex 16TI-24
• Bed Size: 83" Wide x 24' Long
• GVWR: 17,600 lbs
• Empty Weight: Approx. 3,450 lbs
• Carrying Capacity: Approx. 14,150 lbs
• Axles: (2) 8,000 lb premium axles
• Brakes: Forward self-adjusting electric brakes
• Deck: Full tilt deck
• Tilt Angle: 12 degrees
• Tilt Operation: Hydraulic dampening with valve control
• Deck Lock: Single-side EZ Pedal locking mechanism
• Rear Loading Edge: Diamond-plate knife edge
• Main Frame: Heavy-duty 8" I-beam
• Floor: Treated pine
• Tie Downs: (6) heavy-duty 5/8" D-rings
• Rub Rail: Full-length rub rail along both sides
• Fork Pockets: Integrated for added versatility

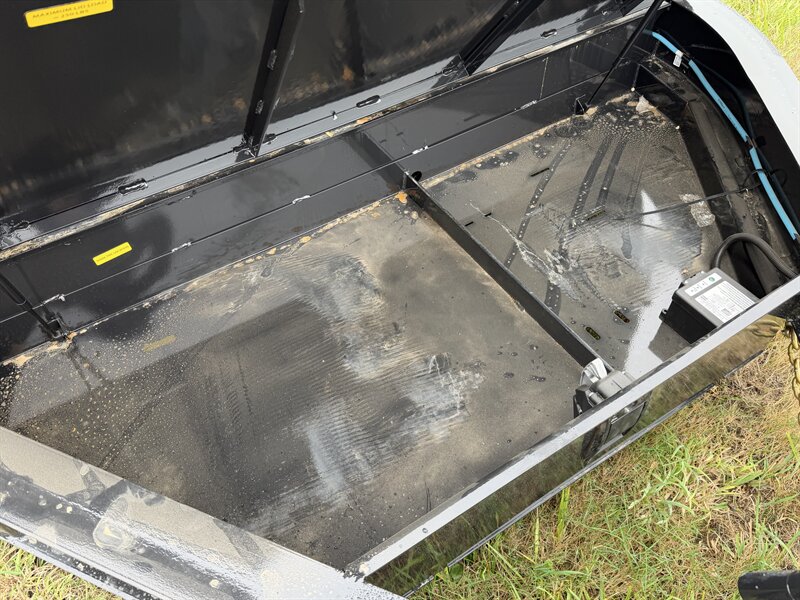

• Storage: Large full-tongue toolbox with locking lid
• Coupler: Adjustable 2-5/16" Demco EZ Latch
• Jack: Heavy-duty 12,000 lb drop-leg jack
• Tires: ST215/75R17.5 Load Range H radial tires
• Lights: Recessed LED lighting
• Wiring: Sealed modular cold-weather wiring harness
• Plug: 7-way RV
• Pull Type: Bumper Pull

Serious Equipment-Hauling Capacity

With approximately 14,150 lbs of carrying capacity, the Big Tex 16TI-24 gives you the payload needed for larger equipment while maintaining the convenience of a bumper-pull trailer.

The 24' full tilt deck provides plenty of room for hauling skid steers, mini excavators, tractors, scissor lifts, forklifts, vehicles, construction equipment, and more. Six heavy-duty D-rings and full-length rub rails provide multiple options for securing equipment and cargo.

No Ramps Required

One of the biggest advantages of the 16TI-24 is its full hydraulic-dampened tilt deck. Simply unlock the deck, tilt it to the ground, load your equipment, and return the deck to the transport position. There's no need to pull out, position, or store equipment ramps.

For customers who regularly load and unload heavy or low-clearance machinery, the 2027 Big Tex 16TI-24 Super Duty Tilt offers an excellent combination of 14,150 lbs of payload, a 24' deck, 8K axles, and easy ramp-free loading.

GVWR: 17,600 lbs
Empty Weight: Approx. 3,450 lbs
Carrying Capacity: Approx. 14,150 lbs
Deck Size: 83" x 24'

Empty weight and carrying capacity are approximate and may vary depending on installed options.
