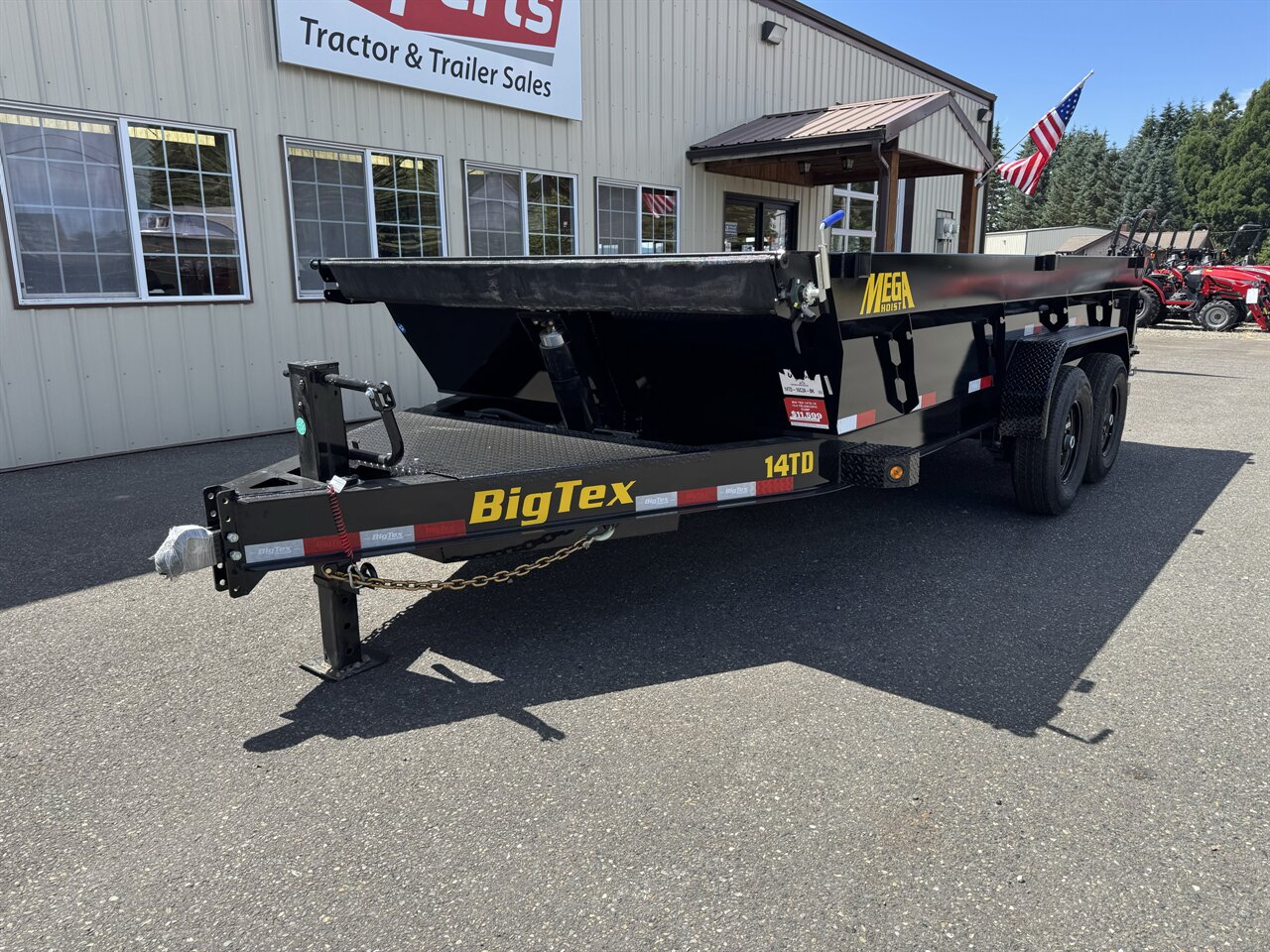

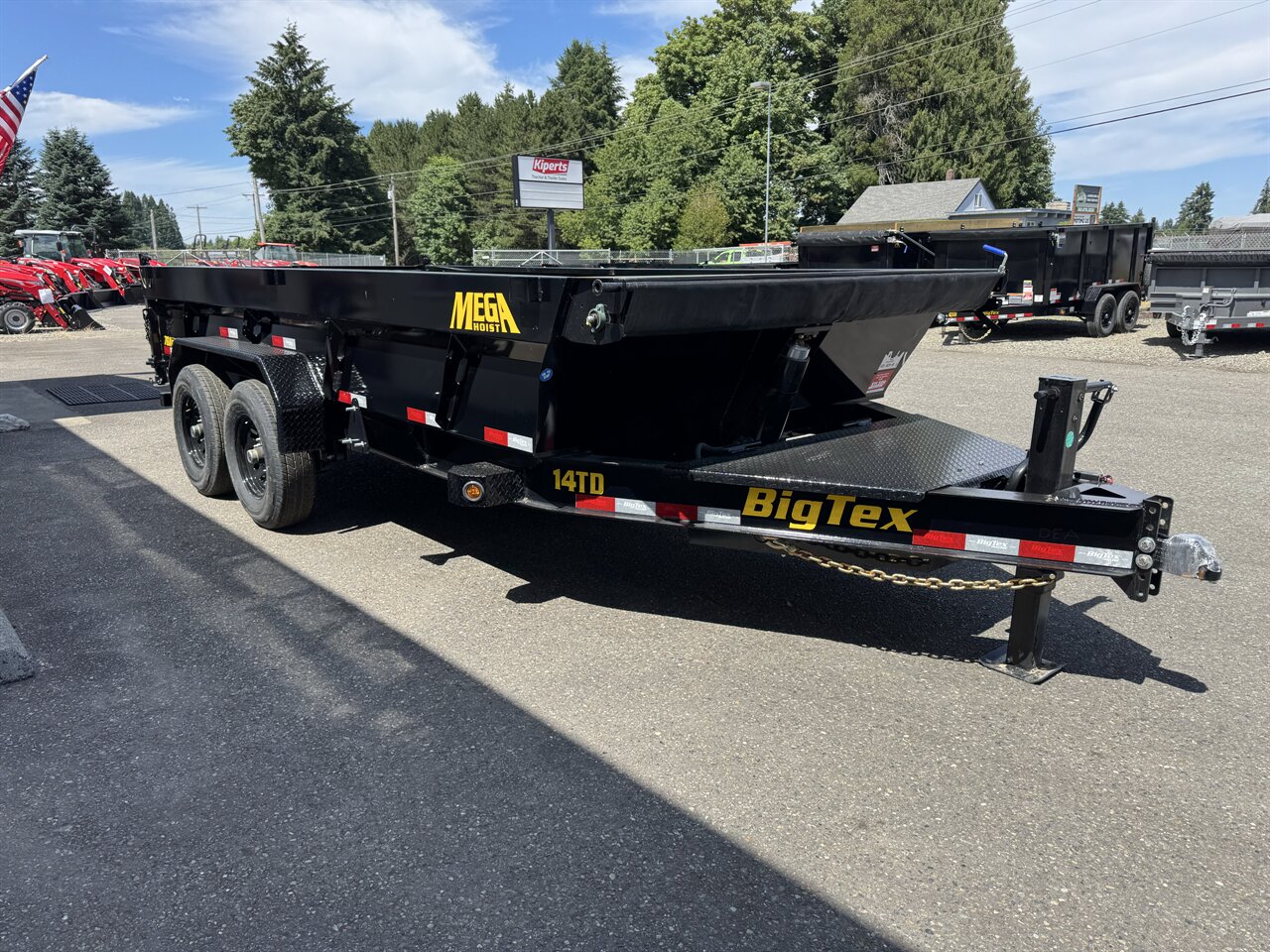

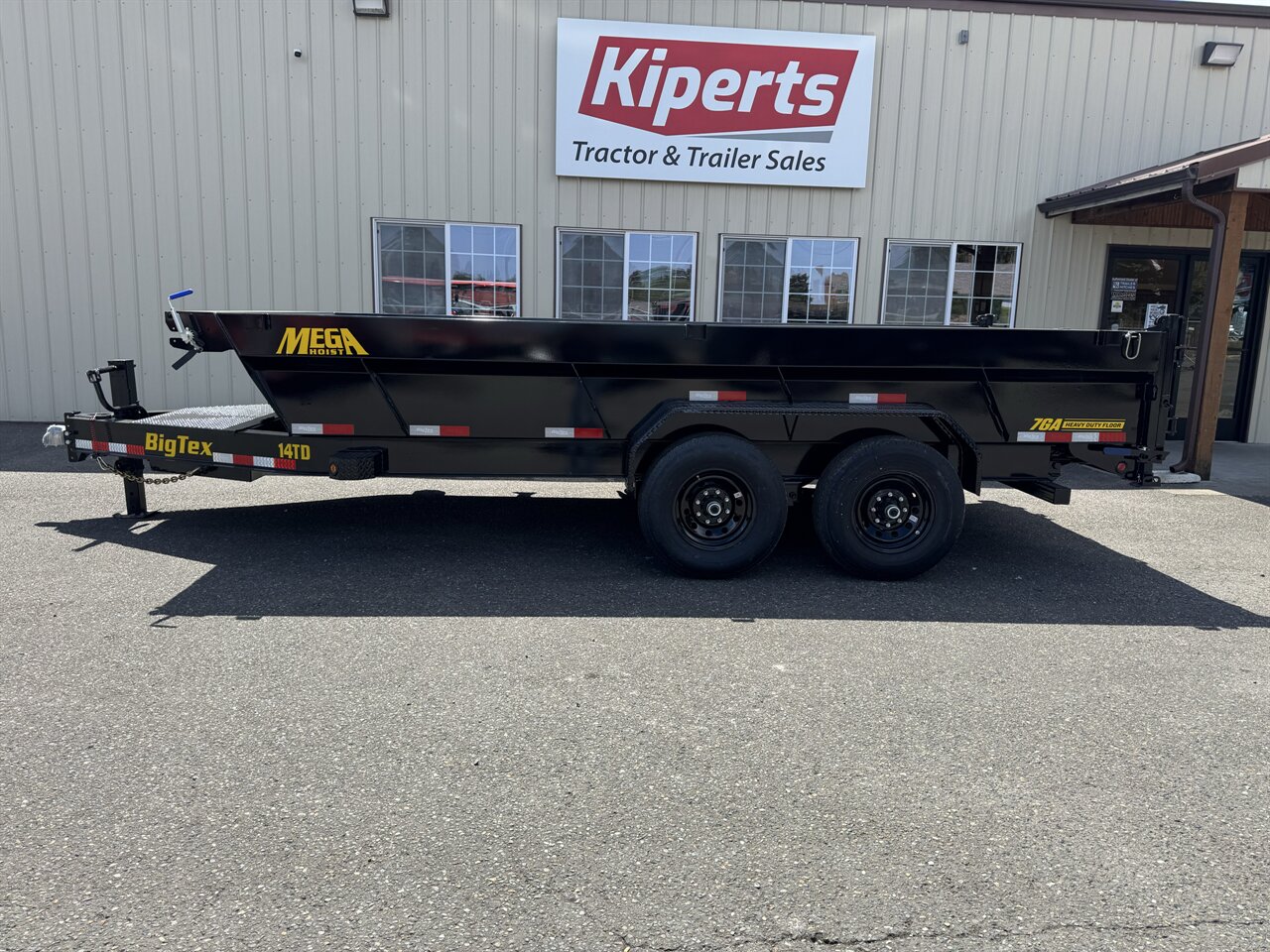

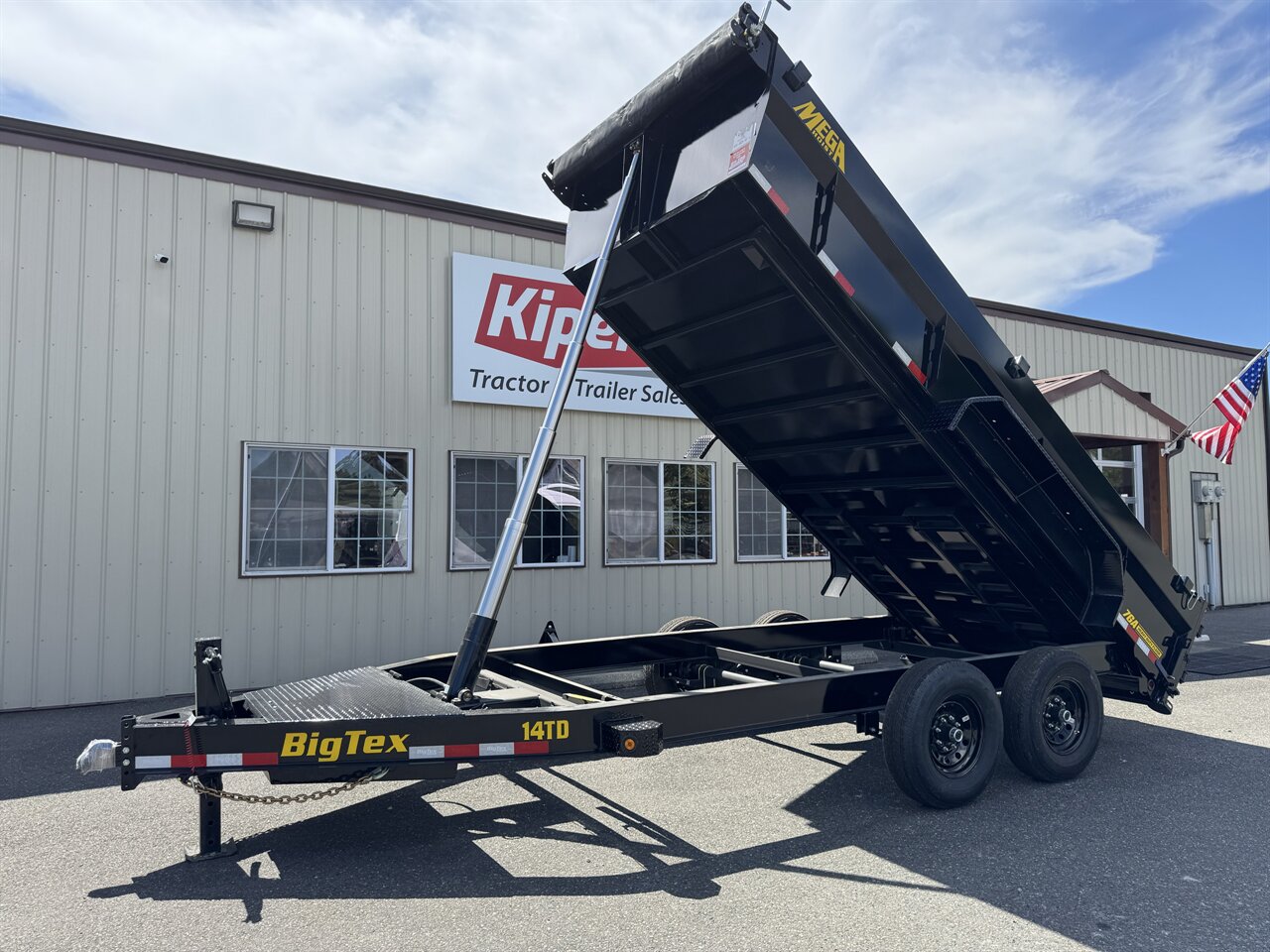

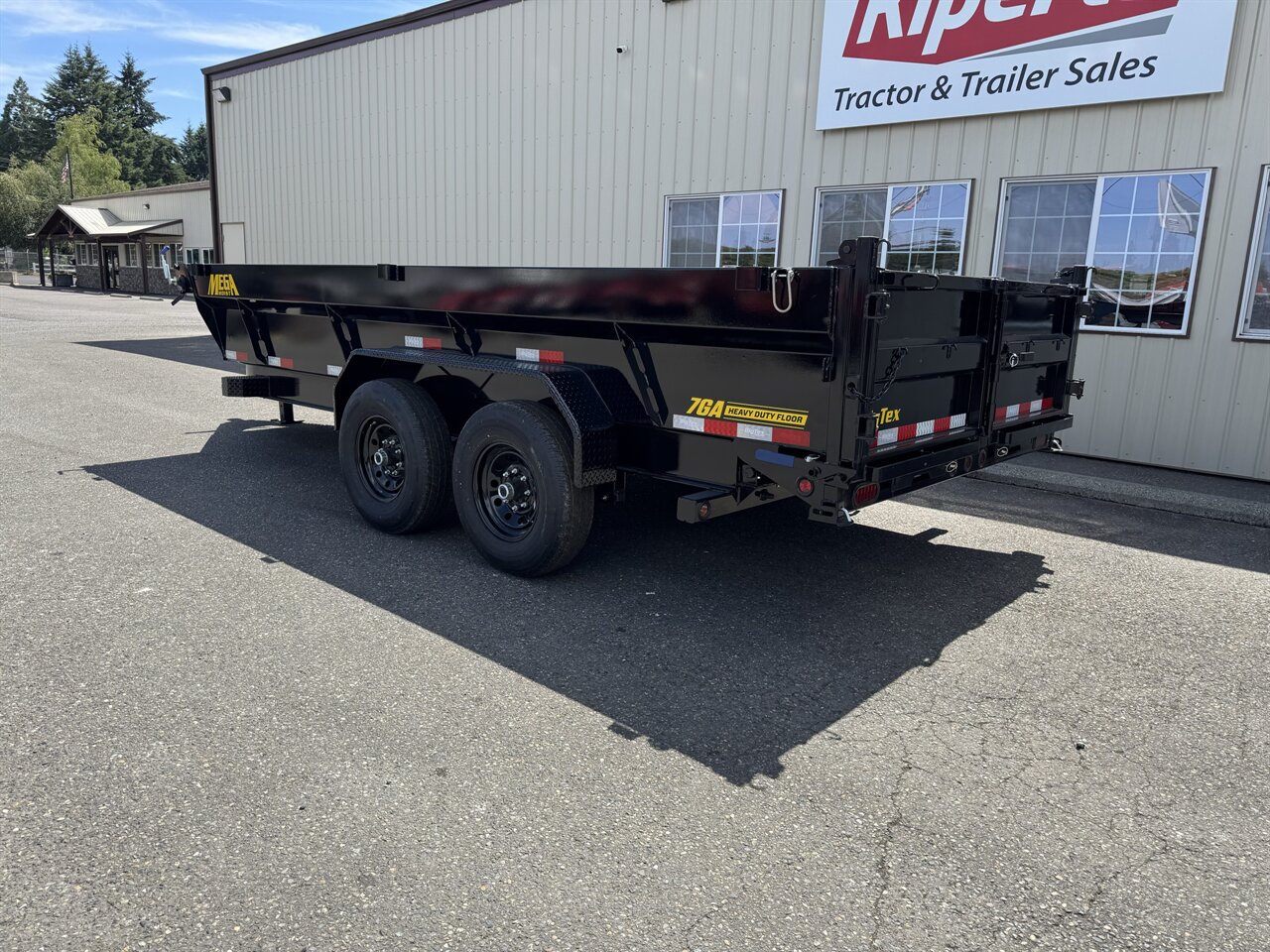

2027 Big Tex Trailers 14TD-14 7' x 14' 15.4K Telescopic Dump Trailer

Heavy-Duty Telescopic Dump Trailer Engineered for Maximum Lifting Power

The 2027 Big Tex 14TD-14 7' x 14' 15.4K Telescopic Dump Trailer is built for contractors, excavators, landscapers, municipalities, and property owners who demand superior strength and dependable performance. Equipped with Big Tex's advanced 5-stage front-mount telescopic hydraulic cylinder, the 14TD delivers greater lifting leverage, a steeper dump angle, and faster unloading than traditional scissor hoists—making it the perfect choice for hauling gravel, dirt, rock, asphalt, demolition debris, and heavy construction materials.

Designed with an 8-inch I-beam frame, heavy-duty 7-gauge steel floor, premium running gear, and reinforced side rails, this trailer is built to withstand the toughest jobs while providing years of reliable service.

Specifications

• Model: 2027 Big Tex 14TD-14
• Trailer Size: 7' x 14'
• GVWR: 15,400 lbs
• Trailer Weight: Approximately 4,030 lbs
• Payload Capacity: Approximately 11,370 lbs
• Axles: (2) 7,000-lb Premium Cambered EZ-Lube Axles
• Brakes: Forward Self-Adjusting Electric Brakes on Both Axles
• Coupler: Adjustable 2-5/16" Demco EZ-Latch Coupler

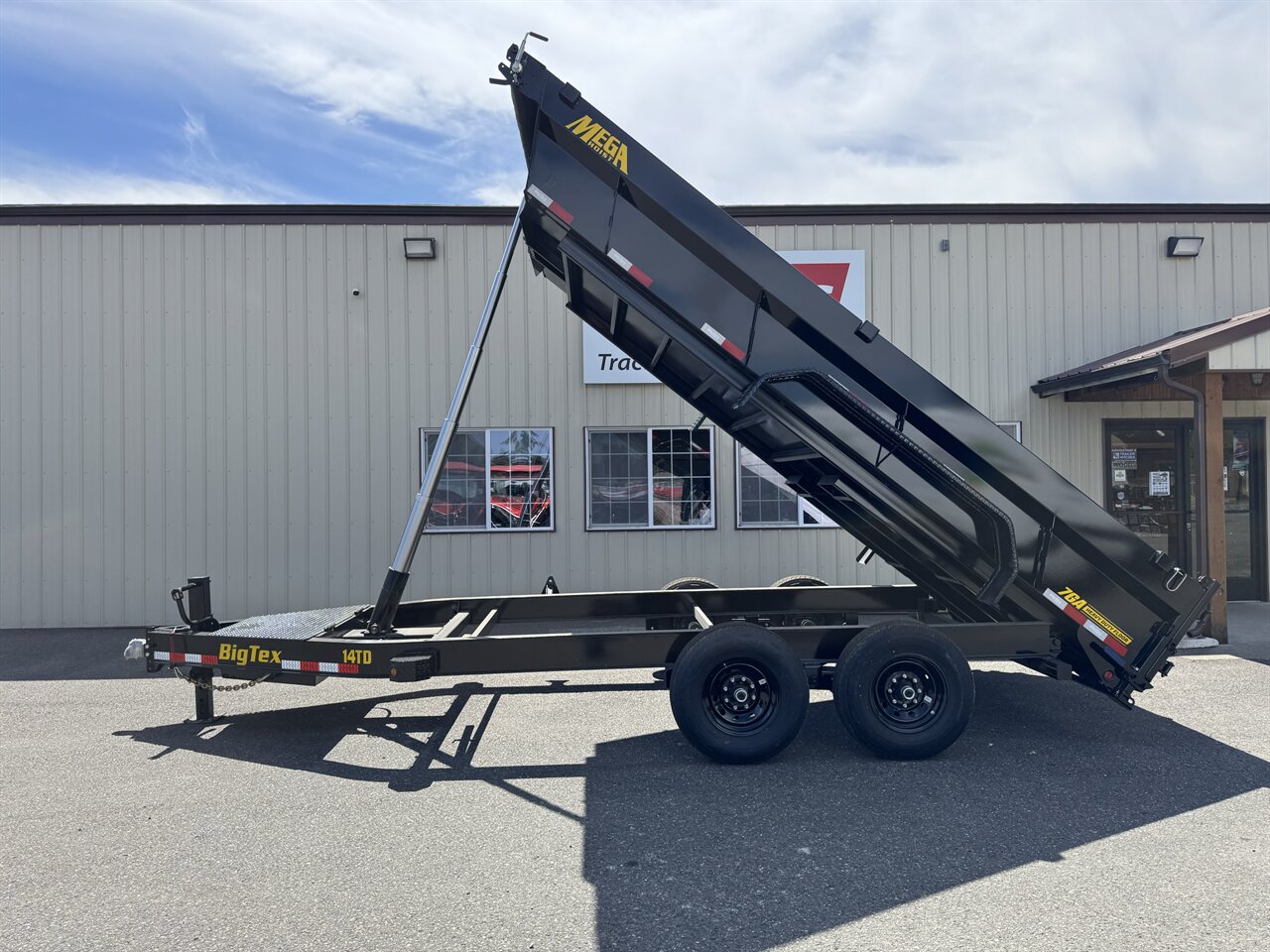

• Hydraulic System: 5-Stage Front-Mount Telescopic Hydraulic Cylinder
• Maximum Dump Angle: Up to 45°
• Floor: Heavy-Duty 7-Gauge Smooth Steel
• Side Walls: 24" Tall Steel Sides
• Frame: 8" Seamless I-Beam Main Frame
• Jack: 12,000-lb Spring-Loaded Drop-Leg Jack
• Lighting: Sealed Recessed LED Lighting
• Battery: Deep-Cycle Battery with 110V Integrated Charger
• Tires: ST235/80R16 Radial Tires

Standard Features

• Powerful 5-stage front-mount telescopic hydraulic lift
• Heavy-duty 7-gauge steel dump body

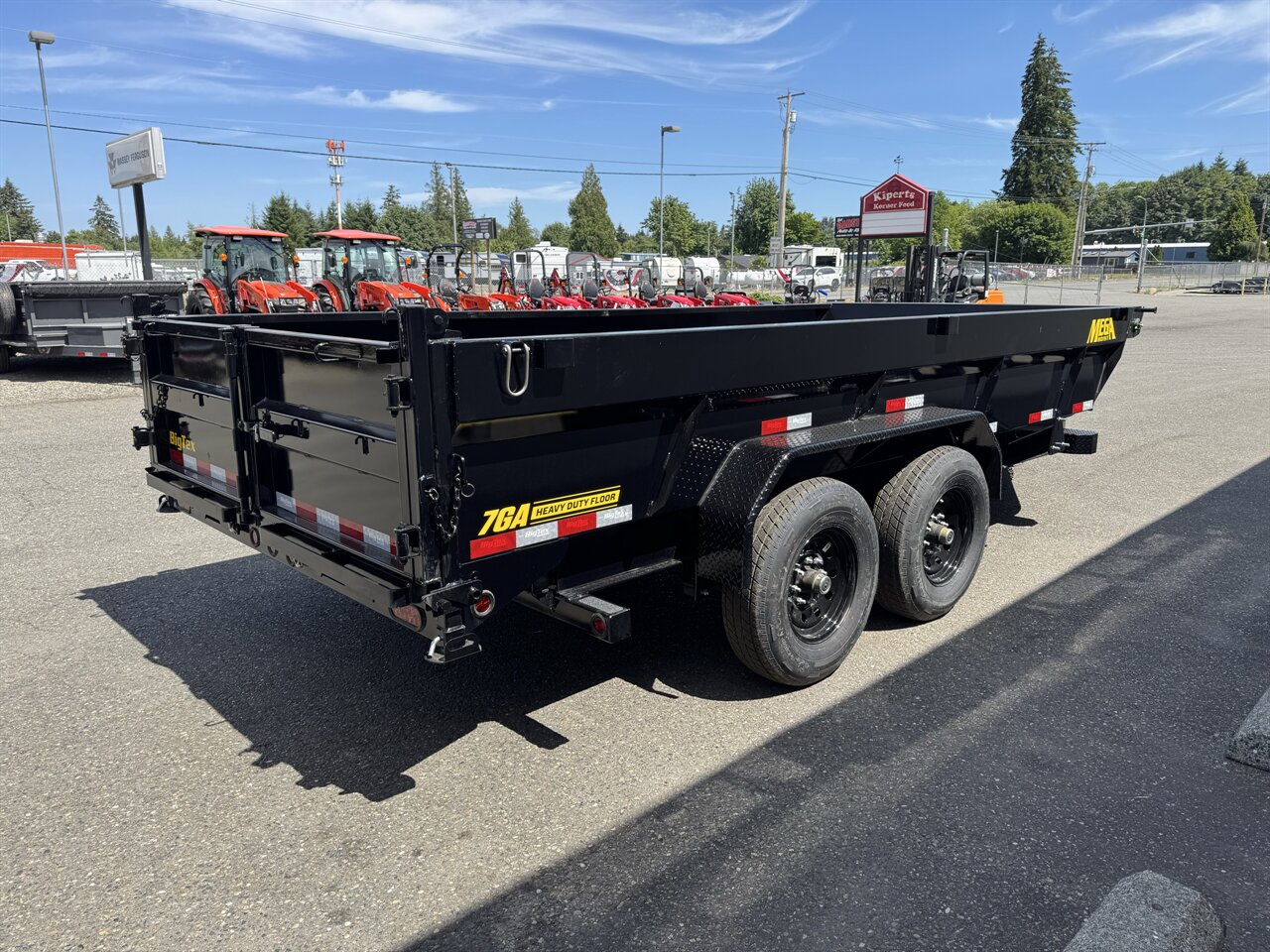

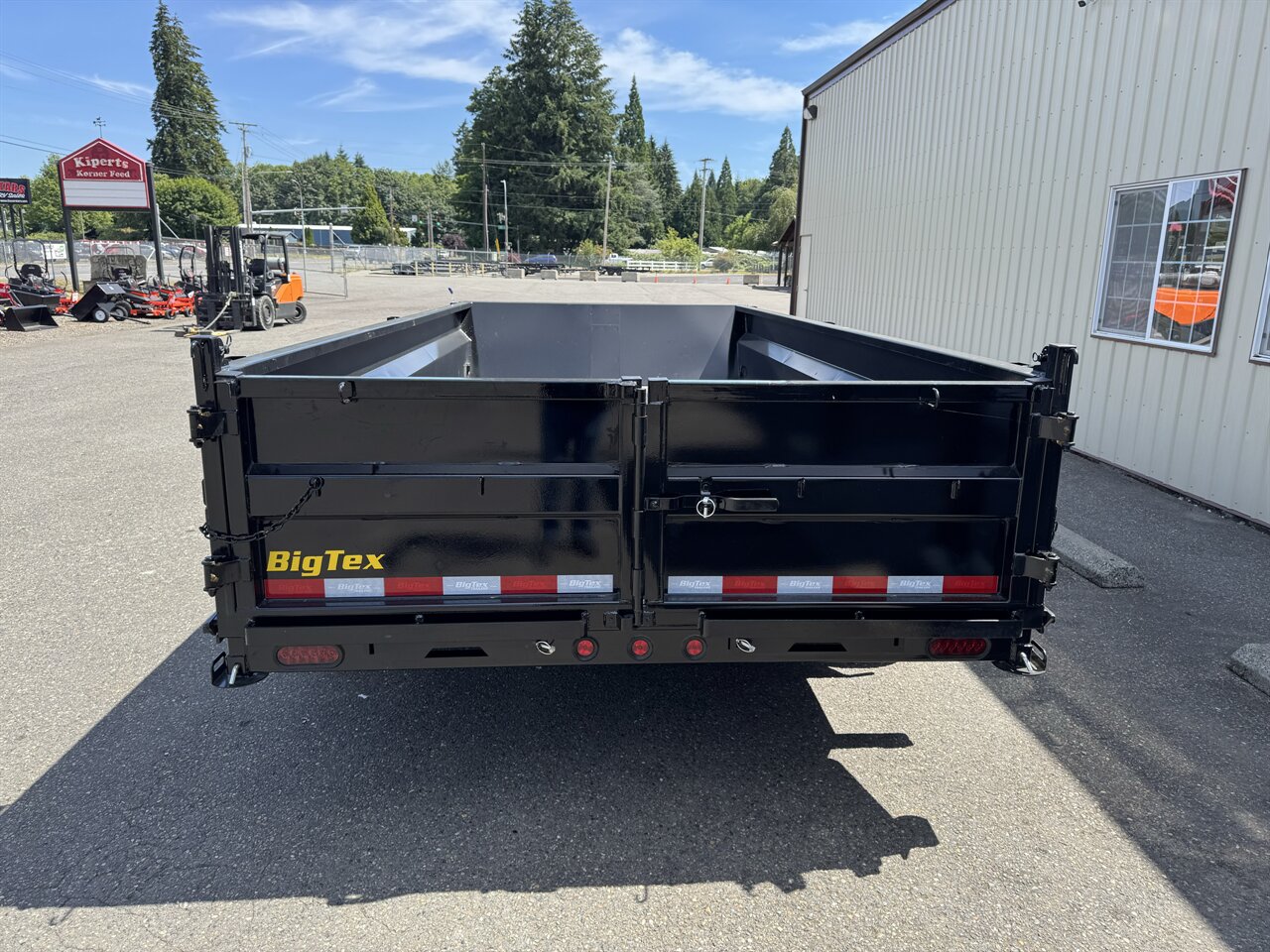

• Rear combination barn doors and spreader gate

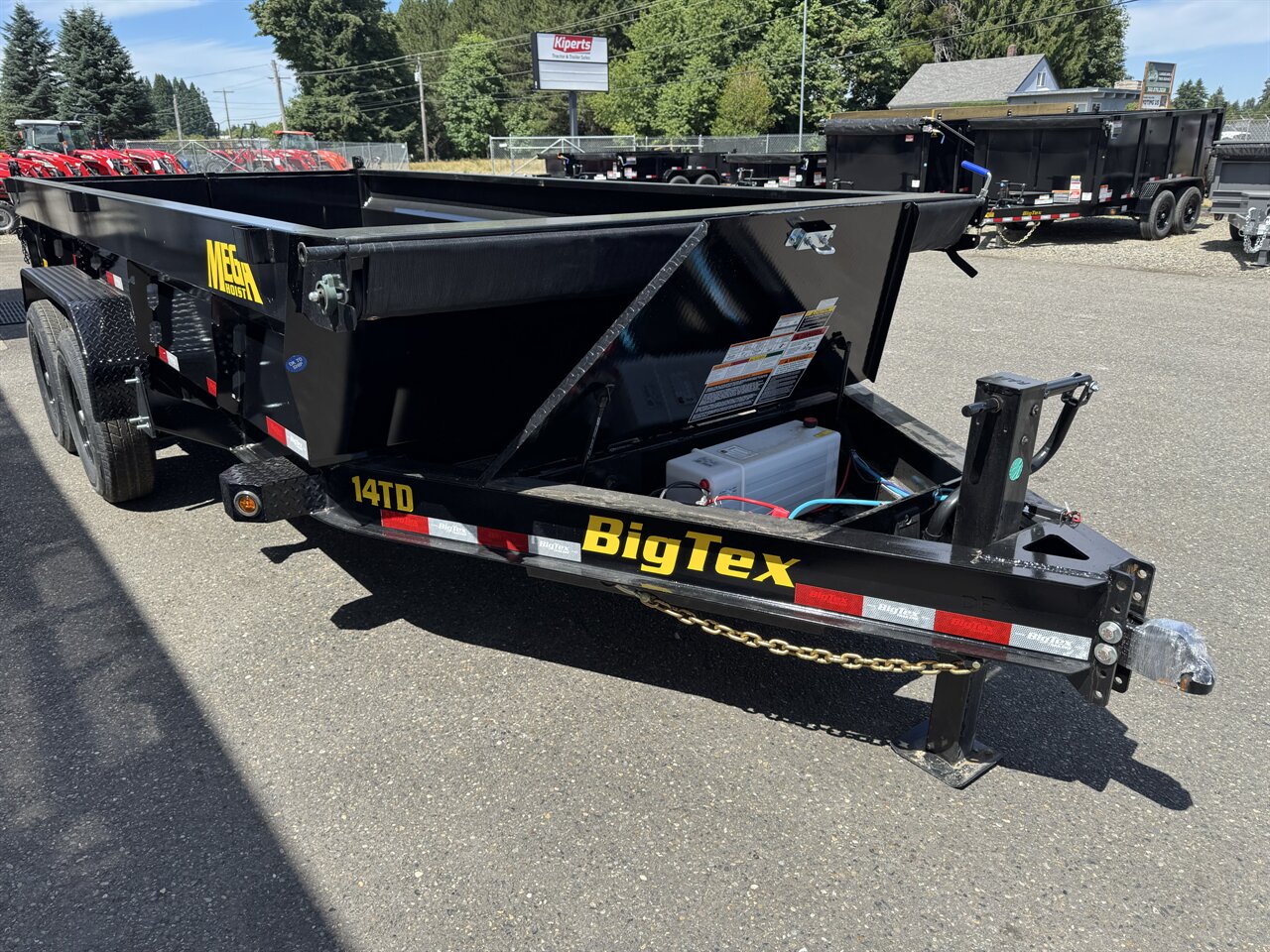

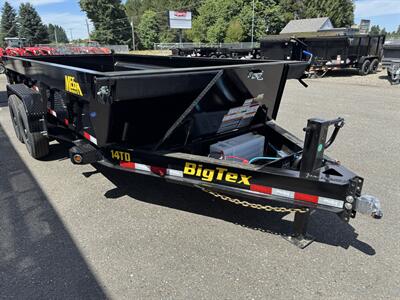

• Mega-sized lockable toolbox for hydraulic pump, battery, tools, chains, and straps
• Fully formed tarp shroud with tarp and rear tarp rod holders
• Reinforced side rails for added structural strength
• Four heavy-duty D-rings for equipment tie-down
• Stake pockets and J-hooks for additional cargo securement
• Rear stabilizer stands
• Convenient side step for easy bed access
• Sealed modular wiring harness
• Durable powder-coated finish for long-lasting corrosion resistance
• Premium LED lighting package
• Optional slide-in loading ramps available for transporting compact equipment

Built for the Toughest Jobs

The 2027 Big Tex 14TD-14 combines a class-leading 11,370-pound payload capacity with the proven performance of a front-mounted telescopic cylinder, allowing you to unload heavy, dense materials quickly and efficiently. Whether you're moving rock, concrete, topsoil, demolition debris, or construction equipment, this trailer is designed to maximize productivity while minimizing downtime.

If you're looking for a dump trailer that offers exceptional lifting power, rugged durability, and professional-grade performance, the 2027 Big Tex 14TD-14 15.4K Telescopic Dump Trailer is built to exceed expectations on every job.
