2027 Big Tex Trailers 14LP-14 14K Dump Trailer 4' Sides

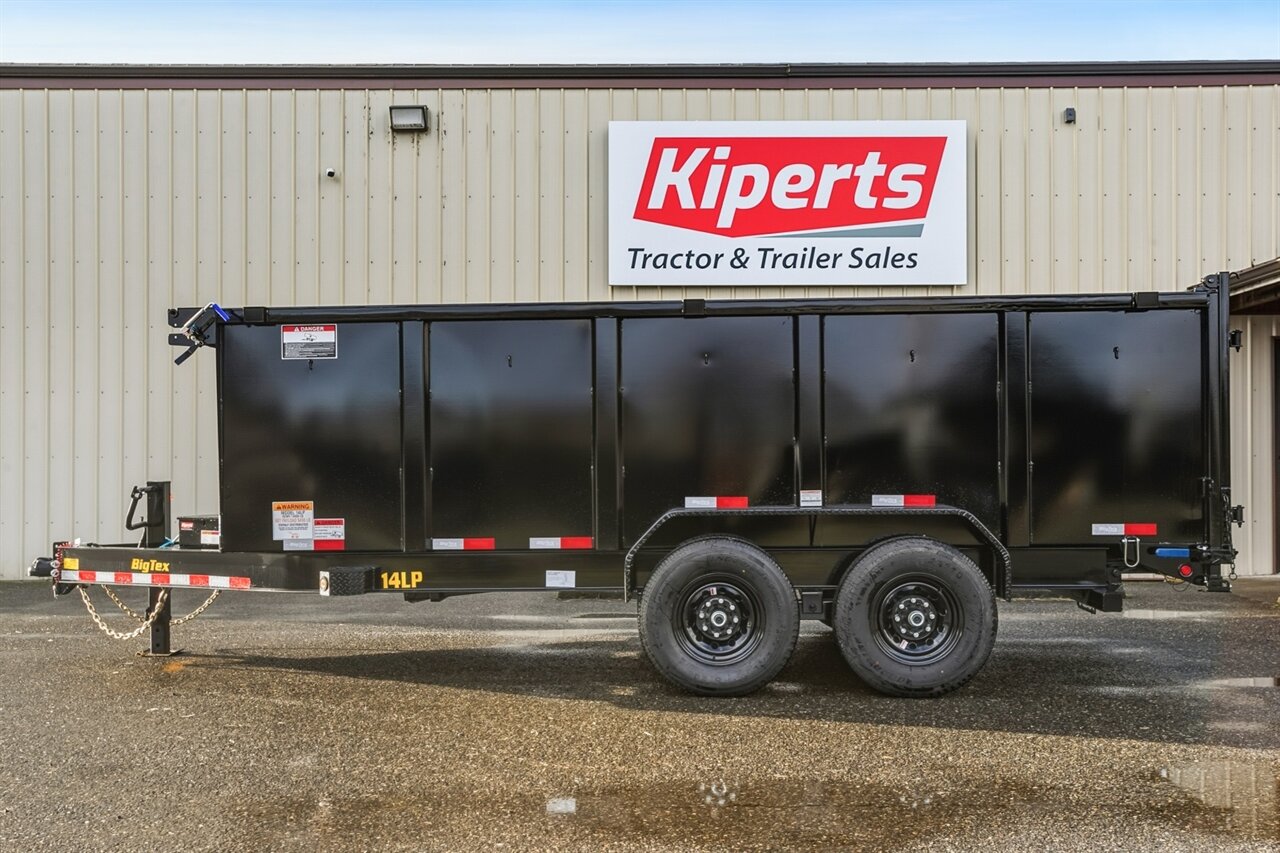

2027 Big Tex Trailers 14LP-14 7' x 14' 14K Low Profile Dump Trailer with 4' Sides

The 2027 Big Tex 14LP-14 is a commercial-grade 7' x 14' low profile dump trailer built for contractors, landscapers, excavation crews, farmers, and property owners who demand maximum durability and hauling capacity. Featuring 48-inch tall solid steel sides, this trailer provides outstanding cargo volume for hauling demolition debris, gravel, dirt, brush, firewood, mulch, and other bulky materials while maintaining the strength and reliability that Big Tex is known for.

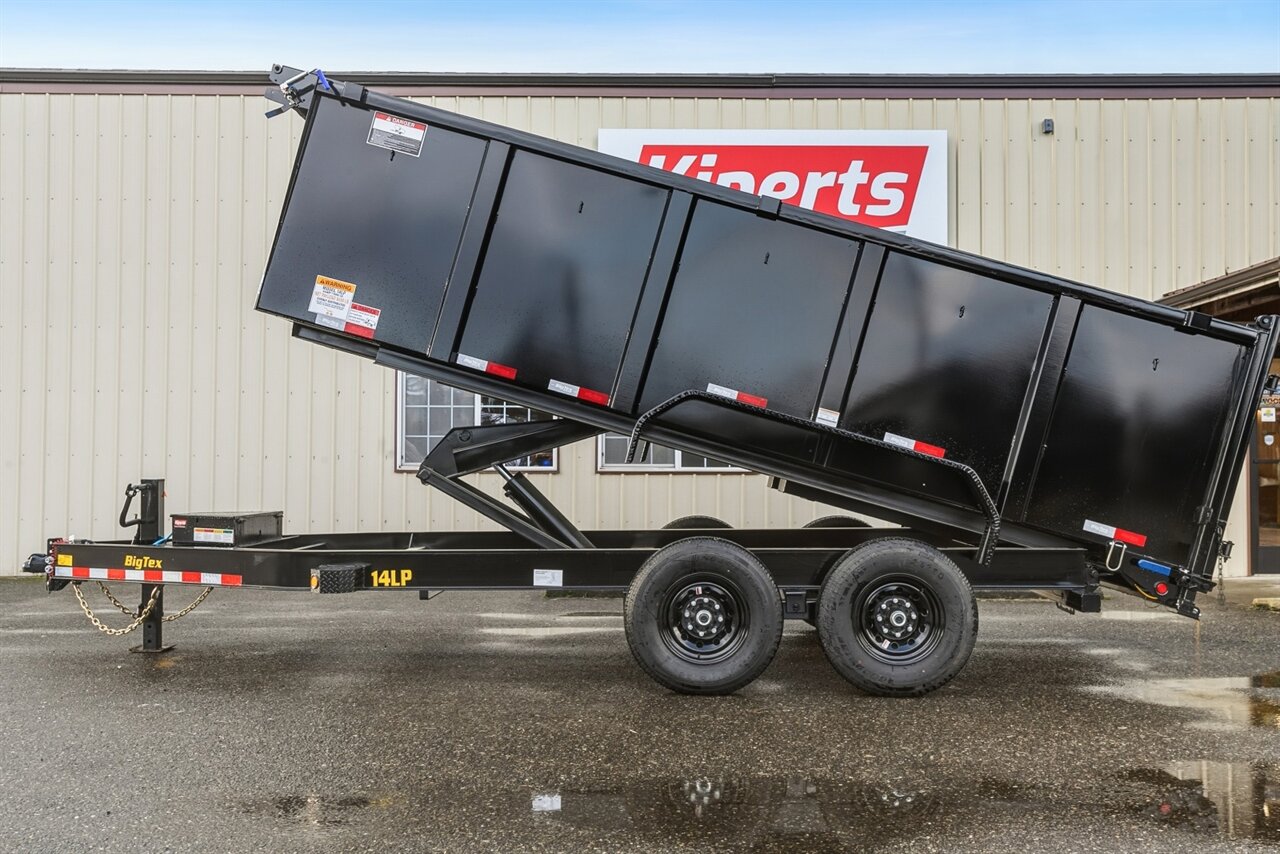

Designed around a heavy-duty 8-inch seamless I-beam frame, the 14LP-14 combines an ultra-low 24-inch deck height with a powerful electric/hydraulic scissor hoist, making loading equipment and unloading heavy materials faster and easier. Standard 6.5-foot slide-in ramps, rear stabilizer stands, a combination barn door/spreader gate, and a fully enclosed tarp system make this trailer equally at home hauling compact tractors, skid steers, mini excavators, and UTVs.

Specifications

• Model: Big Tex 14LP-14
• Bed Size: 83" x 14' (7' x 14')
• Trailer Type: Low Profile Hydraulic Dump Trailer
• GVWR: 14,000 lbs
• Trailer Weight: Approximately 4,180 lbs
• Payload Capacity: Approximately 9,820 lbs
• Axles: (2) 7,000-lb Premium Cambered Drop Axles with Quick-Lubricating EZ-Lube Hubs
• Brakes: Forward Self-Adjusting Electric Brakes on Both Axles
• Frame: Heavy-Duty 8" Seamless I-Beam with Integrated Tongue
• Crossmembers: 3" Channel on 16" Centers
• Floor: 10-Gauge Smooth Steel
• Sides: 48" Tall Solid Steel Sides

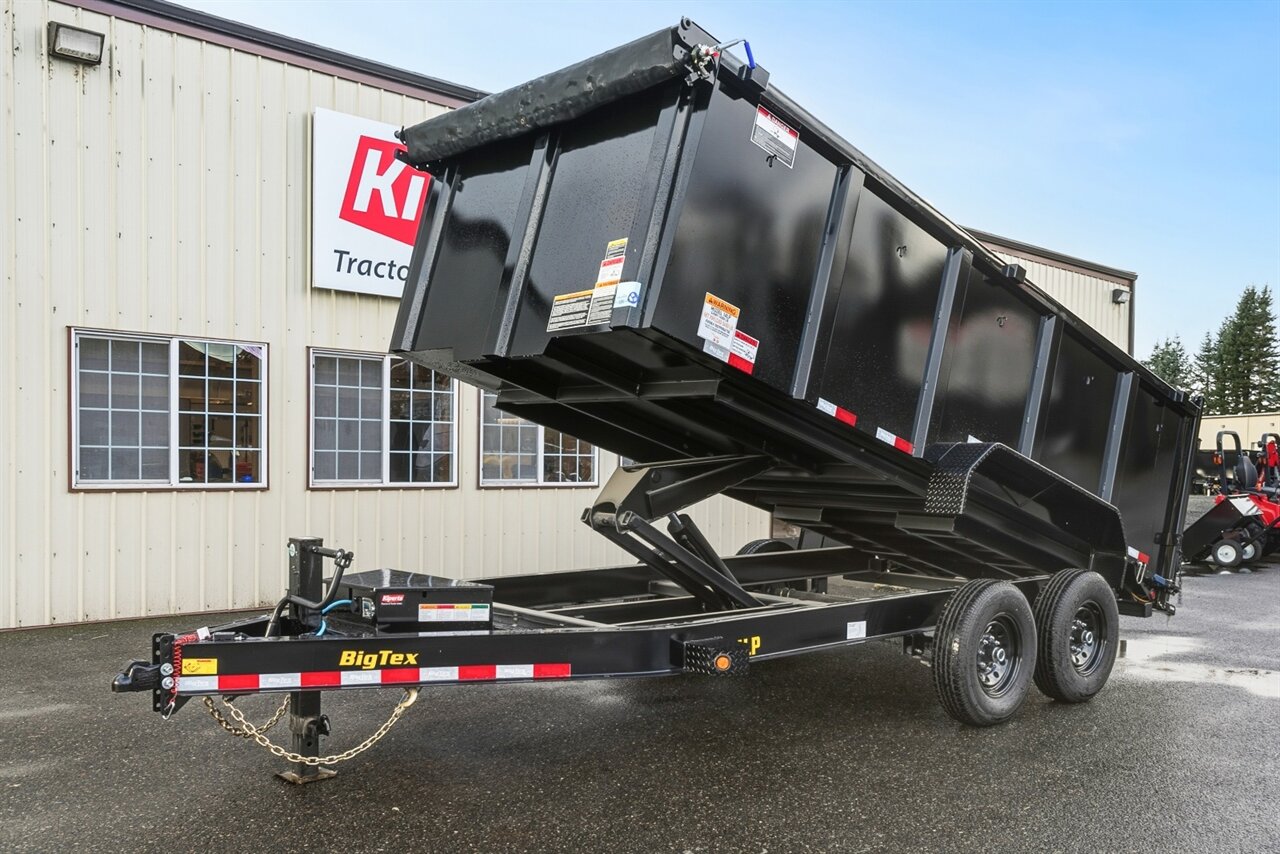

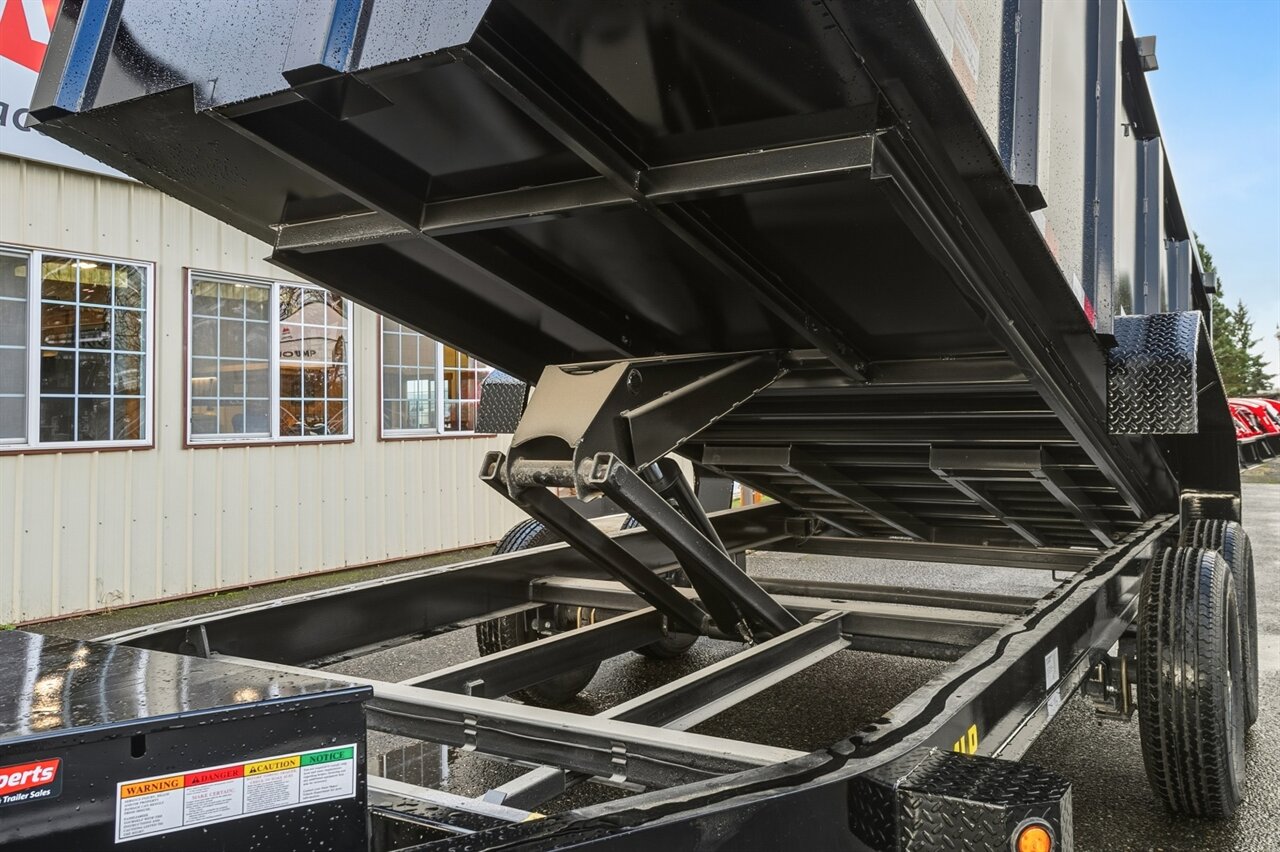

• Lift System: Self-Contained Electric/Hydraulic Scissor Hoist

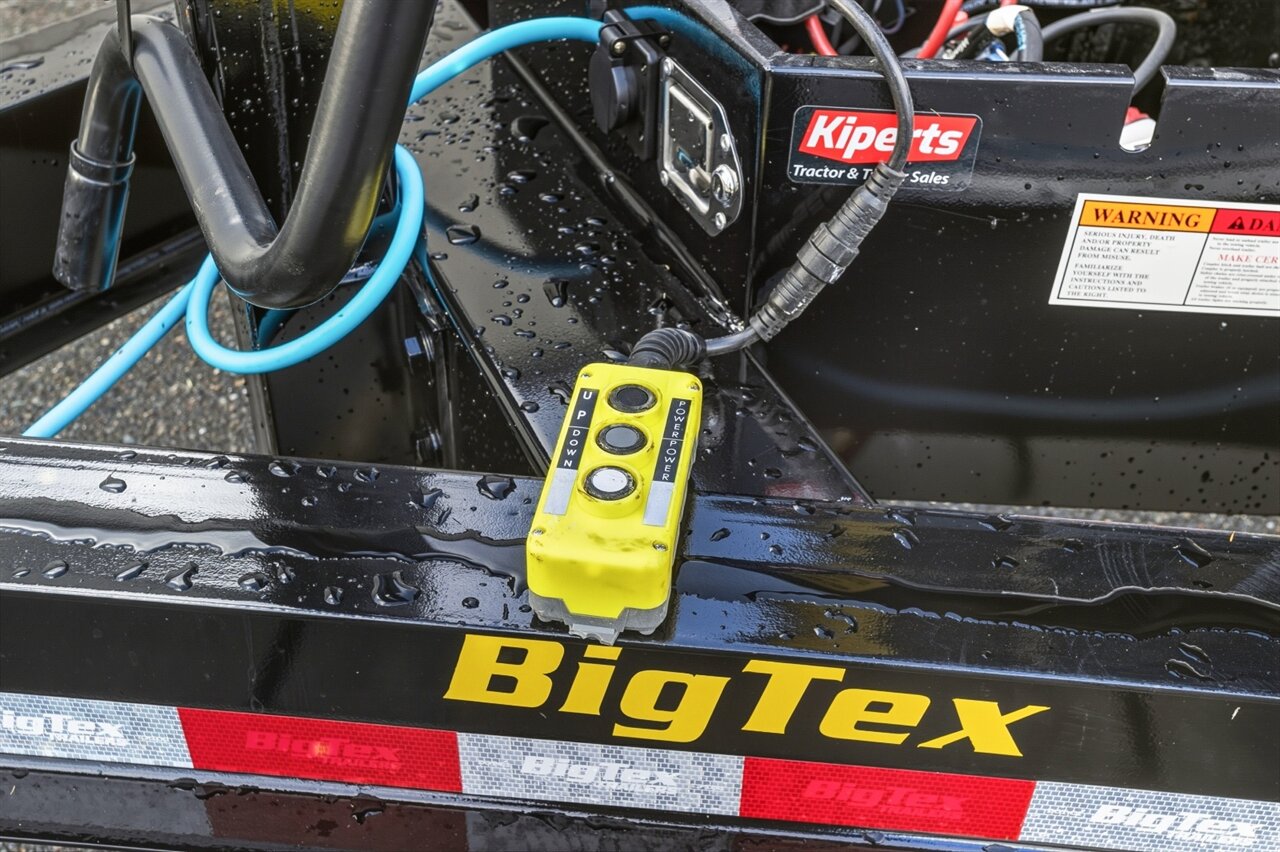

• Hydraulics: Power Up / Power Down / Gravity Down
• Coupler: Adjustable 2-5/16" Demco EZ Latch
• Jack: 12,000-lb Side-Wind Drop-Leg Jack
• Ramps: 6.5' Heavy-Duty Slide-In Equipment Ramps

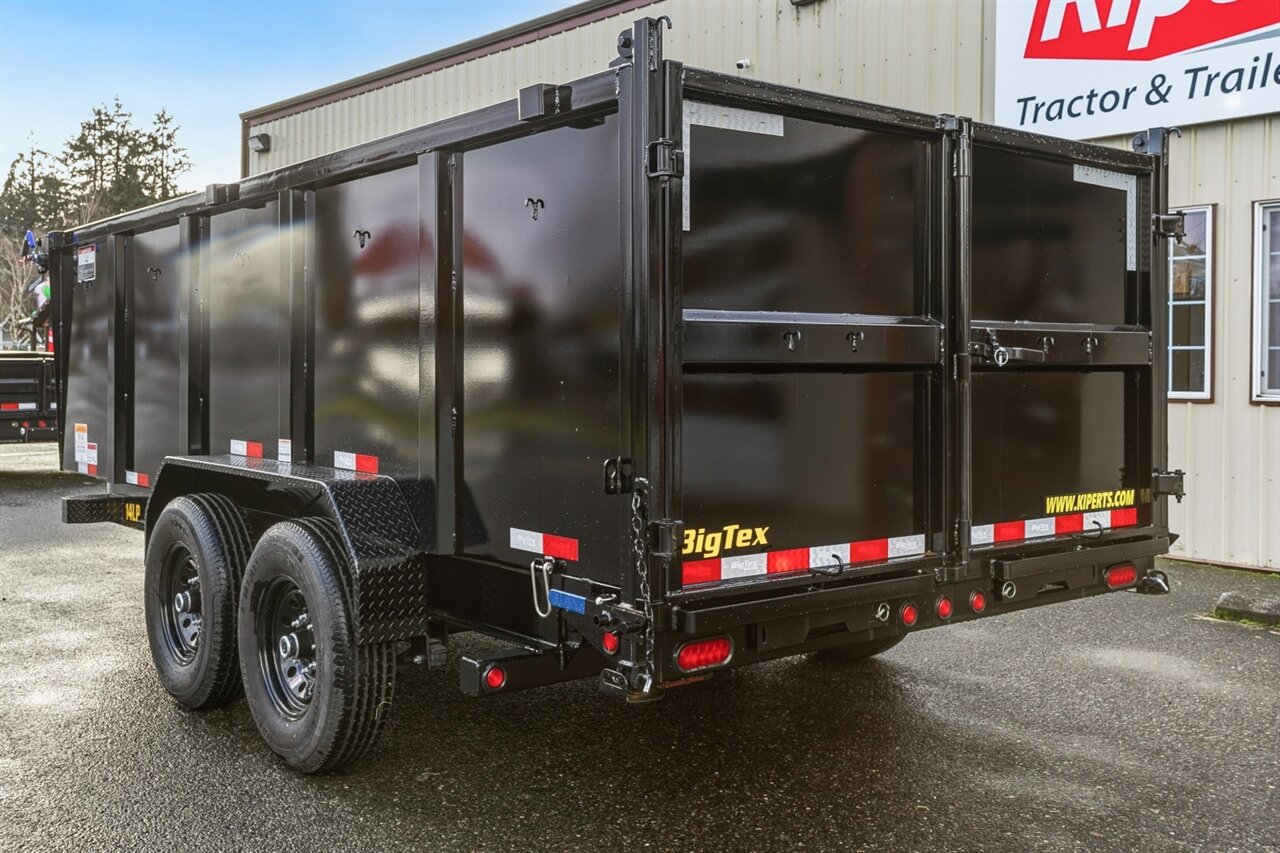

• Gate: Combination Barn Doors & Spreader Gate
• Tie Downs: (4) Heavy-Duty 1/2" D-Rings
• Rear Stabilizers: Heavy-Duty Rear Stabilizer Stands
• Battery: 12V Deep Cycle Battery with 110V Onboard Charger

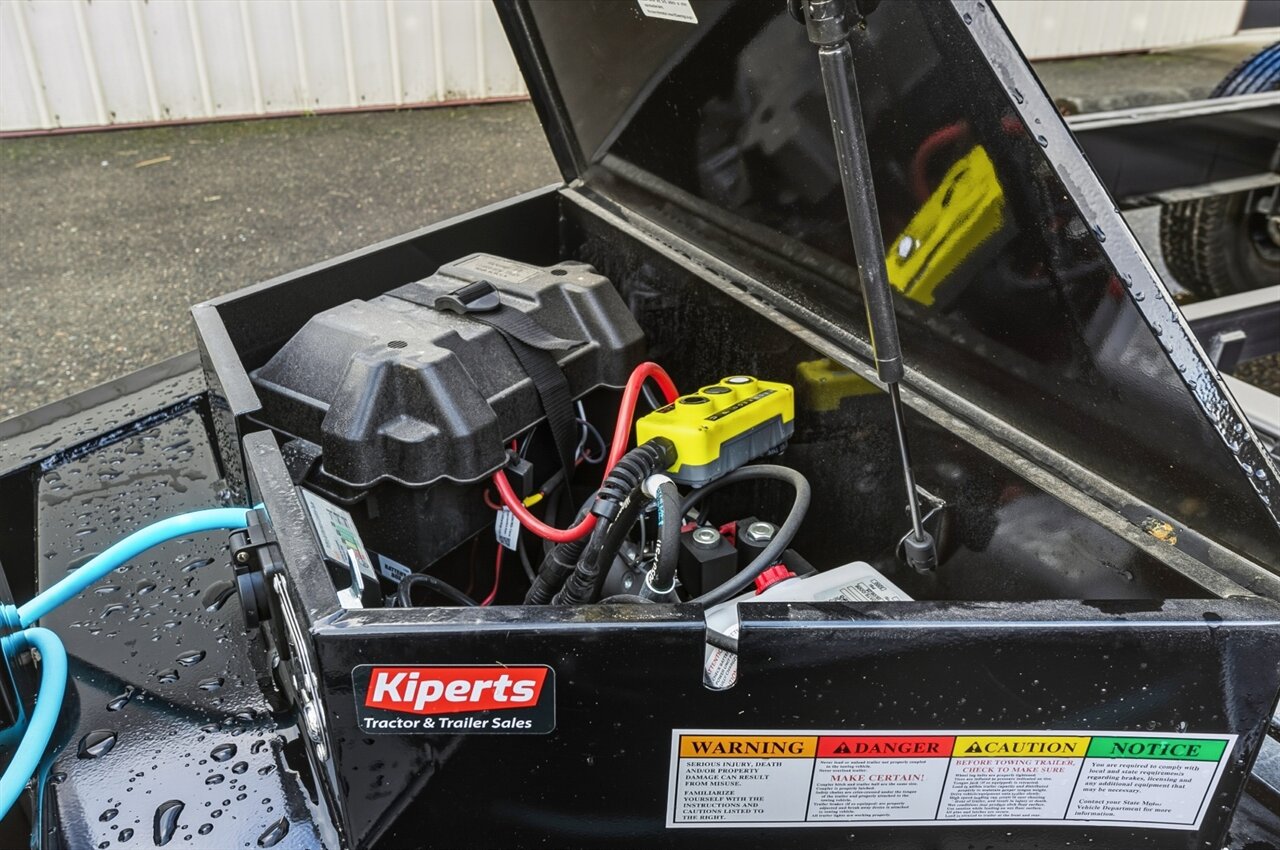

• Storage: Lockable Pump & Battery Box
• Lighting: Recessed Sealed LED Lighting
• Tires: ST235/80R16 Load Range E Radial Tires
• Finish: Professional Powder Coat with Primer
• Included: Roll Tarp System, Spare Tire Mount, Stake Pockets, Side Step, and J-Hooks for Cargo Control

Built for Heavy-Duty Productivity

The 14LP-14 is engineered to maximize productivity on every job. The 4-foot steel sides dramatically increase hauling volume, while the ultra-low deck height makes loading equipment safer and more efficient. The rear combination gate lets you either swing the doors open for unloading large debris or use the spreader function for controlled placement of gravel and aggregate. Rear stabilizer stands provide added confidence when loading heavy equipment, and the heavy-duty scissor hoist delivers smooth, dependable lifting power load after load.

With a 14,000-pound GVWR, an approximate empty weight of 4,180 pounds, and an impressive payload capacity of approximately 9,820 pounds, the 2027 Big Tex 14LP-14 7x14 14K Dump Trailer with 4' Sides is built to handle demanding commercial and agricultural applications with ease. Whether you're hauling construction materials, clearing land, or transporting equipment, this trailer delivers the rugged performance and long-term reliability professionals expect from Big Tex Trailers.
