New 2027 Big Tex 14FT-20 7' x 20' Heavy Duty Full Tilt Flatbed Trailer

The 2027 Big Tex 14FT-20 is a heavy-duty full-tilt equipment trailer designed to make loading and unloading machinery quick and easy — no ramps required. With a full 20' tilt deck, heavy-duty construction, and over 10,500 lbs of carrying capacity, the 14FT is an excellent choice for contractors, landscapers, farmers, equipment operators, and property owners.

With a 14,000 lb GVWR, approximate 3,490 lb empty weight, and approximately 10,510 lbs of carrying capacity, this trailer is ready to haul skid steers, mini excavators, compact tractors, scissor lifts, vehicles, mowers, and other equipment.

Full 20' Tilt Deck

Unlike a split-deck tilt trailer, the entire 20' deck tilts, giving you maximum usable loading space and eliminating the need for traditional equipment ramps.

The hydraulic-dampened tilt system provides smooth, controlled deck movement, while Big Tex's EZ Pedal locking mechanism makes operating the tilt deck convenient from the side of the trailer.

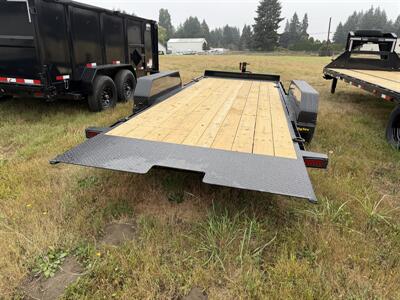

A low 12-degree tilt angle and diamond-plate rear knife edge provide a smooth transition from the ground onto the trailer, making the 14FT especially useful for loading low-clearance equipment.

Key Specifications

• Model: 2027 Big Tex 14FT-20
• Deck Size: 83" Wide x 20' Long
• Deck Type: Full Tilt
• GVWR: 14,000 lbs
• Empty Weight: Approx. 3,490 lbs
• Carrying Capacity: Approx. 10,510 lbs
• Axles: (2) 7,000 lb premium 4" drop axles
• Brakes: Forward self-adjusting electric brakes on both axles
• Suspension: Multi-leaf slipper spring with equalizer
• Tilt Angle: 12 degrees
• Tilt Operation: Hydraulic dampening with valve control
• Deck Lock: EZ Pedal locking mechanism
• Rear Loading Edge: Diamond-plate knife edge
• Floor: Treated pine
• Tie Downs: Heavy-duty D-rings
• Rub Rail: Full-length rub rail along both sides
• Coupler: Adjustable 2-5/16" Demco EZ Latch
• Tires: ST235/80R16 Load Range E radial tires
• Lights: LED
• Breakaway System: Complete breakaway system with charger
• Plug: 7-way RV
• Pull Type: Bumper Pull

Easy Ramp-Free Loading

The full-tilt design is what makes the 14FT-20 such a convenient equipment trailer. Instead of pulling out, positioning, and storing heavy ramps, simply release the deck and allow it to tilt to the ground for loading.

The 12-degree loading angle works well for a wide variety of wheeled and tracked equipment, including skid steers, mini excavators, compact tractors, scissor lifts, mowers, forklifts, and vehicles.

Heavy-Duty Equipment Hauling

With approximately 10,510 lbs of carrying capacity, the 2027 Big Tex 14FT-20 provides plenty of payload for demanding jobs while maintaining the maneuverability of a bumper-pull trailer.

The combination of a full 20' tilt deck, tandem 7K axles, hydraulic-dampened tilt system, and heavy-duty construction makes the 14FT-20 an excellent all-around equipment trailer for construction, landscaping, farming, rental fleets, and property maintenance.

GVWR: 14,000 lbs
Empty Weight: Approx. 3,490 lbs
Carrying Capacity: Approx. 10,510 lbs
Deck Size: 83" Wide x 20' Long

Empty weight and carrying capacity are approximate and may vary depending on installed options.
