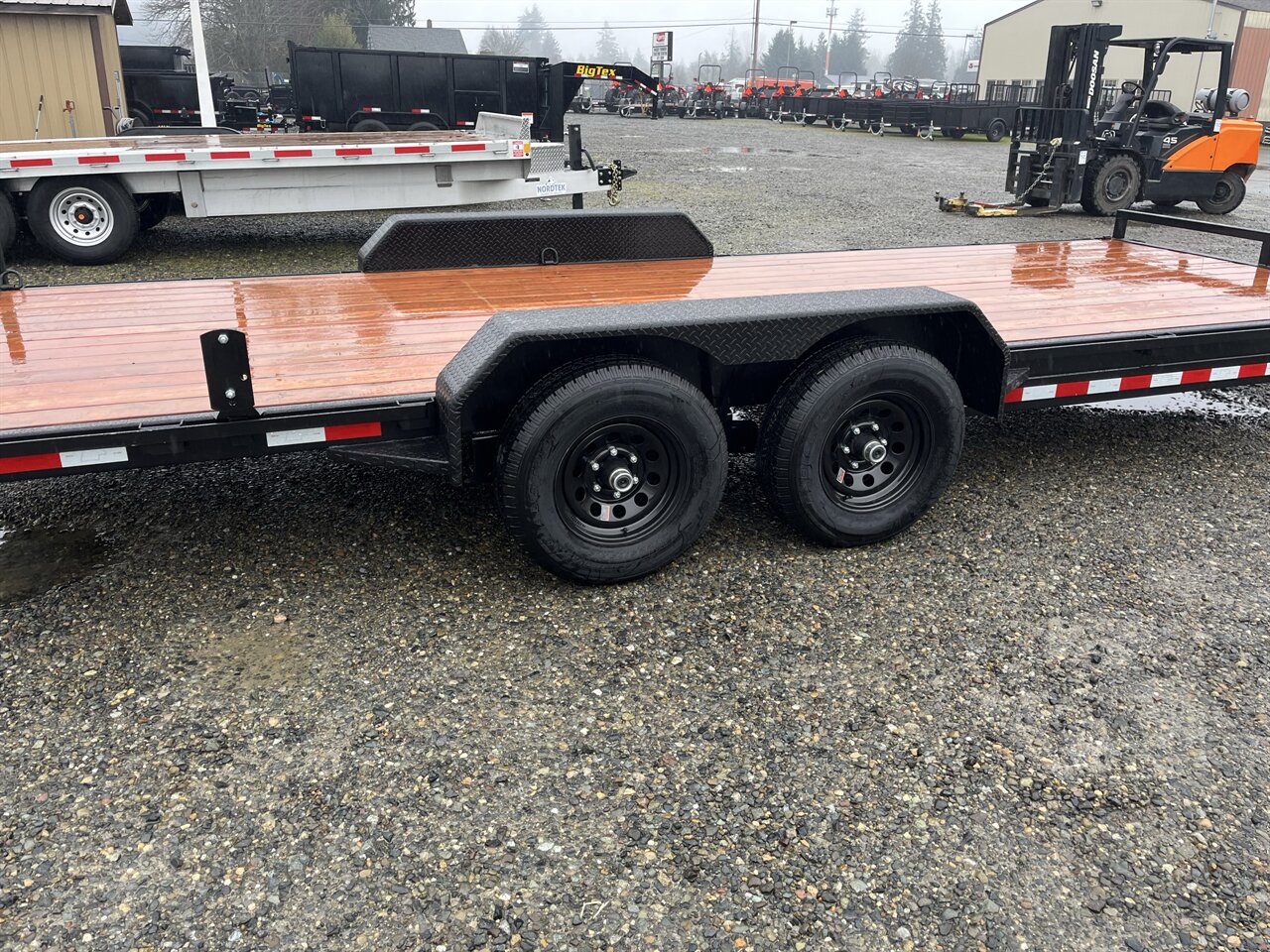

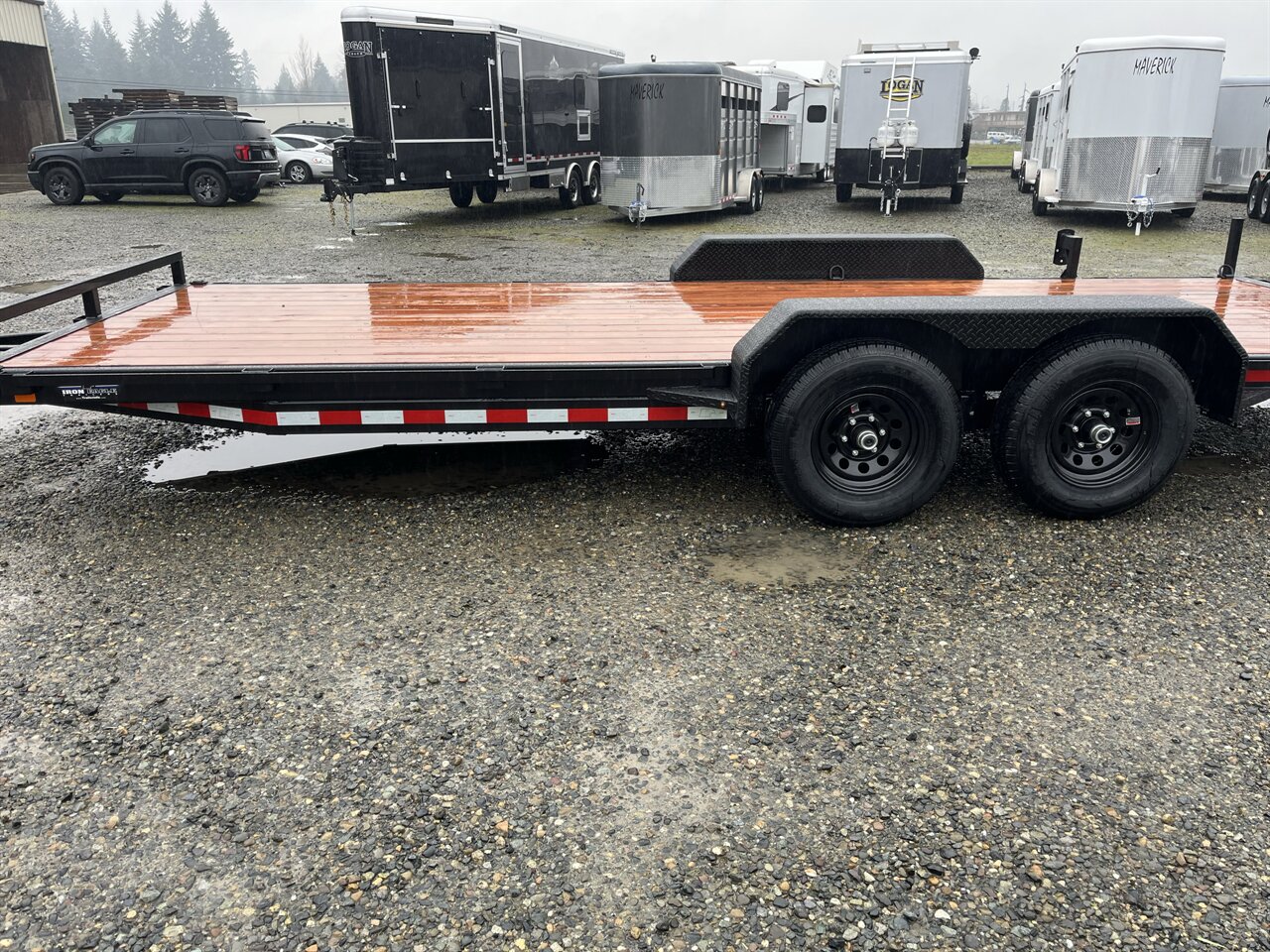

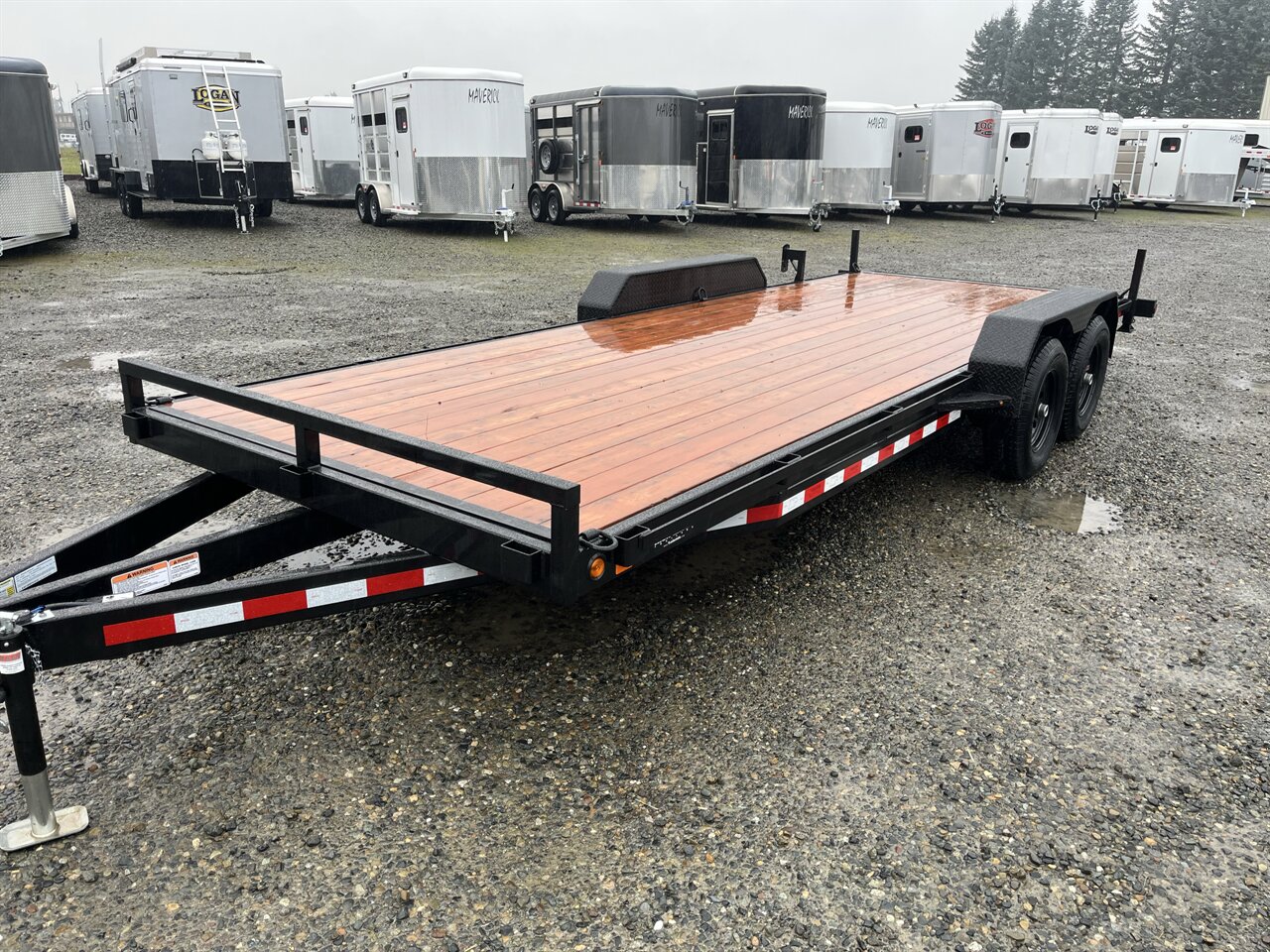

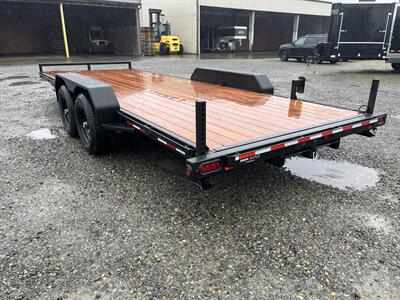

2026 Iron Eagle Trailers 7x20 10K Series Flatbed w/Ramps

2026 Iron Eagle Trailers 7x20 10K Series Flatbed w/Ramps

This 2026 Iron Eagle 7x20 10K Series flatbed with ramps is built to carry heavy loads while retaining straightforward, serviceable components. The factory-default configuration is designed for general-purpose hauling of equipment, vehicles, and materials, and includes the core features listed below.

Key specifications
- Deck size: 7 ft wide by 20 ft long (nominal deck dimensions).
- GVWR: 10,000 lb (10K series rating).
- Standard 2-5/16" heavy-duty coupler for 2-5/16" ball hitches (factory-standard for the 10K rating).

Frame and structure
- Fully welded all-steel tube main frame and tongue designed for heavy-duty use.
- Crossmembers and stringers sized and spaced by the factory to meet the 10K rating, welded to the main rails for a continuous load path.
- Factory deck typically finished with a treated wood secured to the crossmember structure.

Ramps and loading features

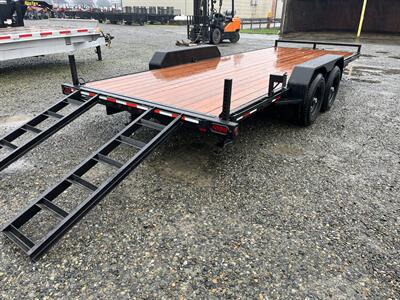

- Ramps are stored under the trailer when not in use

Axles, suspension and brakes
- Tandem axles rated for the 10K GVWR (factory-specified axles sized to meet rating).
- Electric brakes on both axles as supplied by the factory; typically includes a junction box and factory-installed brake assemblies.
- Leaf-spring suspension and axle equalization configured for even load distribution.

Wheels and tires
- Heavy-duty radial tires mounted on factory wheels appropriate to the GVWR.
- Lugs and hubs sized to the axle rating and equipped with factory grease fittings and caps.

Coupler, jack and chains
- Factory-installed adjustable or fixed-length tongue with a heavy-duty 2-5/16" coupler sized to the GVWR.
- Drop-leg or swivel tongue jack installed at the factory to facilitate hitching and stabilizing the trailer.
- Safety chains (grade-rated) installed at the coupler area to meet towing safety standards.

Electrical and lighting
- LED sealed tail/stop/turn lights and side marker lights installed to DOT specifications.
- Factory wiring harness with a 7-way RV-style connector (or manufacturer-specified connector) for plug-in to the tow vehicle.
- Breakaway battery and switch system factory-installed where required by regulation; battery and box mounted per factory standard.

Finish and corrosion protection
- Factory-applied finish, typically a paint over primer, applied to prepared bare metal to protect from corrosion.
- Welds and high-wear areas treated and finished at the factory to resist chipping and rust during normal use.

Tie-downs and accessory points
- Factory-installed stake pockets, rub rail, around the deck perimeter for securing loads (exact configuration varies by model/option but basic tie-down provisions are standard).

Fenders
- Steel or formed fenders installed over tandem axles to protect tires and cargo.
- Rear license plate bracket and light, reflectors, and DOT-compliant markings installed at the factory.

Trailer weight: 2,334#
