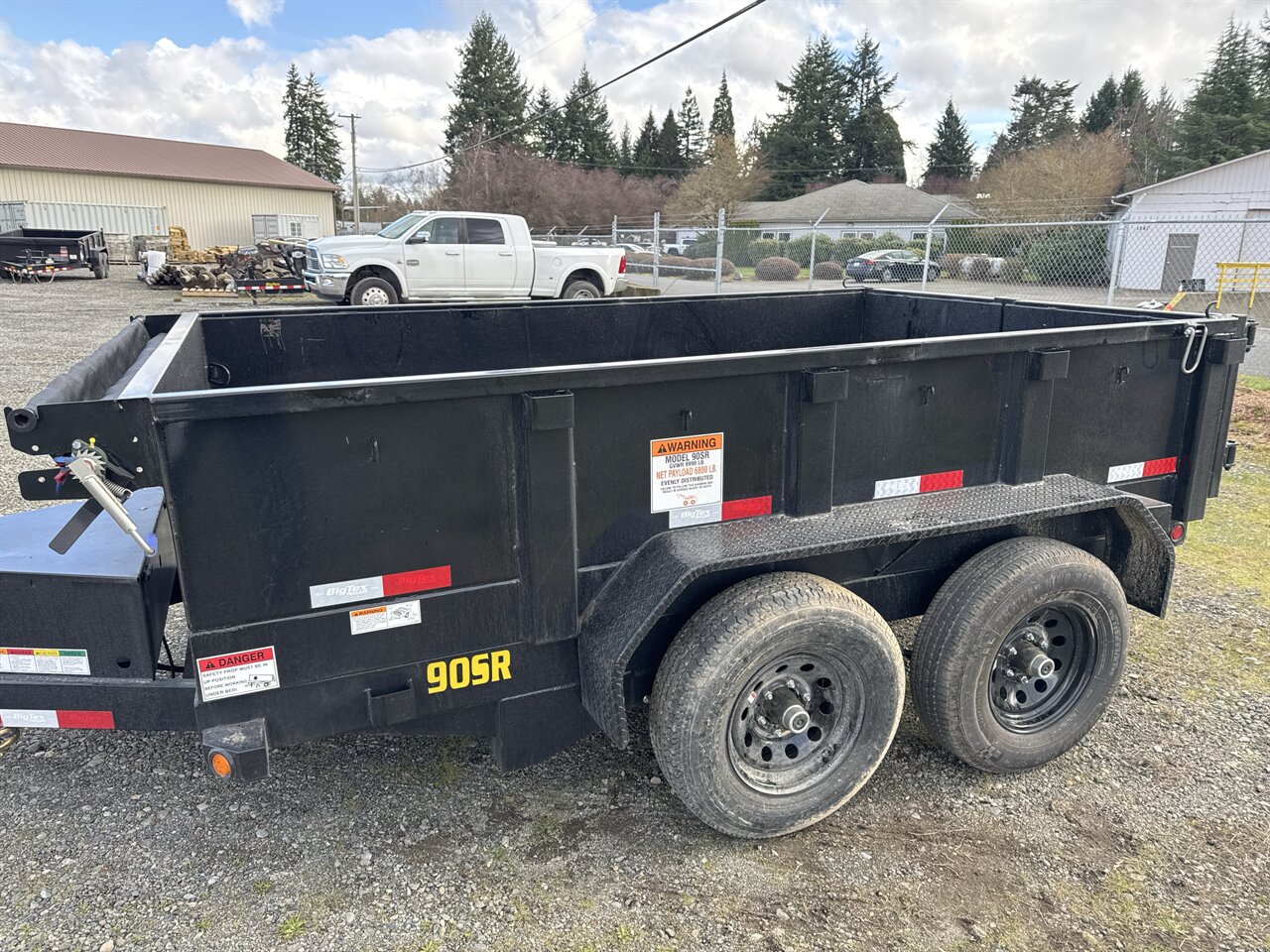

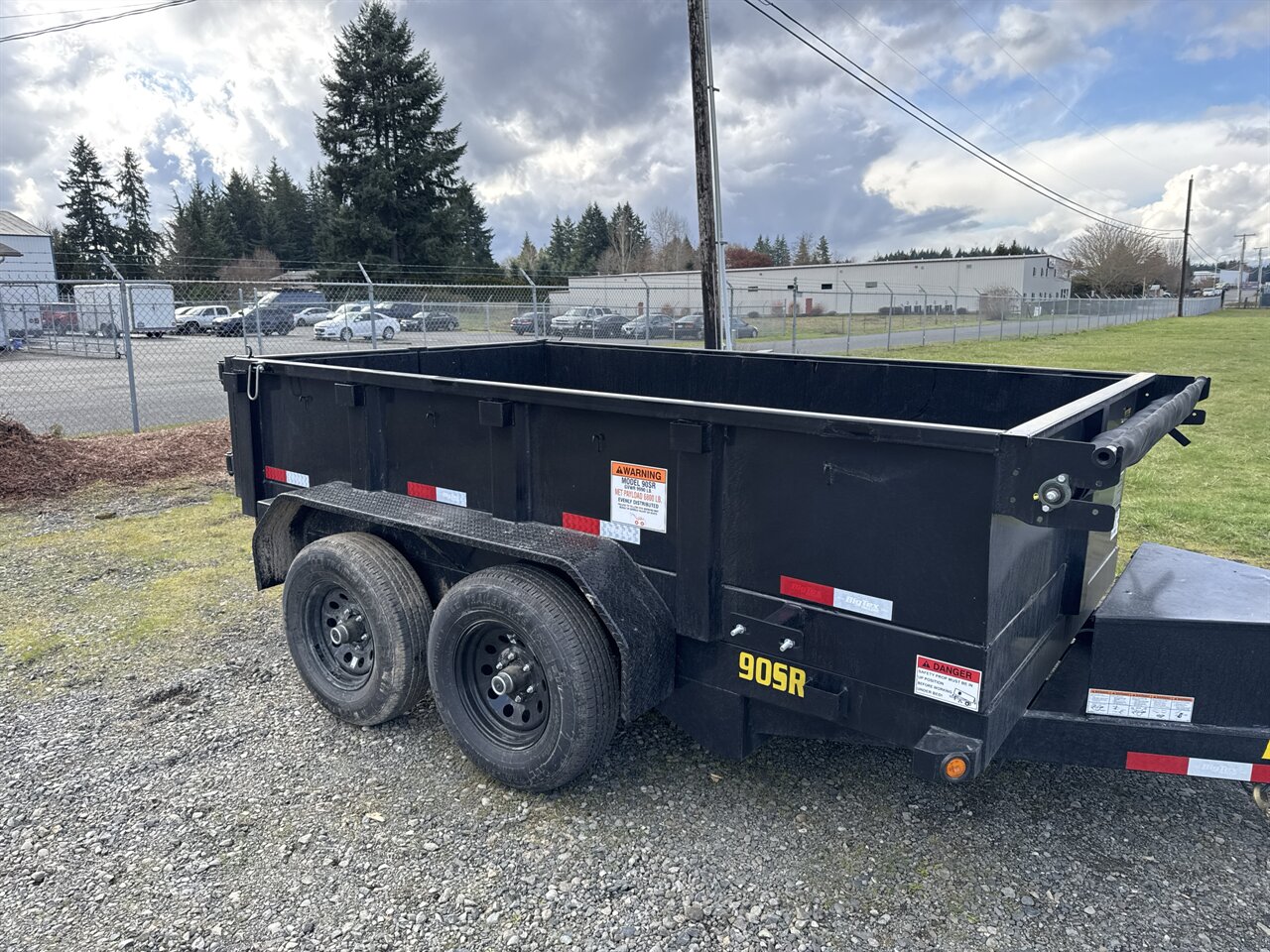

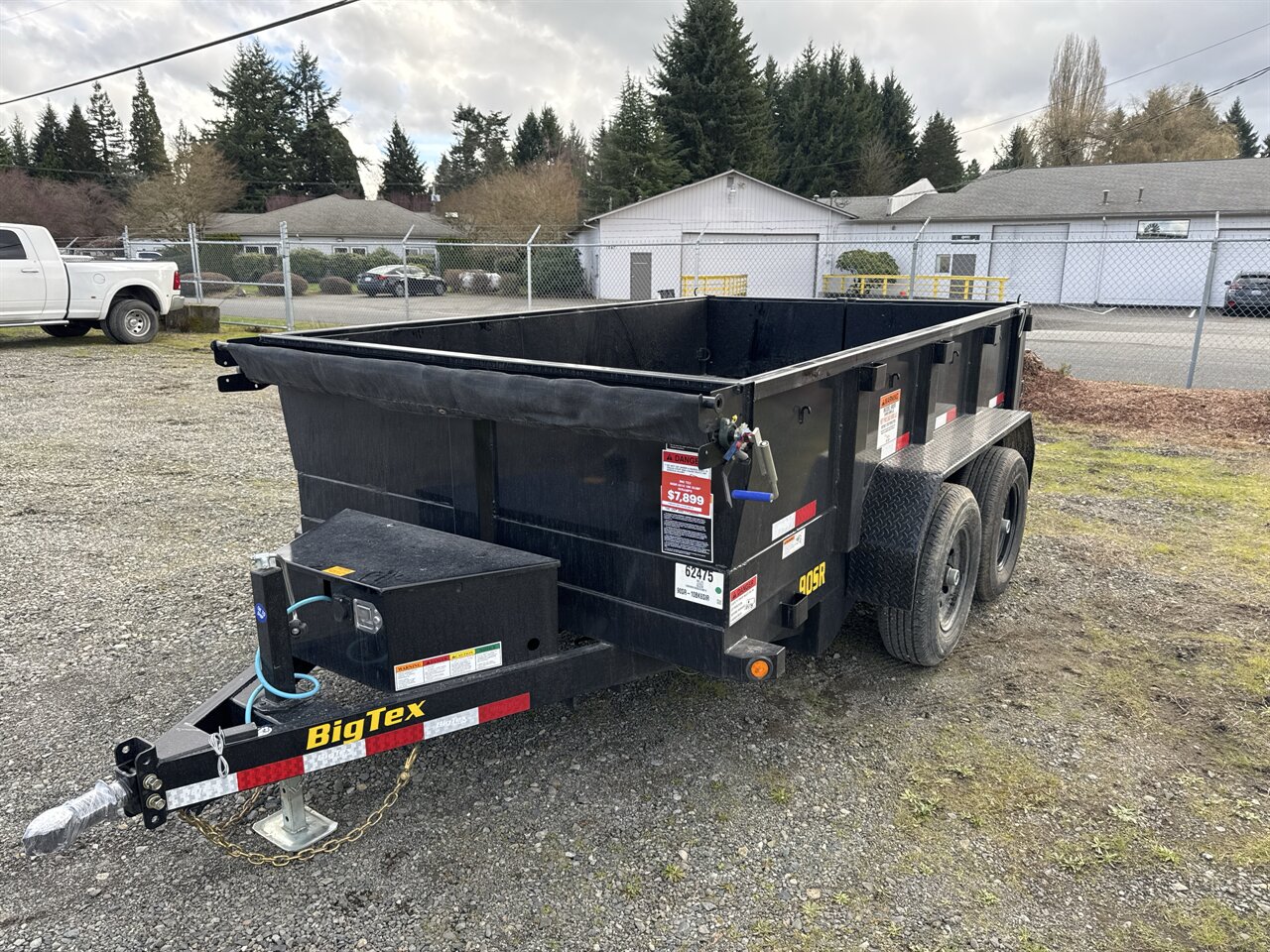

2026 Big Tex Trailers 90SR 6x10 Dump Trailer w/Tarp & Ramps

The Big Tex 90SR is a heavy-duty, tandem axle dump trailer with a 9,990 lb GVWR, featuring a 12-gauge steel floor/sides, 6x2" tubing frame, single-ram hydraulic lift, 20" side height, double rear gates, and optional ramps, suitable for hauling materials like dirt, gravel, or small tractors, with standard electric brakes, LED lights, and a 12V battery system.
Key Specifications (Varies Slightly by Length - 10' or 12')
GVWR: 9,990 lbs
Empty Weight: Around 2,930 lbs (12ft) or 2,750 lbs (10ft)
Payload Capacity: Around 7,060 lbs
Bed Dimensions: 72" wide (6 ft) by 10' or 12' long
Side Height: 20"
Floor: 12 Gauge Smooth Steel
Frame: 6" x 2" Rectangular Tubing (instead of channel)
Axles: (2) 5,200# Premium, Cambered Axles with Electric Brakes
Suspension: Multi-Leaf Slipper Spring with Equalizer
Lift System: Single-Ram (Power Up/Power Down)

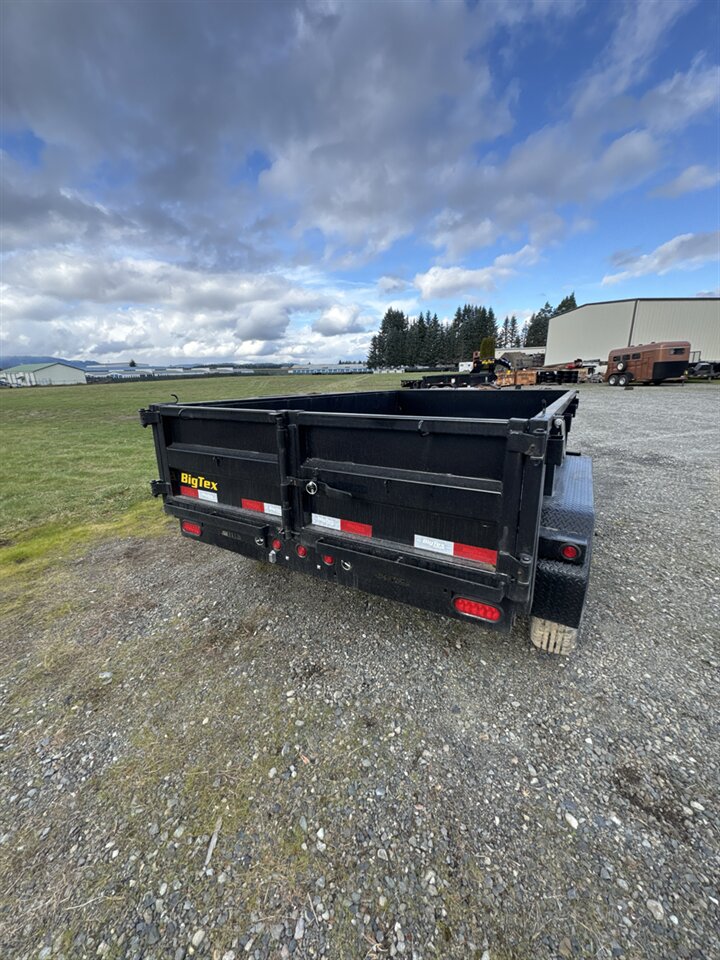

Doors: Double Rear Doors
Fenders: 9" x 72" Diamond Plate, Double Square Broke
Lighting: Recessed, Grommet-Mounted LED
Battery: 12V Deep Cycle with Onboard Charger
Jack: 7,000# or 8,000# Top Wind Drop Leg
Key Features
Durable Construction: Heavier frame and floor than lighter-duty models.
Convenient Loading: Double rear gates and optional ramps.
Secure Storage: Lockable pump and battery box.
Enhanced Control: Stake pockets and D-rings for tie-downs.
Easy Maintenance: Self-adjusting electric brakes and quick-lube hubs.

Empty weight: 2750lbs
Carrying weight: 7240lbs
