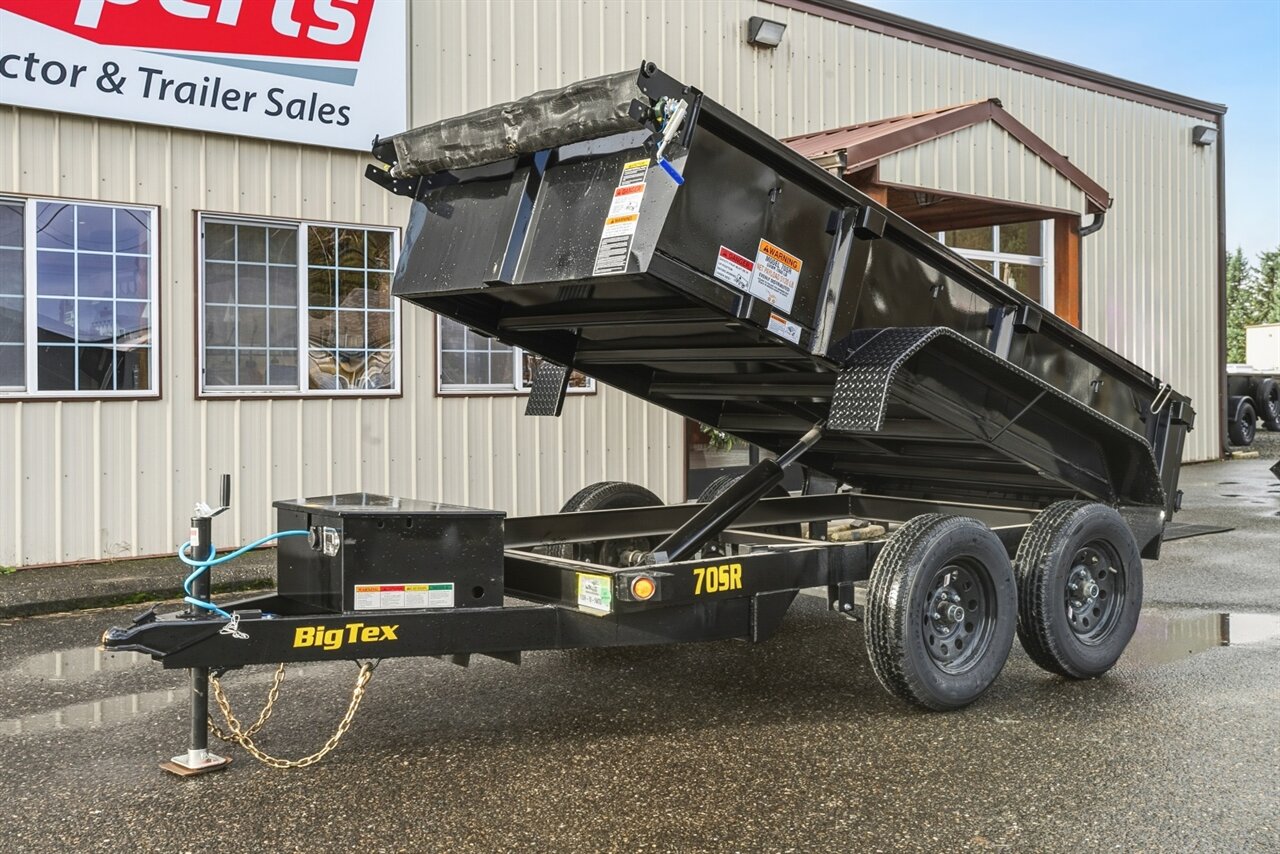

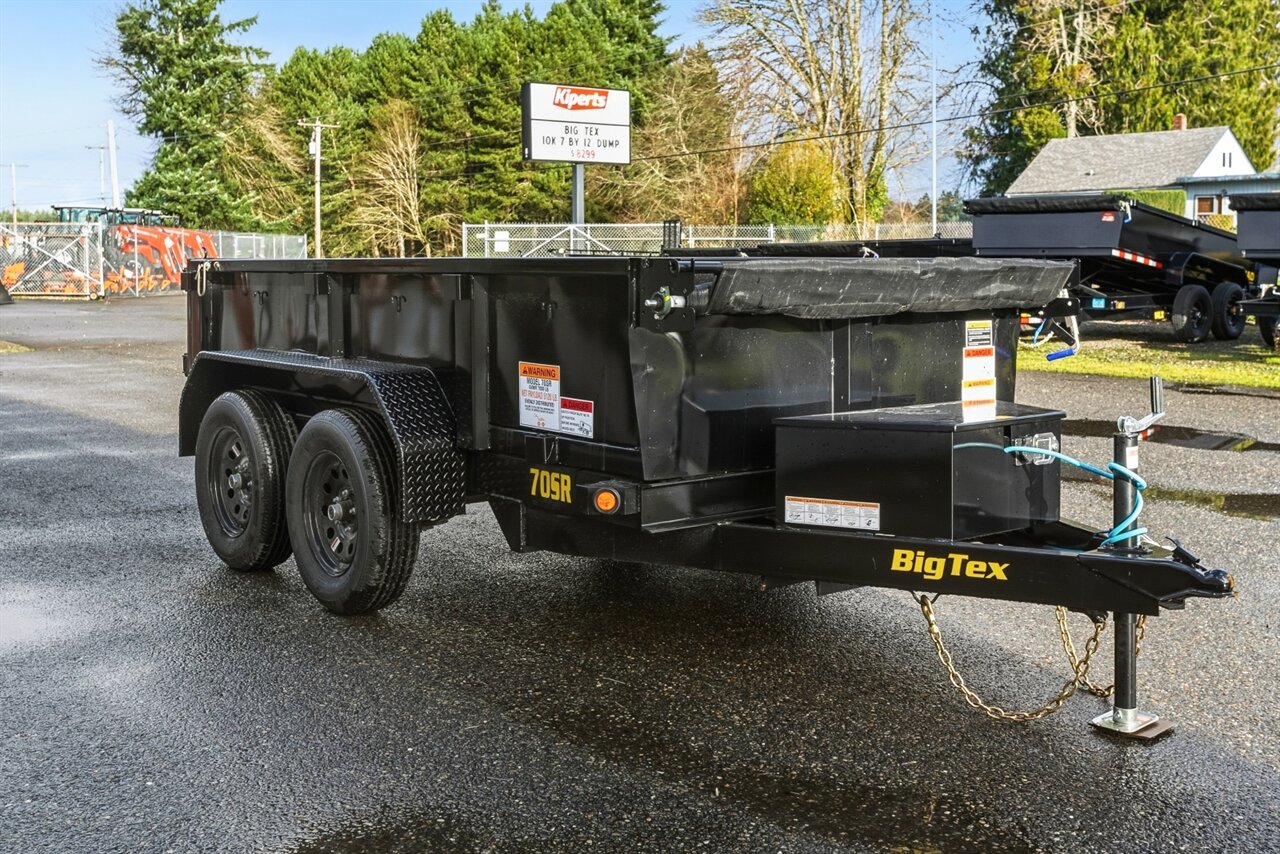

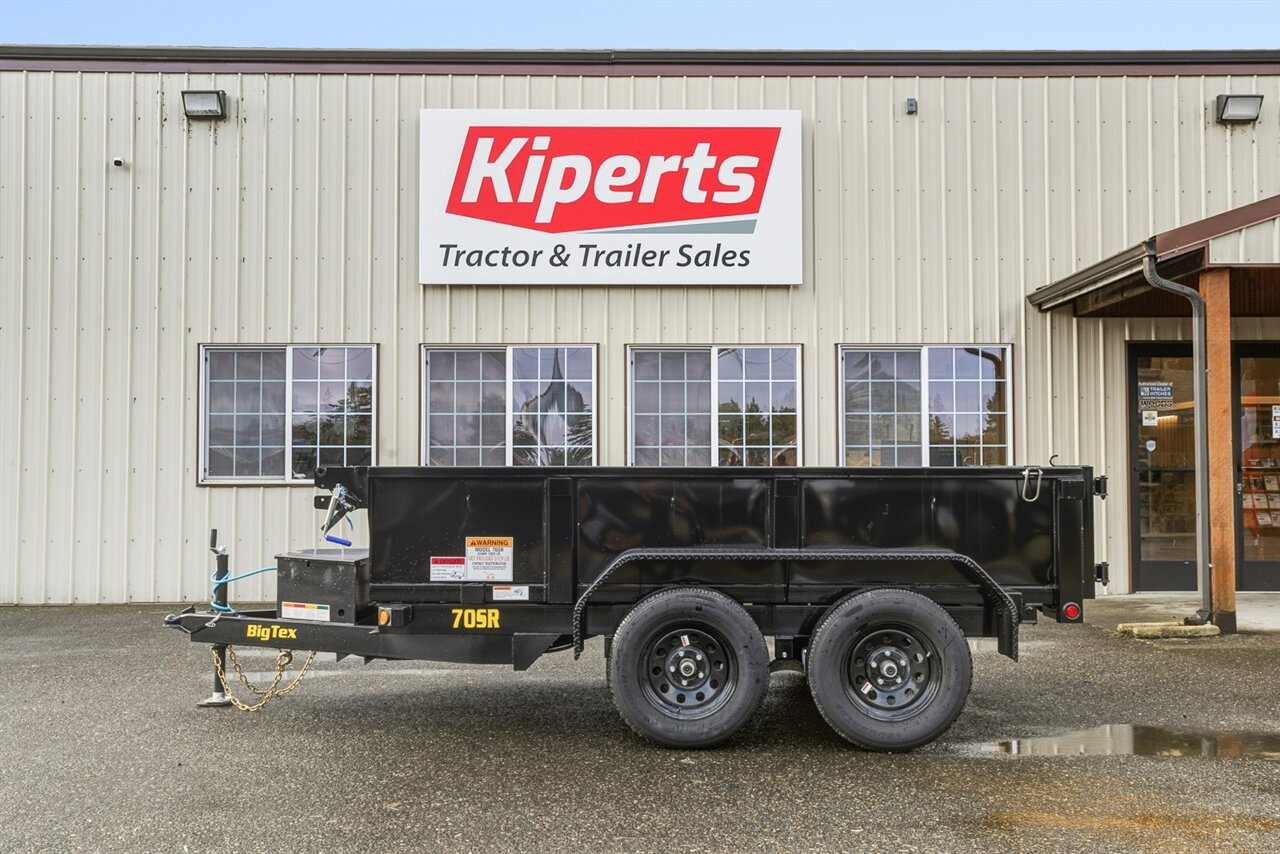

2026 Big Tex Trailers 70SR 70SR-10-5WDD 7K 5x10 Dump Trailer

The Big Tex 70SR is a light-duty, 7,000 lb GVWR single-ram dump trailer, typically 5x10 feet, designed for residential or farm use, featuring a 16-gauge steel bed, 5" channel frame, tandem 3,500 lb axles with electric brakes, a power-up/power-down hydraulic lift, a 12V deep-cycle battery with onboard charger, and double rear gates, offering around 5,270 lbs of payload capacity for materials like dirt and mulch.
Key Specifications
GVWR (Gross Vehicle Weight Rating): 7,000 lbs.
Empty Weight: ~1,730 lbs.
Payload Capacity: ~5,270 lbs
.
Bed Size: 5 ft x 10 ft (60" x 10').
Axles: Tandem 3,500 lb axles with electric brakes.

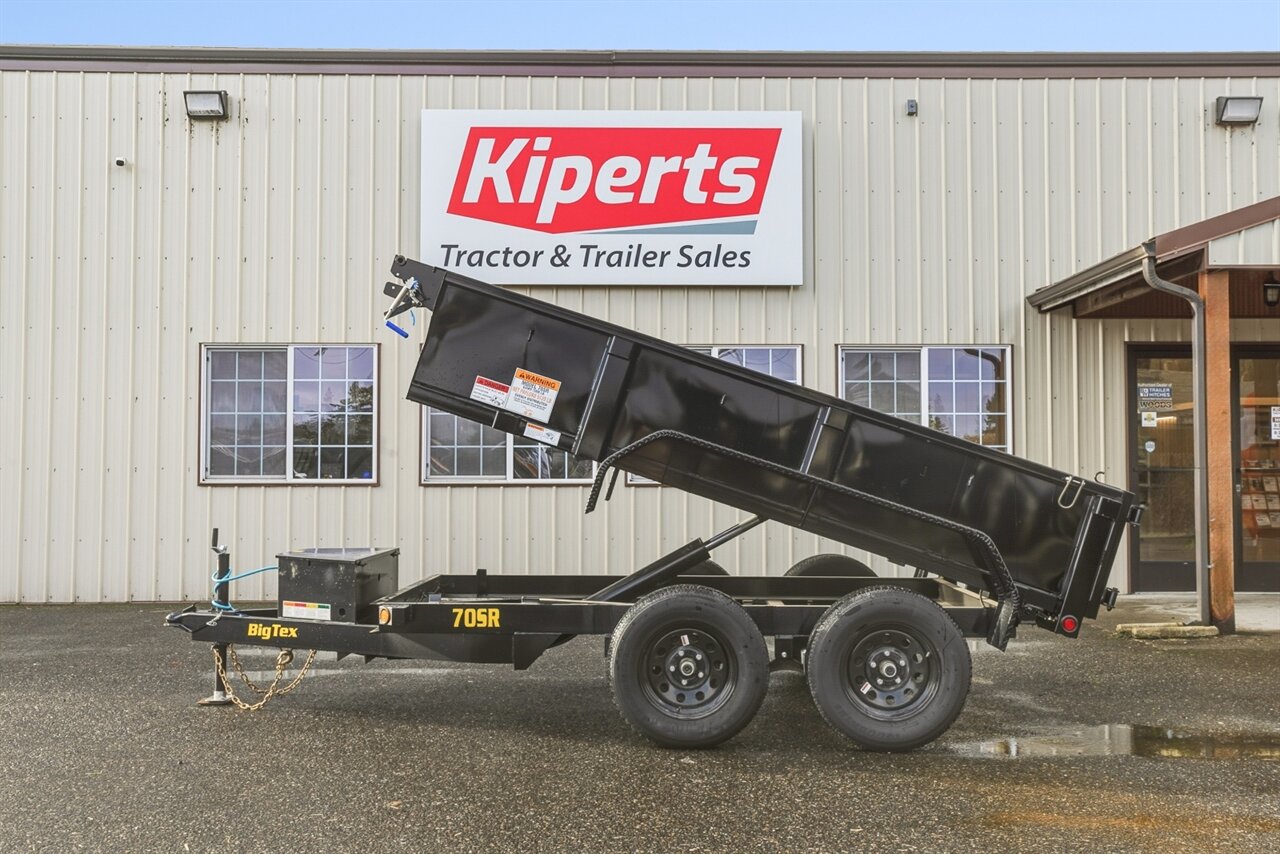

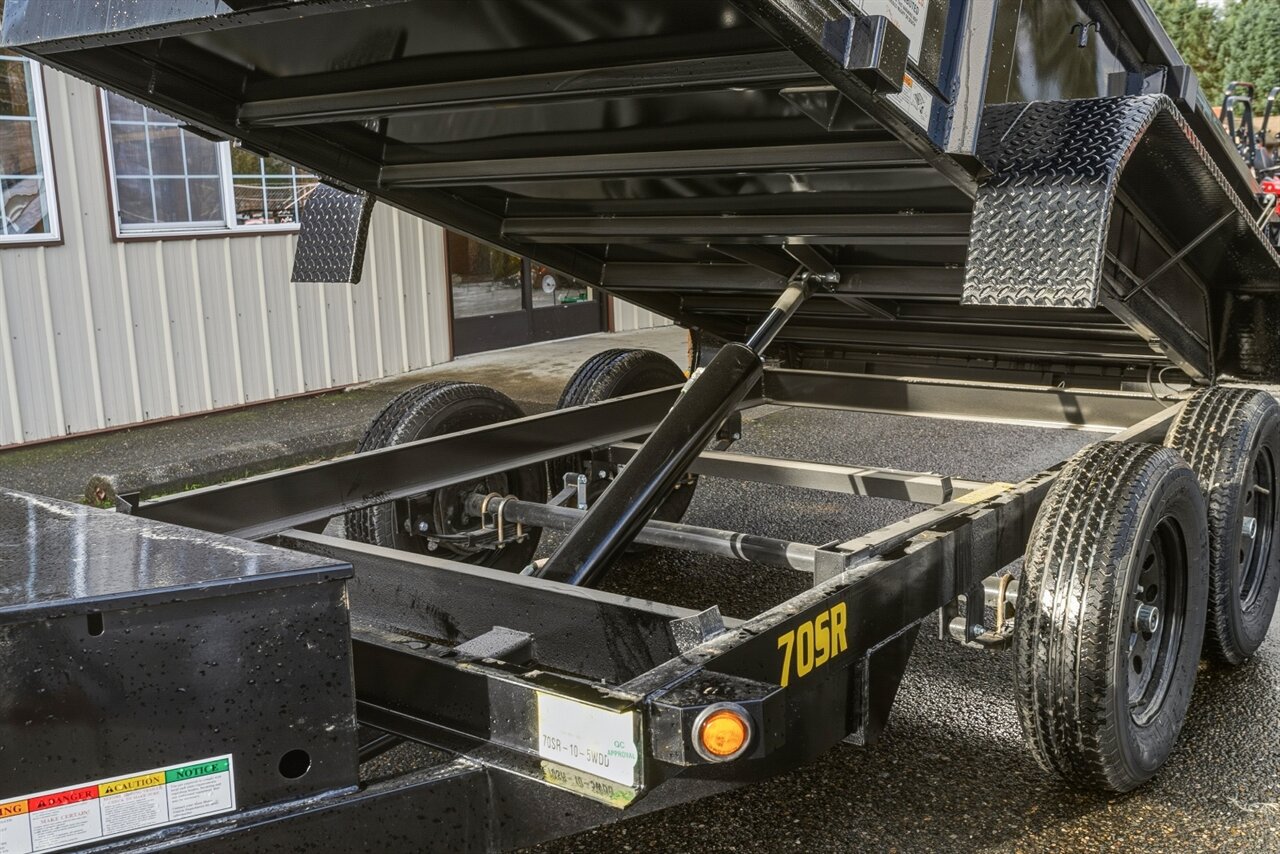

Lift System: Single Ram, Power Up/Power Down.
Battery: 12V Deep Cycle with 110V onboard charger.
Sides: 20" high, 16-gauge steel.
Floor: 16-gauge smooth steel.
Frame: 5" channel.
Fenders: 14 gauge diamond plate or roll-formed.

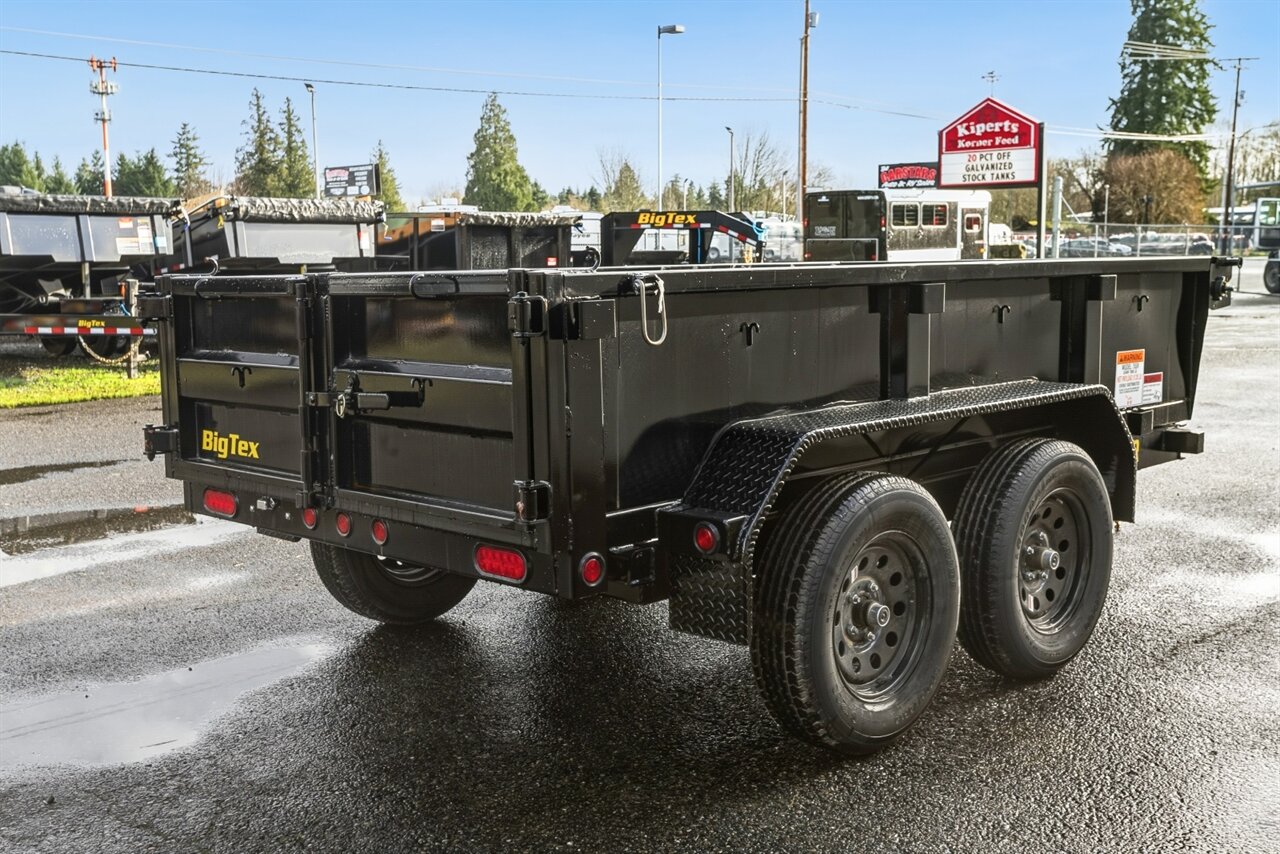

Gate: Double rear doors (spreader/combo).
Tires: ST205/75R15 Load Range C (5-lug).
Lighting: Recessed, grommet-mounted LED.
Features & Design
Ideal Use: Homeowners, farms, hauling mulch, dirt, gravel.

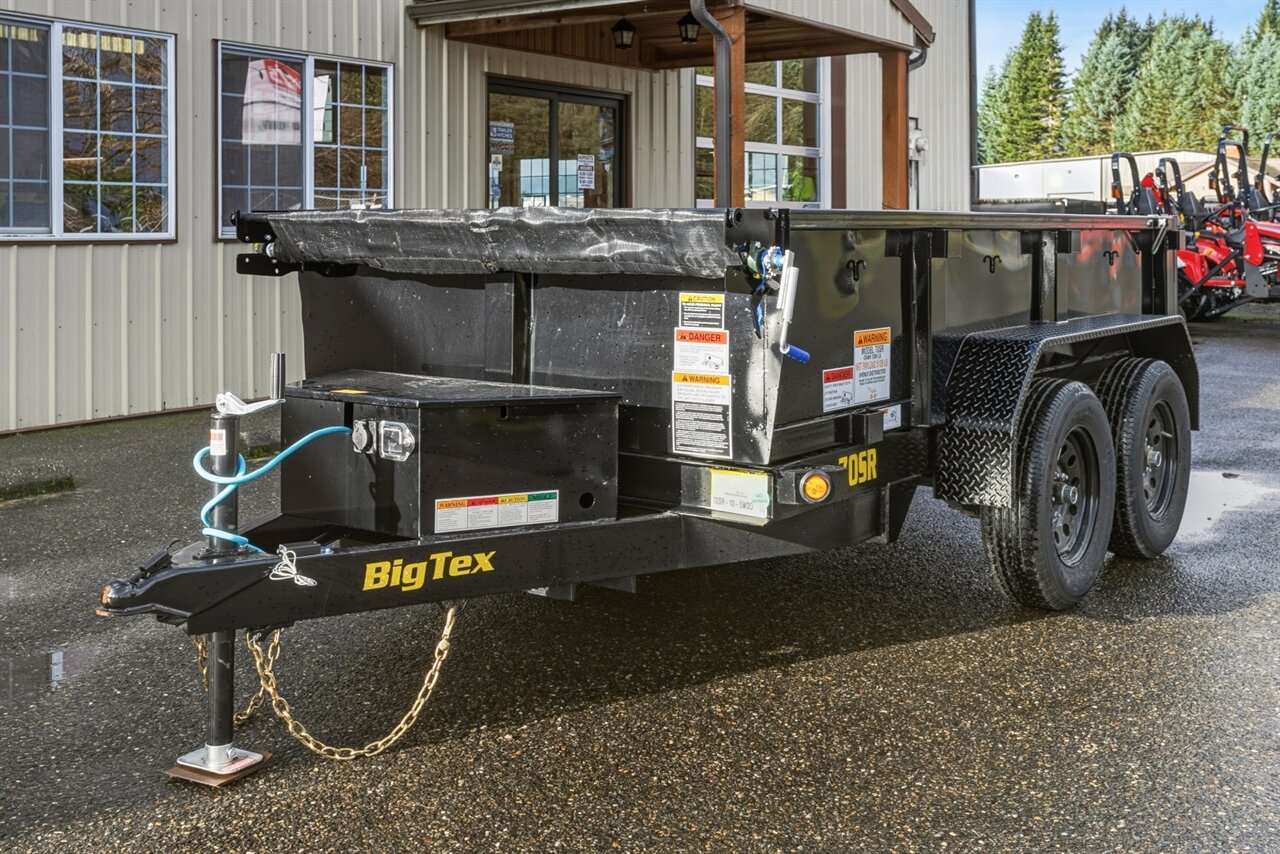

Components: Lockable pump/battery box, 7-way RV plug, 2-5/16" coupler, 2,000 lb top-wind jack.
Not Included: Ramps
