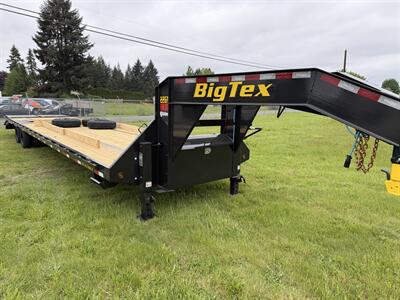

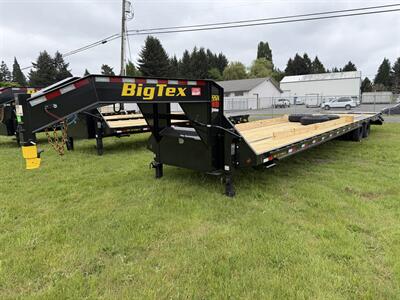

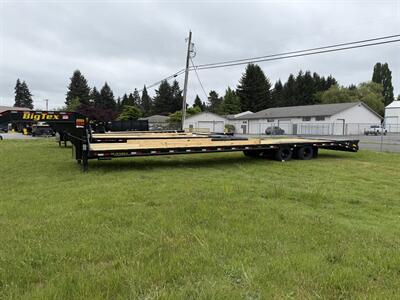

2026 Big Tex Trailers 22GN-40D5A 23.9K 35+5 Flatbed Gooseneck w/Mega Ram

The 2026 Big Tex 22GN-40 35+5 Flatbed Gooseneck with Mega Ramps is built for serious heavy-duty hauling, combining a low-profile pierced I-beam frame with tandem dual-wheel axles and spring-assisted mega ramps for easy equipment loading. Designed for contractors, farmers, and commercial haulers, this trailer delivers excellent stability, strength, and loading versatility for skid steers, tractors, excavators, and other heavy machinery.

Key Specifications

• Model: Big Tex 22GN-40D5A-MRBK
• Trailer Length: 35’ flat deck + 5’ dovetail
• Overall Length: 40’
• Width: 102” wide deck
• GVWR: 23,900 lbs
• Empty Weight: Approximately 8,790–8,920 lbs
• Payload Capacity: Approximately 14,980–15,110 lbs
• Axles: Tandem 10,000 lb dual-wheel electric brake axles
• Suspension: Heavy-duty adjustable suspension

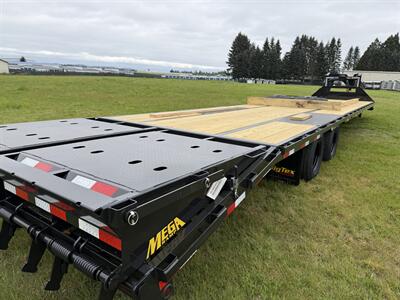

• Ramps: 5’ spring-assisted Mega Ramps
• Frame: 12” low-profile pierced I-beam frame
• Flooring: Treated wood deck

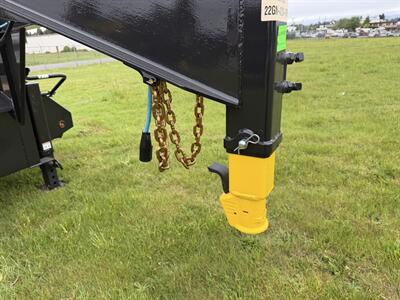

• Coupler: Adjustable 2-5/16” gooseneck coupler
• Lighting: Full LED lighting package

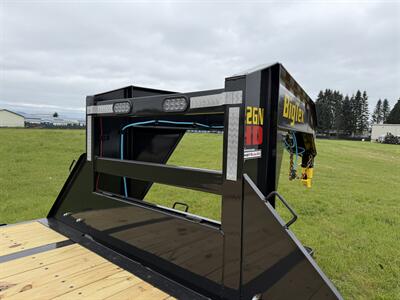

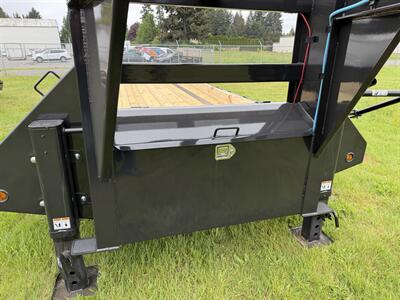

• Extras: Front toolbox, chain spools, stake pockets, rub rail, dual landing gear, integrated work lights

The 22GN series is engineered for durability and easier loading thanks to its low deck height and mega ramp system, making it ideal for loading low-clearance equipment safely and efficiently.
