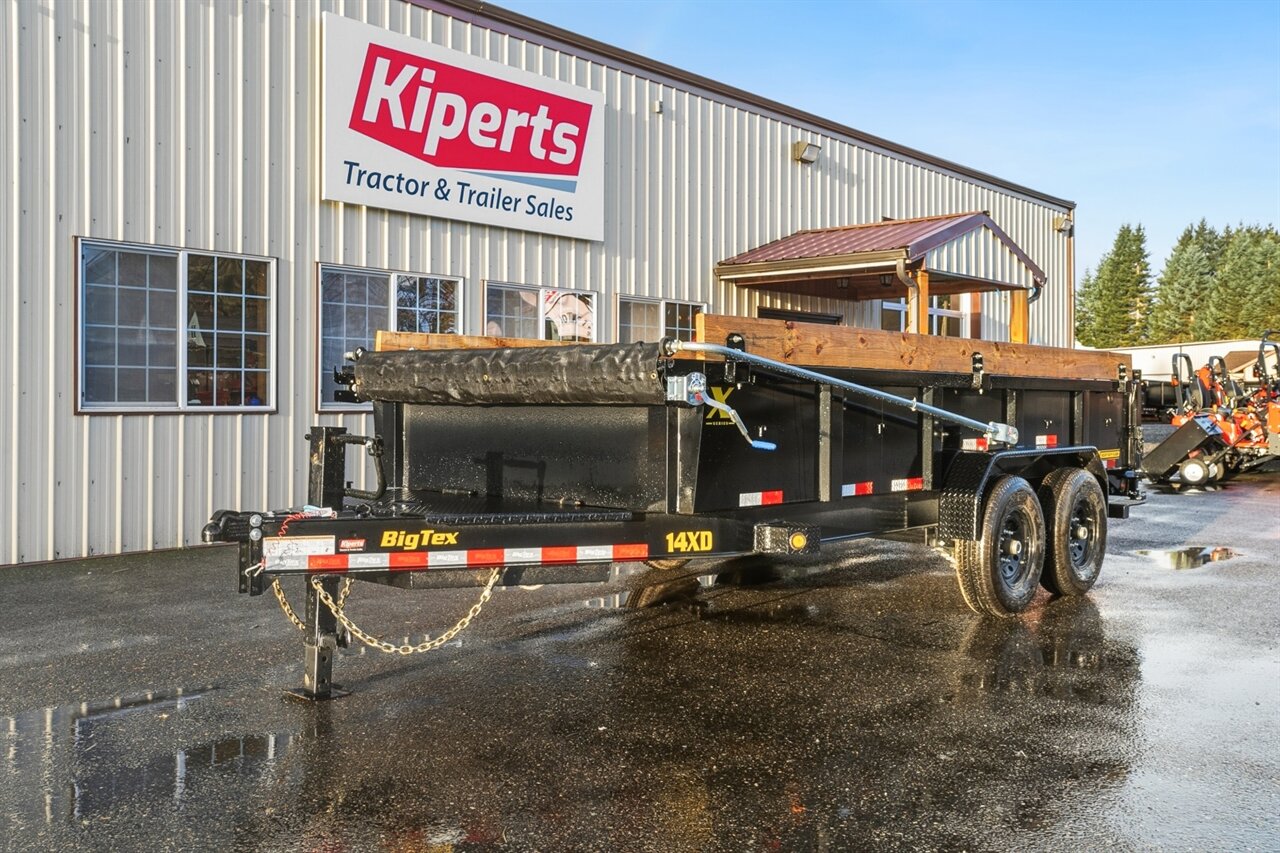

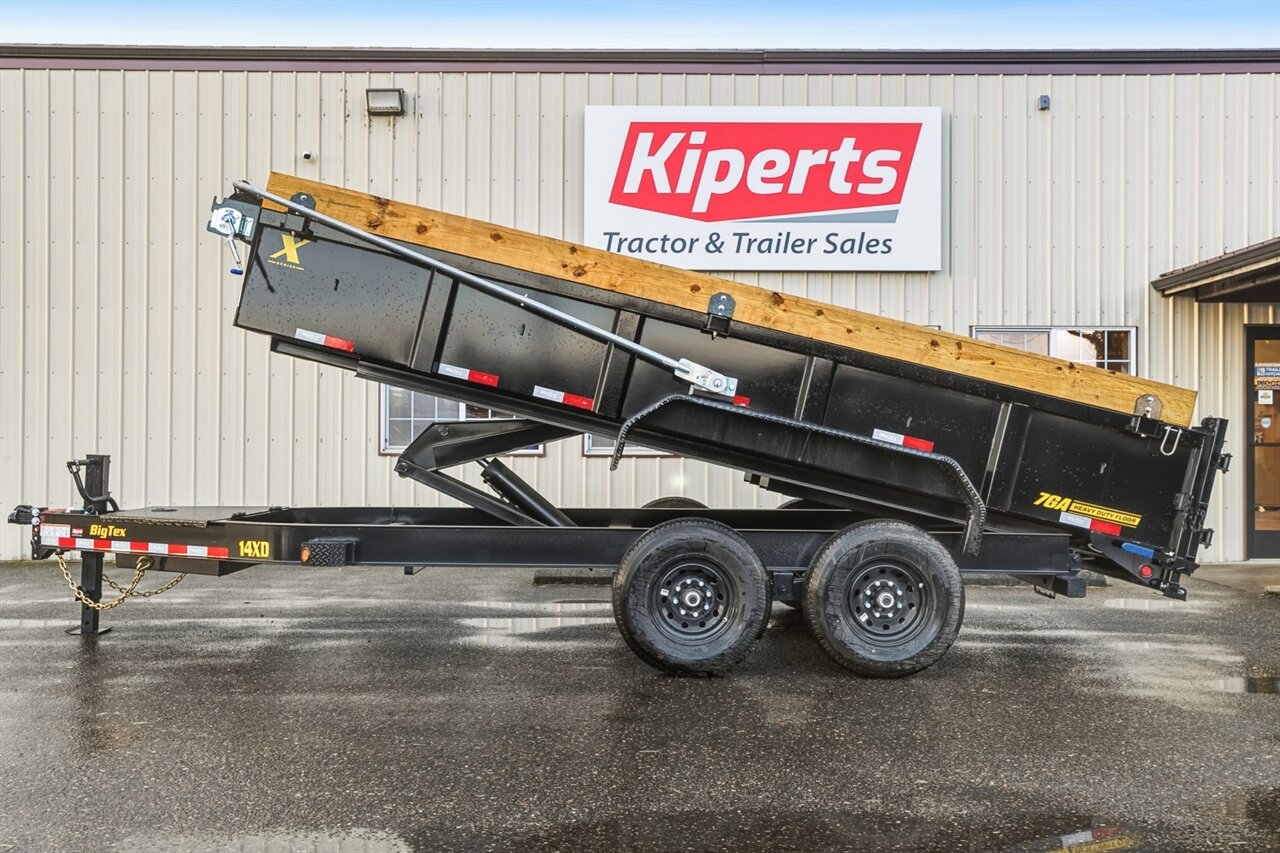

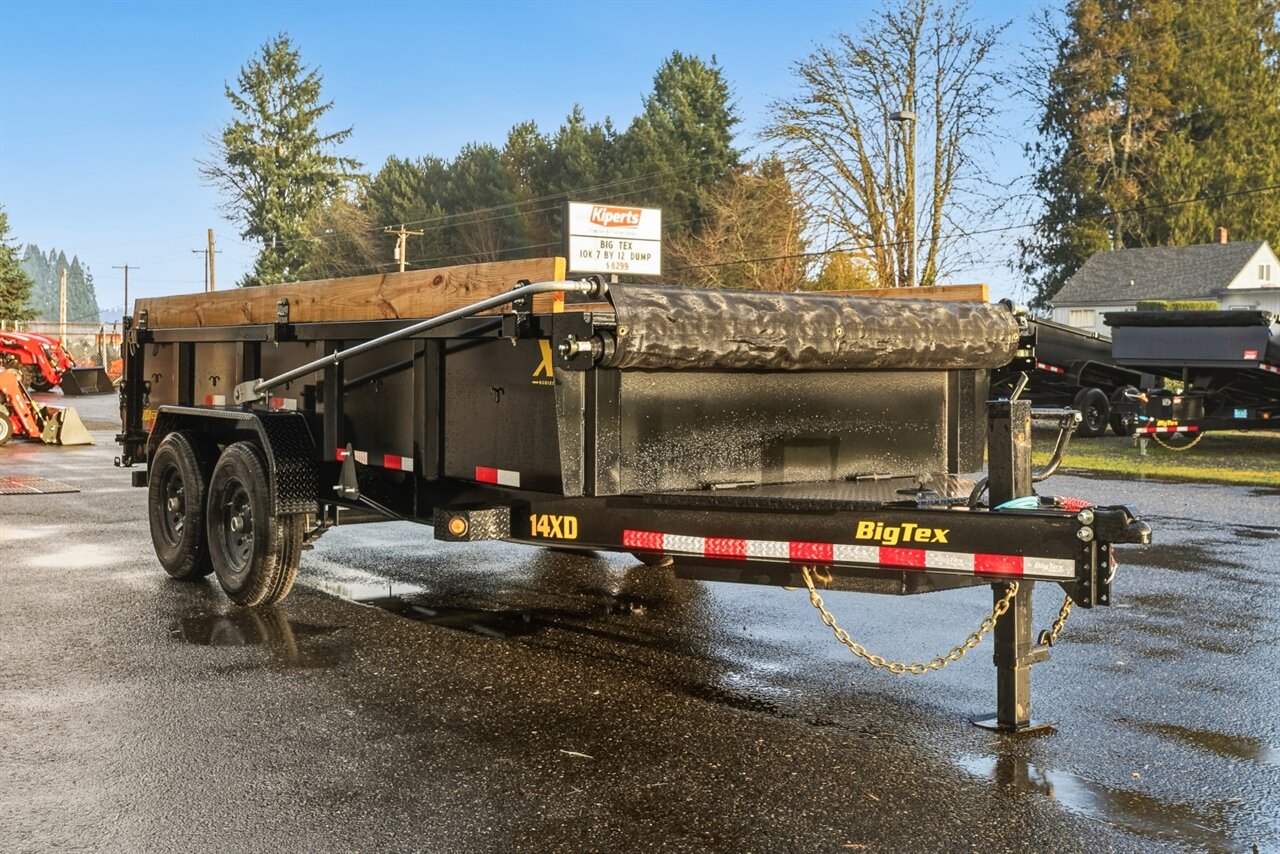

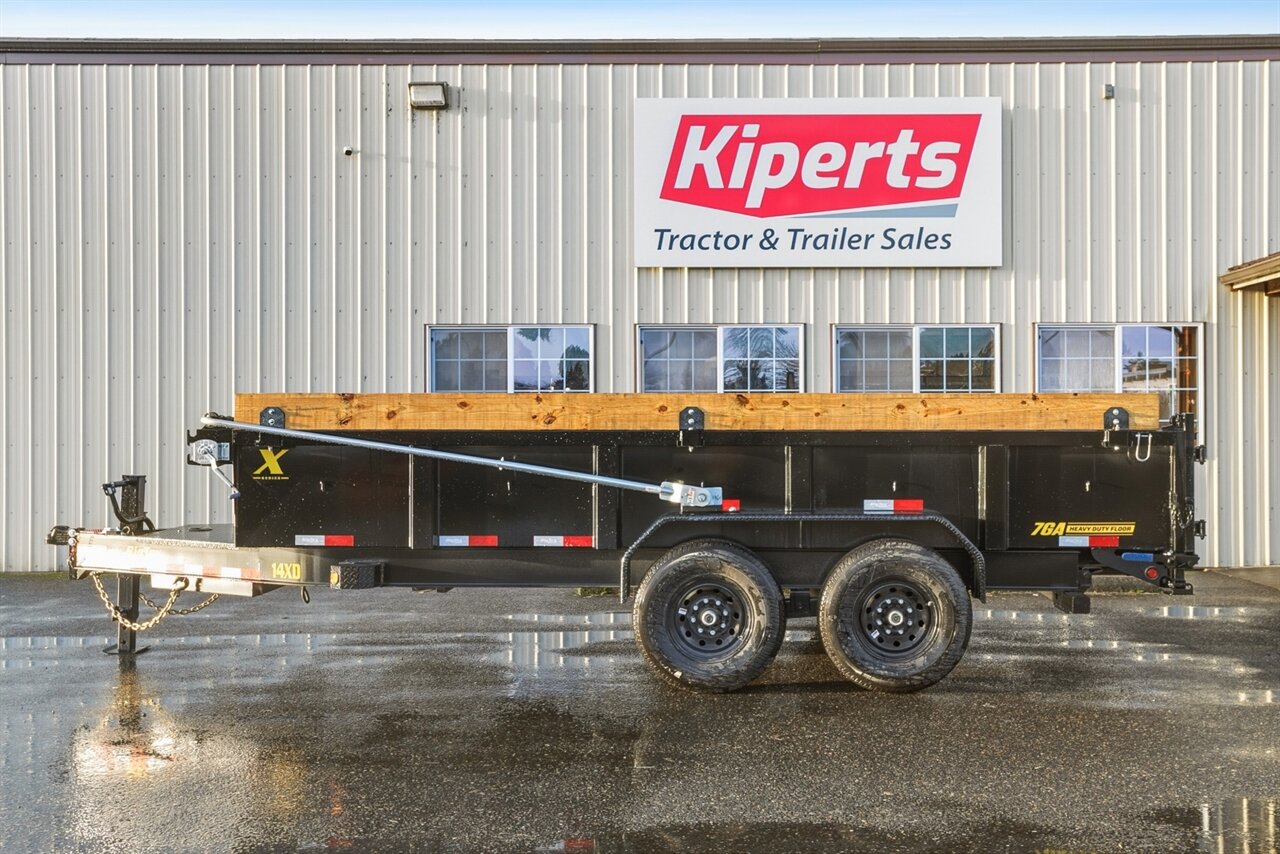

2026 Big Tex Trailers 14XD-16 7x16 15.4K H.D. Dump Trailer
New 2026 Big Tex 14XD 7x16 15.4K Heavy Duty Dump Trailer w/Ramps & Tarp
2026 Big Tex Trailers 14XD-16 7x16 15.4K H.D. Dump Trailer
Stock Number:
51883
Warranty:
Full Warranty
Title:
Clear
VIN:
16V1D2122T5451883
Description
The Big Tex 14XD is a heavy-duty, low-profile dump trailer with a 15,400 lbs GVWR, featuring tandem 7,000# axles, electric brakes, an 8" I-beam frame, 83" deck width, and available in 14' or 16' lengths, with standard 24" sides and a toolbox, designed for robust hauling and dumping tasks.
Key Specifications:
GVWR (Gross Vehicle Weight Rating): 15,400 lbs
Cargo Capacity: Approx. 10,595 – 11,220 lbs (varies slightly by configuration)
Empty Weight: Around 4,200 lbs (varies by length/options)
Axles: 2 x 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes: Forward Self-Adjusting Electric Brakes on All Hubs
Suspension: Multi-Leaf Spring with Equalizer

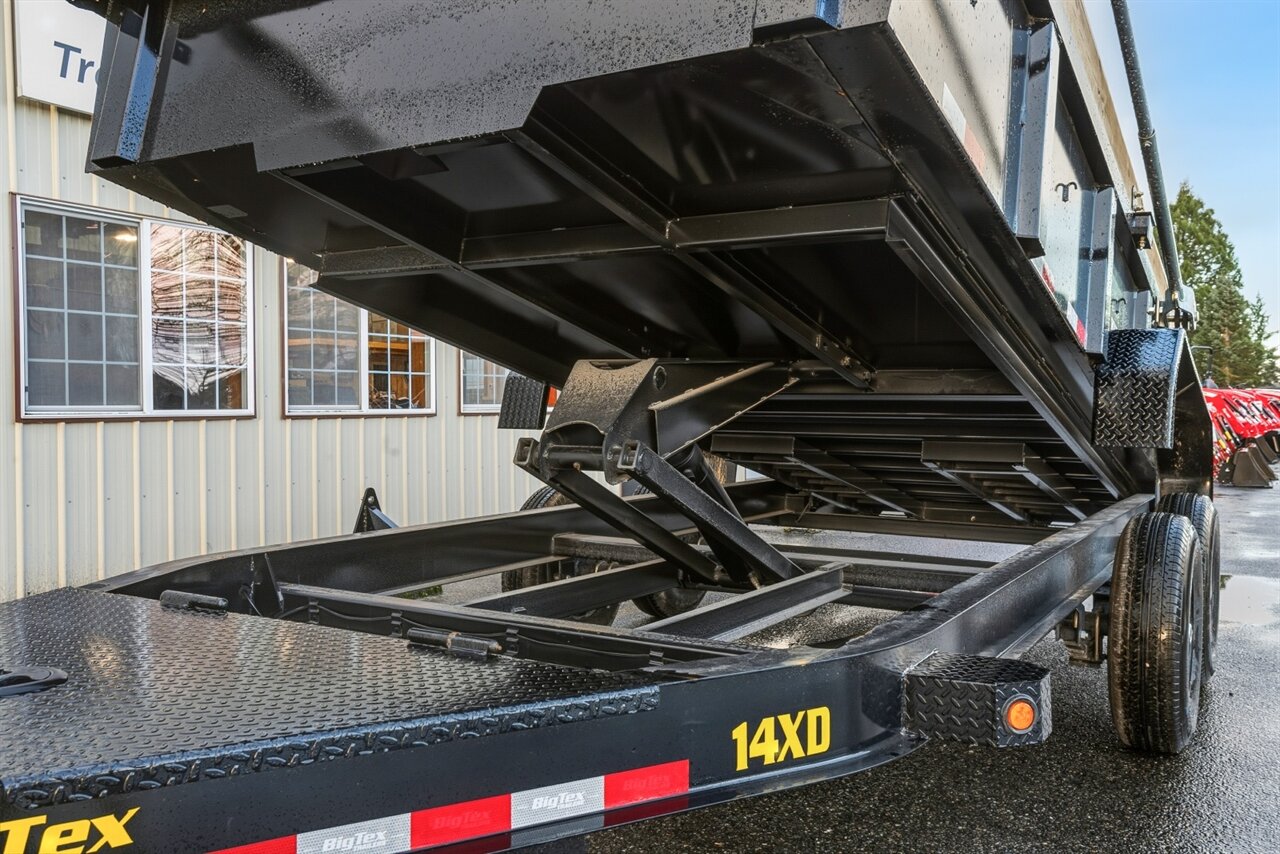

Frame & Tongue: 8" I-Beam (10#) Integral with Frame
Deck Width: 83"
Deck Length: 14' or 16' (model dependent)
Sides: 24" Tall (10 Ga) with Channel Supports

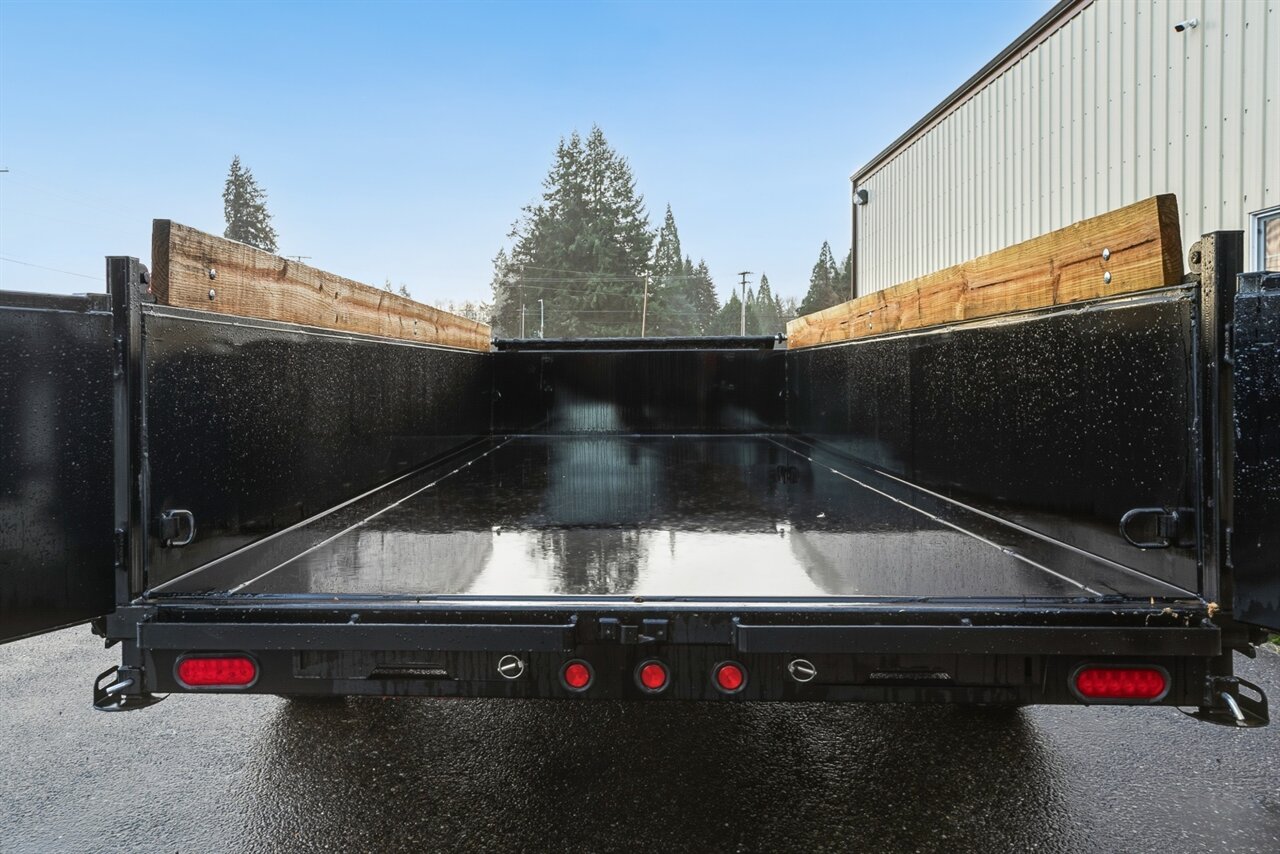

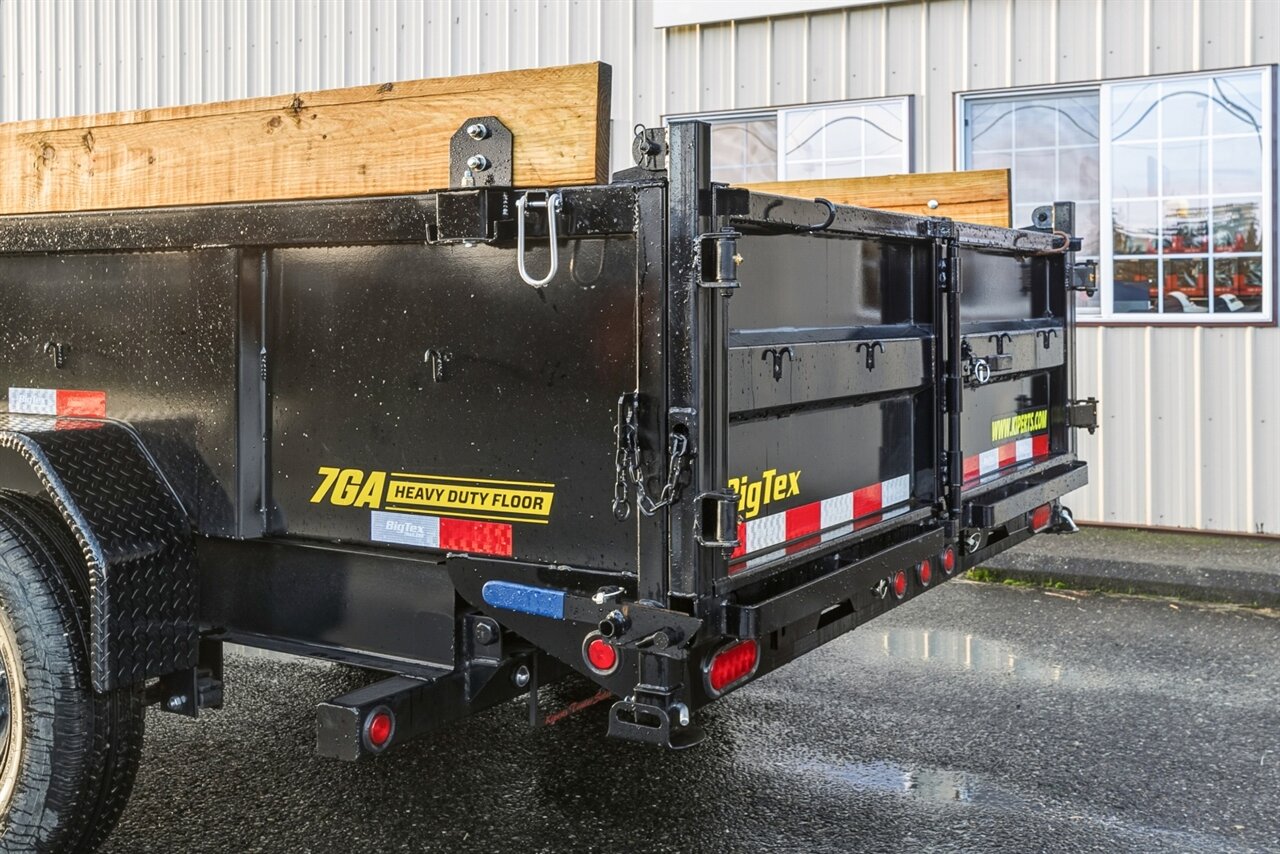

Floor: 7 Gauge Smooth Steel
Tires: ST235/80 R-16 Load Range G
Jack: 12,000# Drop-Leg Jack (Side Wind)
Coupler: Adjustable 2-5/16" (18,000# Demco)
Electrical: 7-Way RV Plug, LED DOT Lighting

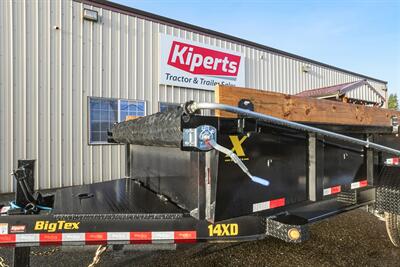

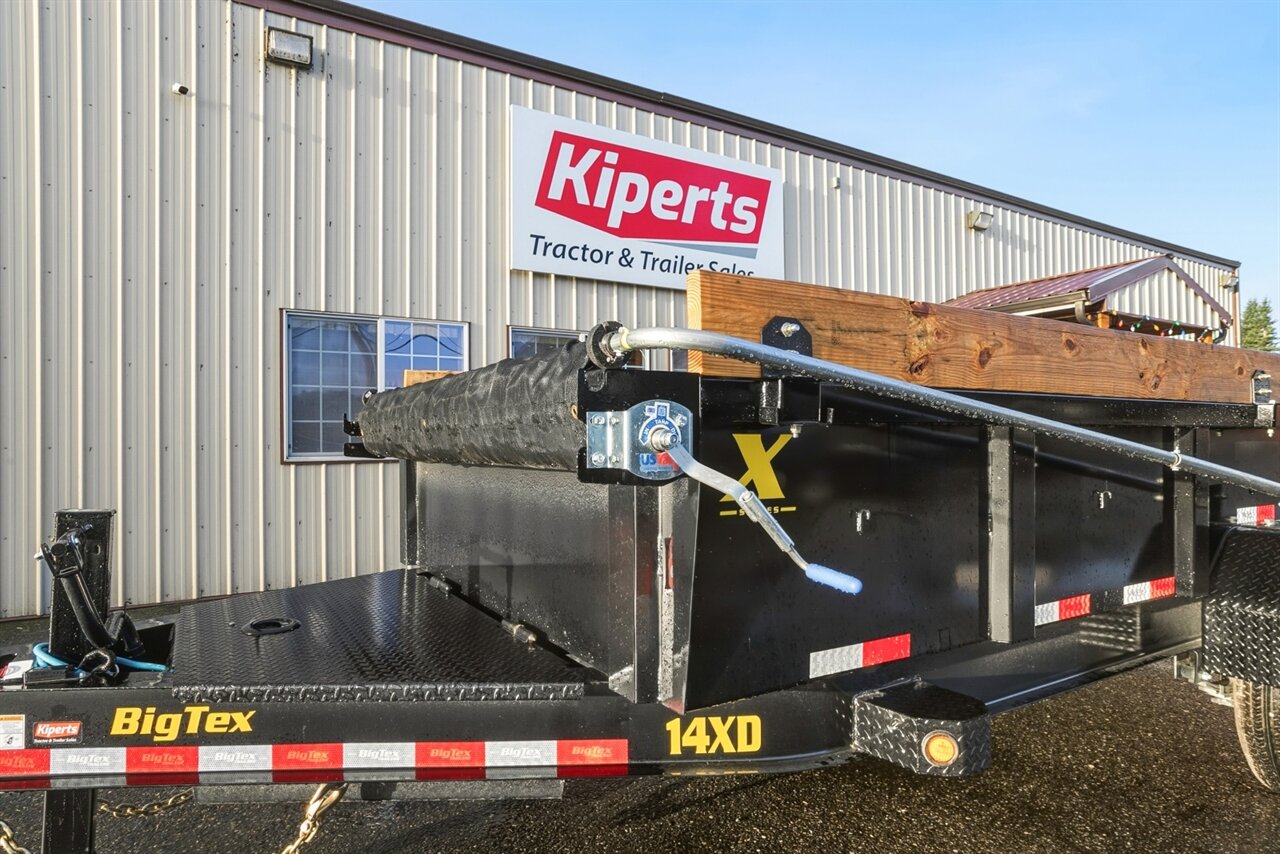

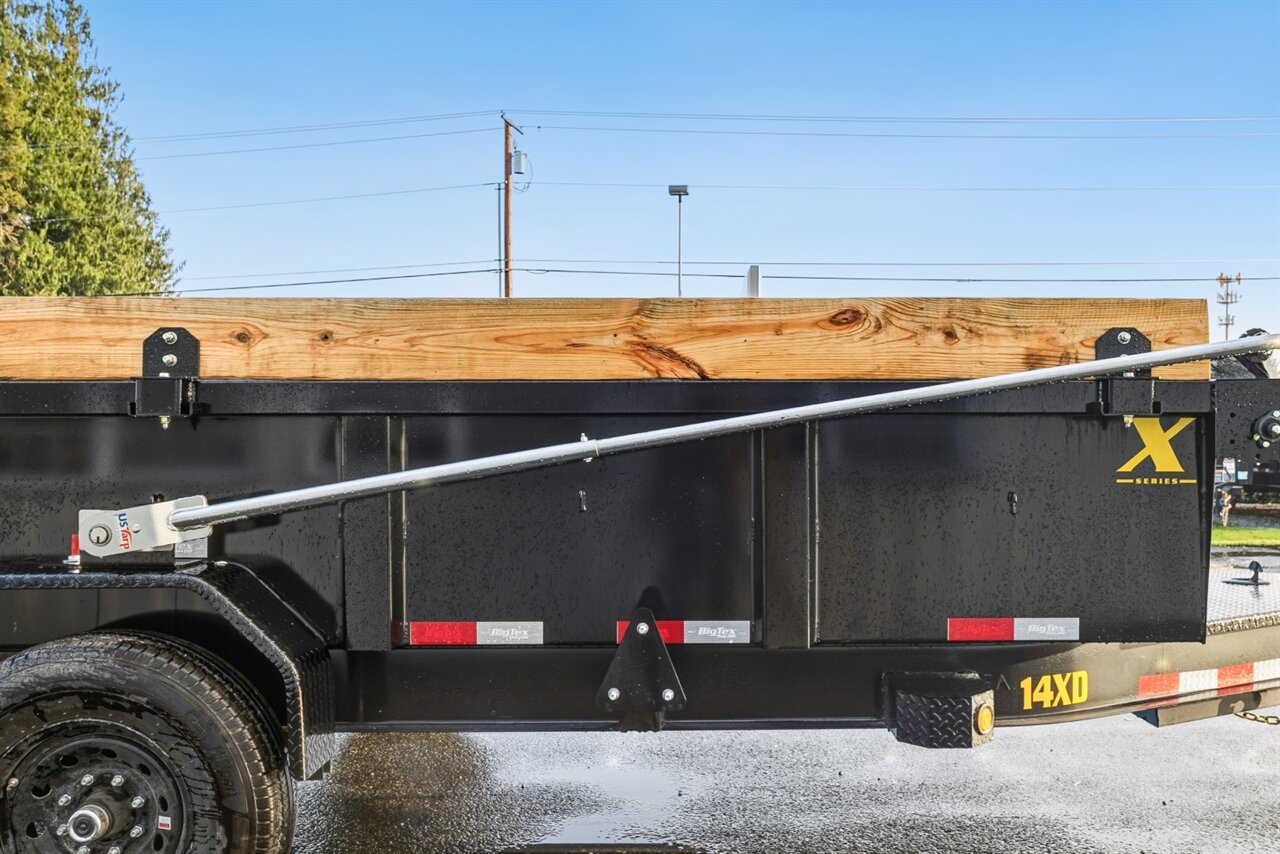

Features: Full Tongue Toolbox, Spring-Loaded Tarp System, 3/8" Grade 70 Safety Chains
Key Specifications:
GVWR (Gross Vehicle Weight Rating): 15,400 lbs
Cargo Capacity: Approx. 10,595 – 11,220 lbs (varies slightly by configuration)
Empty Weight: Around 4,200 lbs (varies by length/options)
Axles: 2 x 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs
Brakes: Forward Self-Adjusting Electric Brakes on All Hubs
Suspension: Multi-Leaf Spring with Equalizer
Frame & Tongue: 8" I-Beam (10#) Integral with Frame
Deck Width: 83"
Deck Length: 14' or 16' (model dependent)
Sides: 24" Tall (10 Ga) with Channel Supports
Floor: 7 Gauge Smooth Steel
Tires: ST235/80 R-16 Load Range G
Jack: 12,000# Drop-Leg Jack (Side Wind)
Coupler: Adjustable 2-5/16" (18,000# Demco)
Electrical: 7-Way RV Plug, LED DOT Lighting
Features: Full Tongue Toolbox, Spring-Loaded Tarp System, 3/8" Grade 70 Safety Chains
Additional Photos
click on a thumbnail to view full-size photos
Contact Information
Full Warranty
This vehicle is covered by
a Full Warranty.
1 Year Hitch To Bumper Warranty Excluding Paint 90 Days Jack & Coupler 3 Year Limited Structure
1 Year Hitch To Bumper Warranty Excluding Paint 90 Days Jack & Coupler 3 Year Limited Structure
