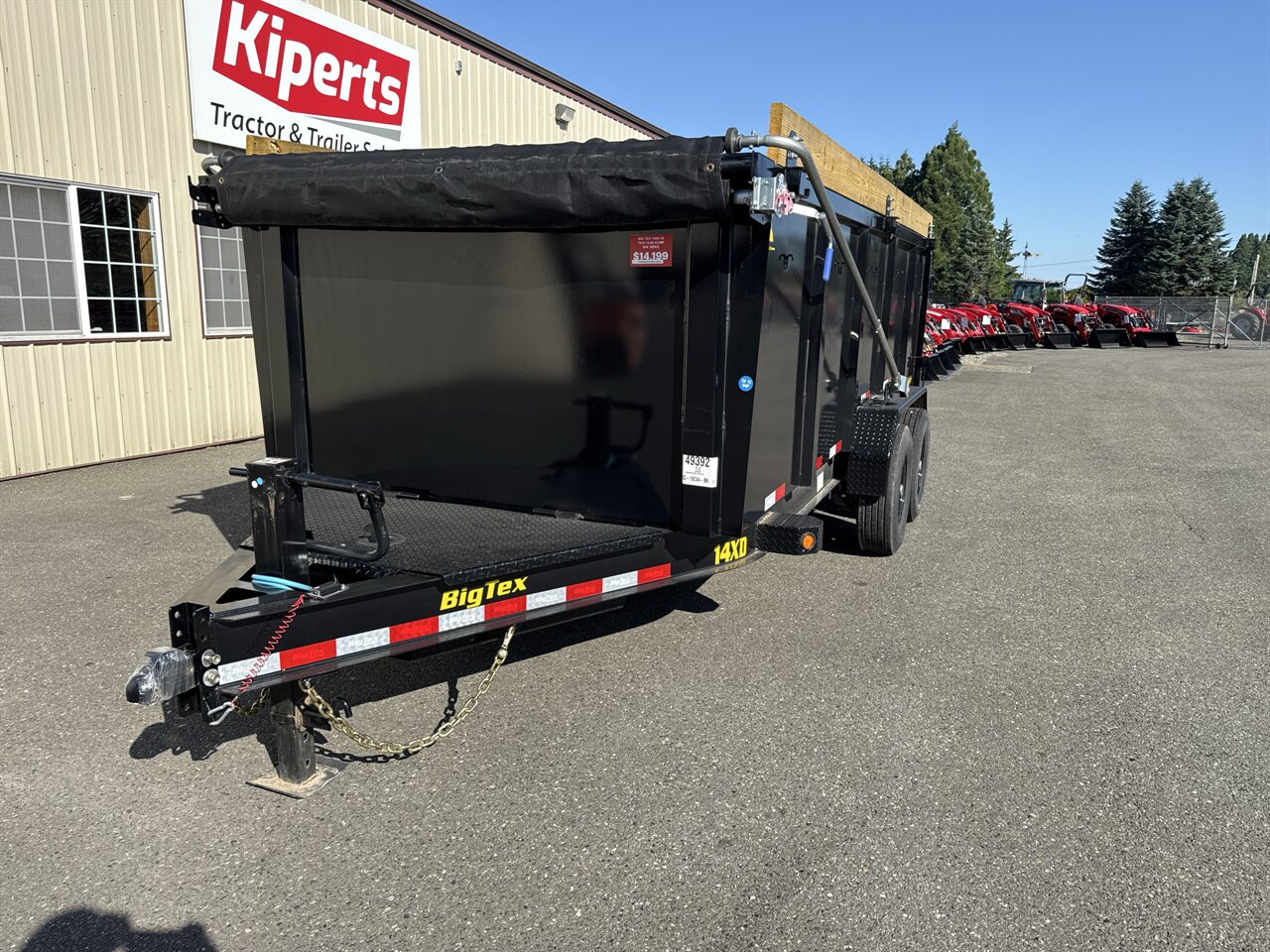

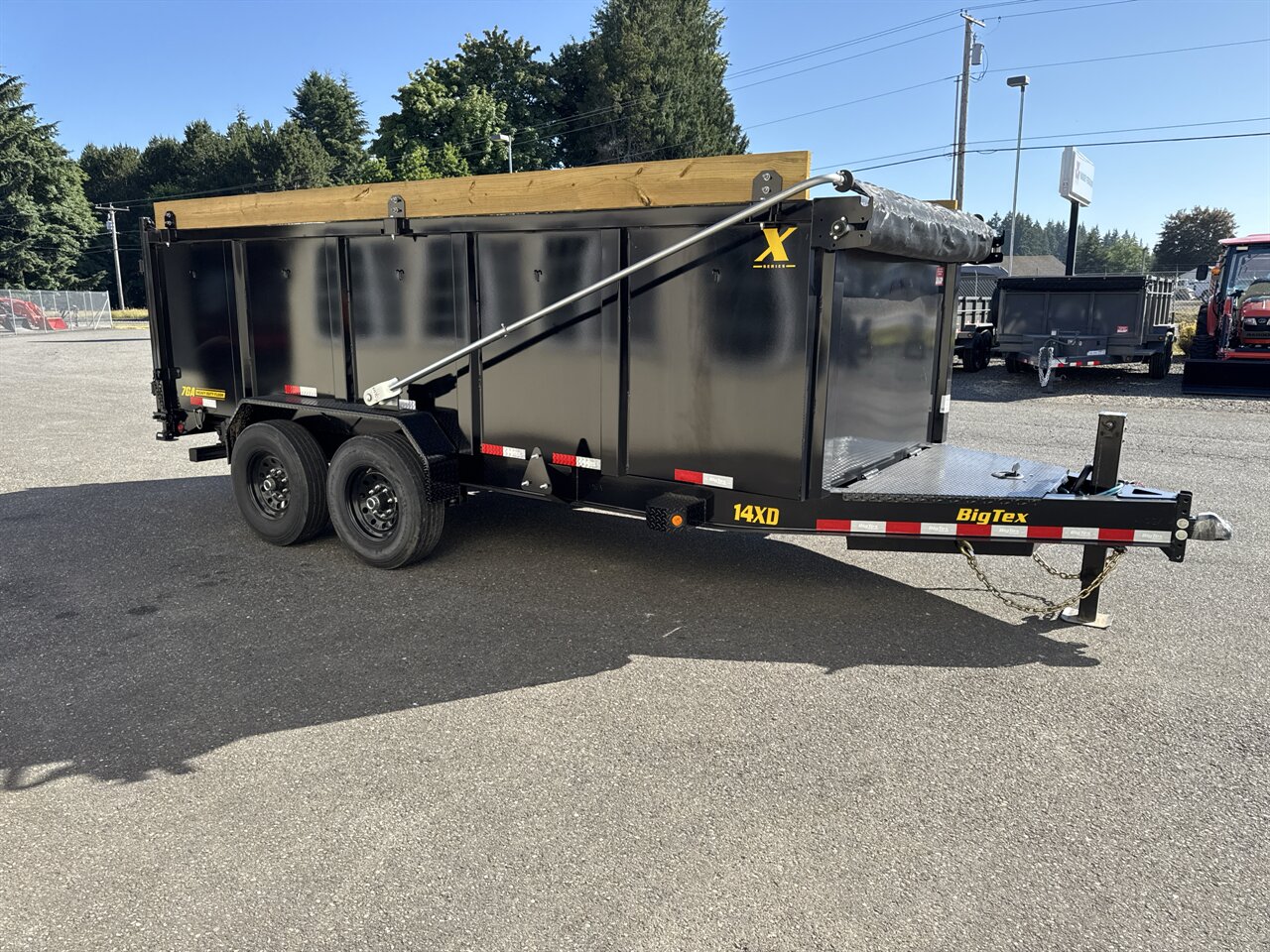

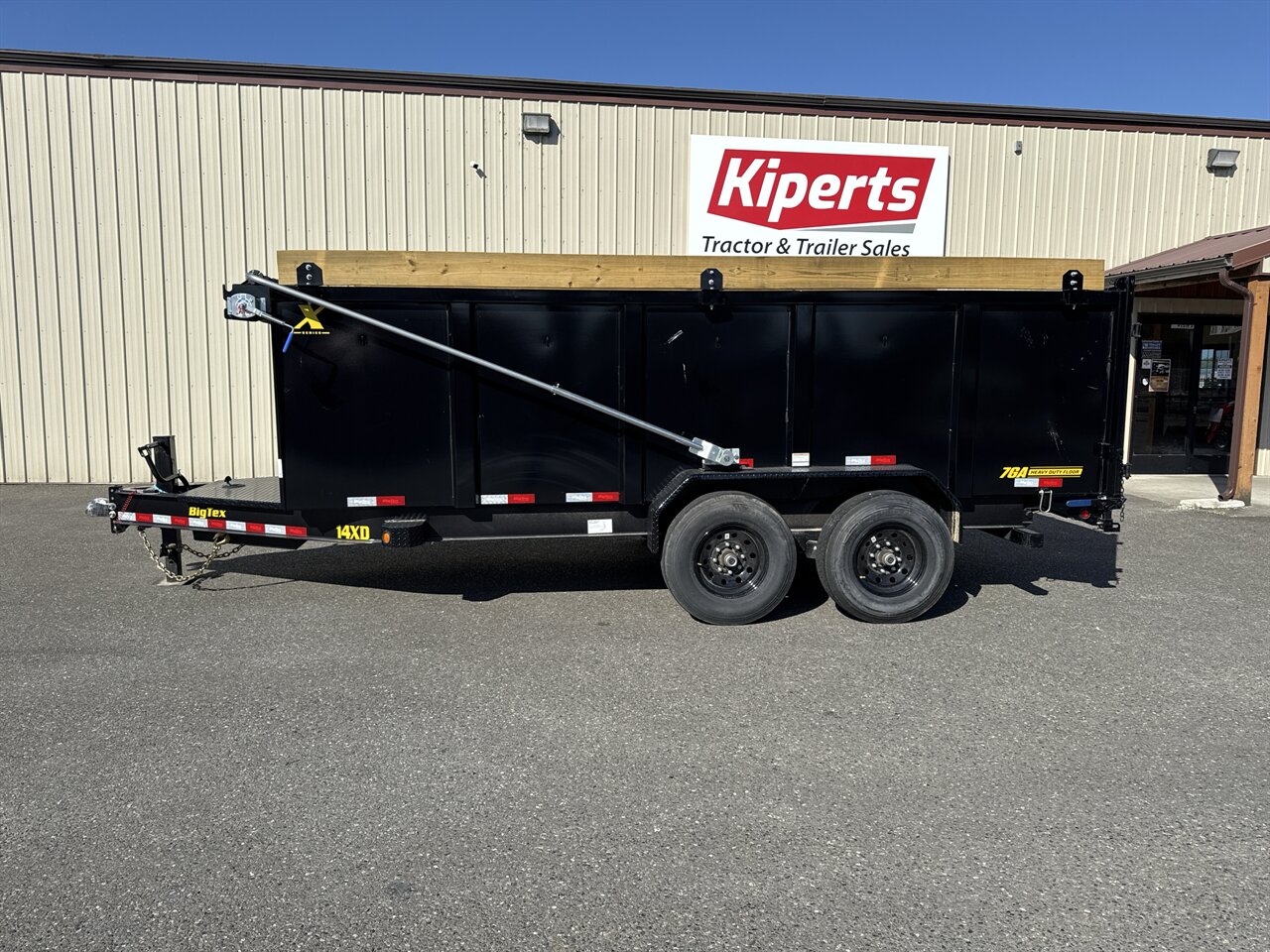

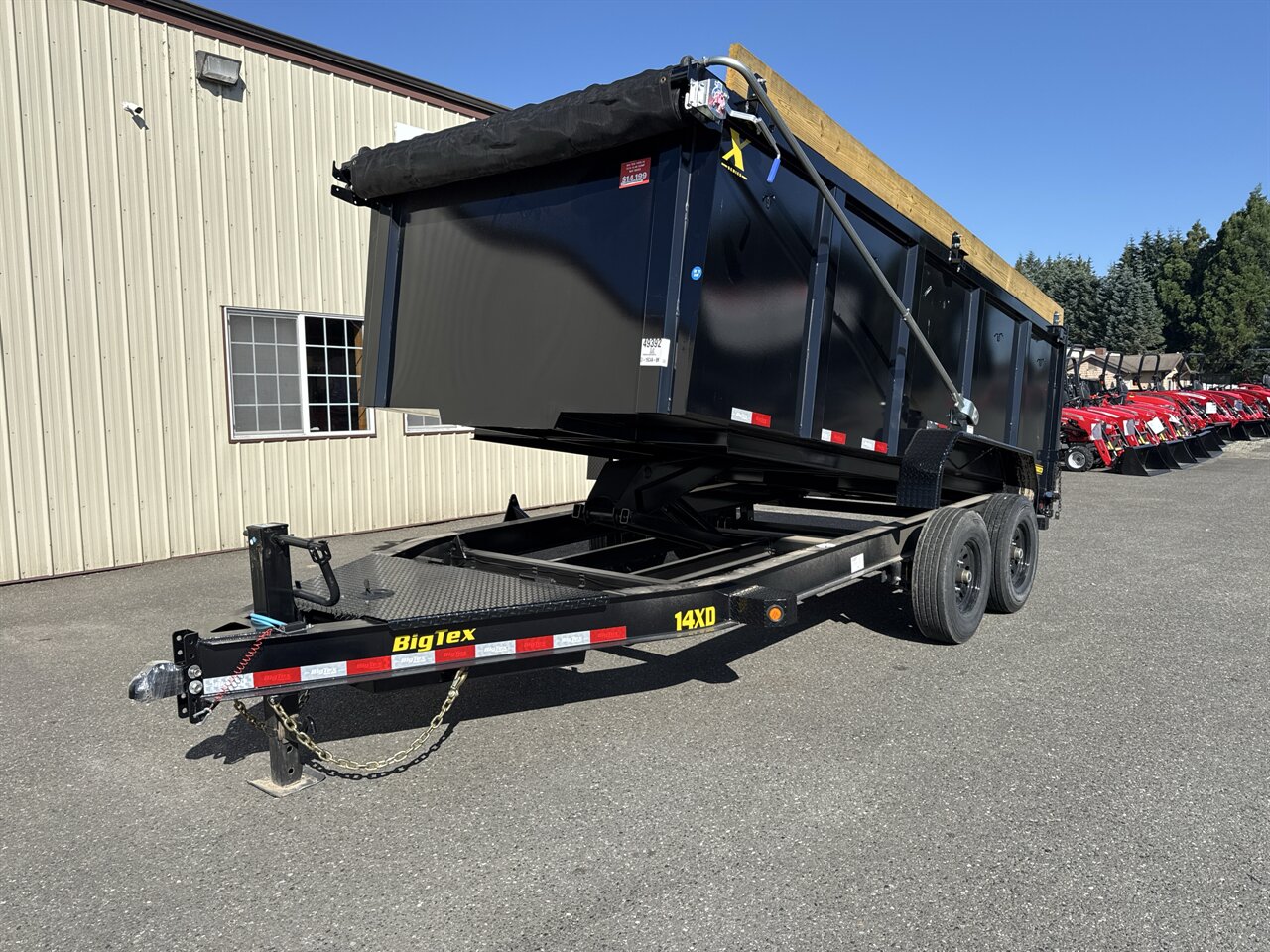

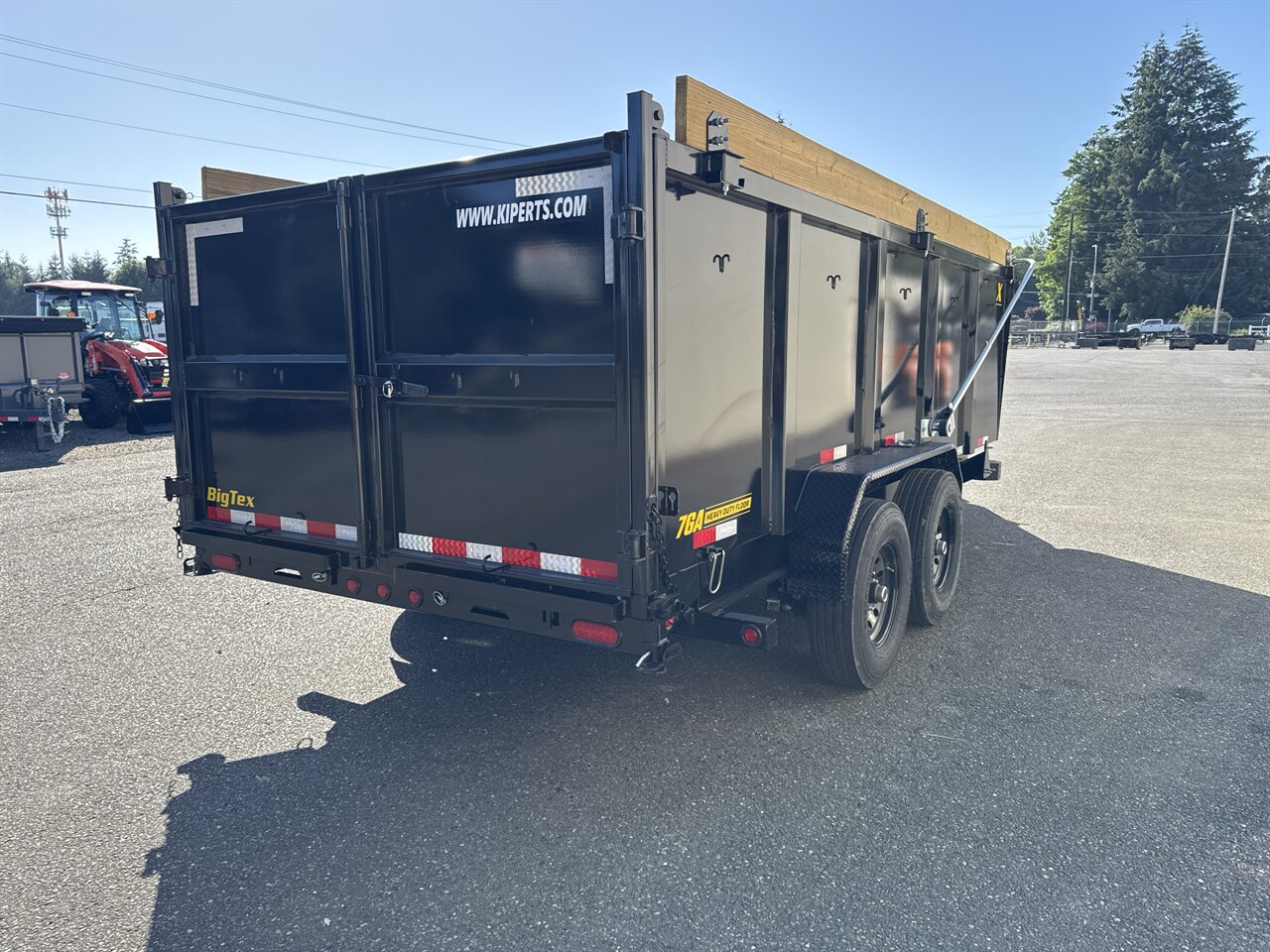

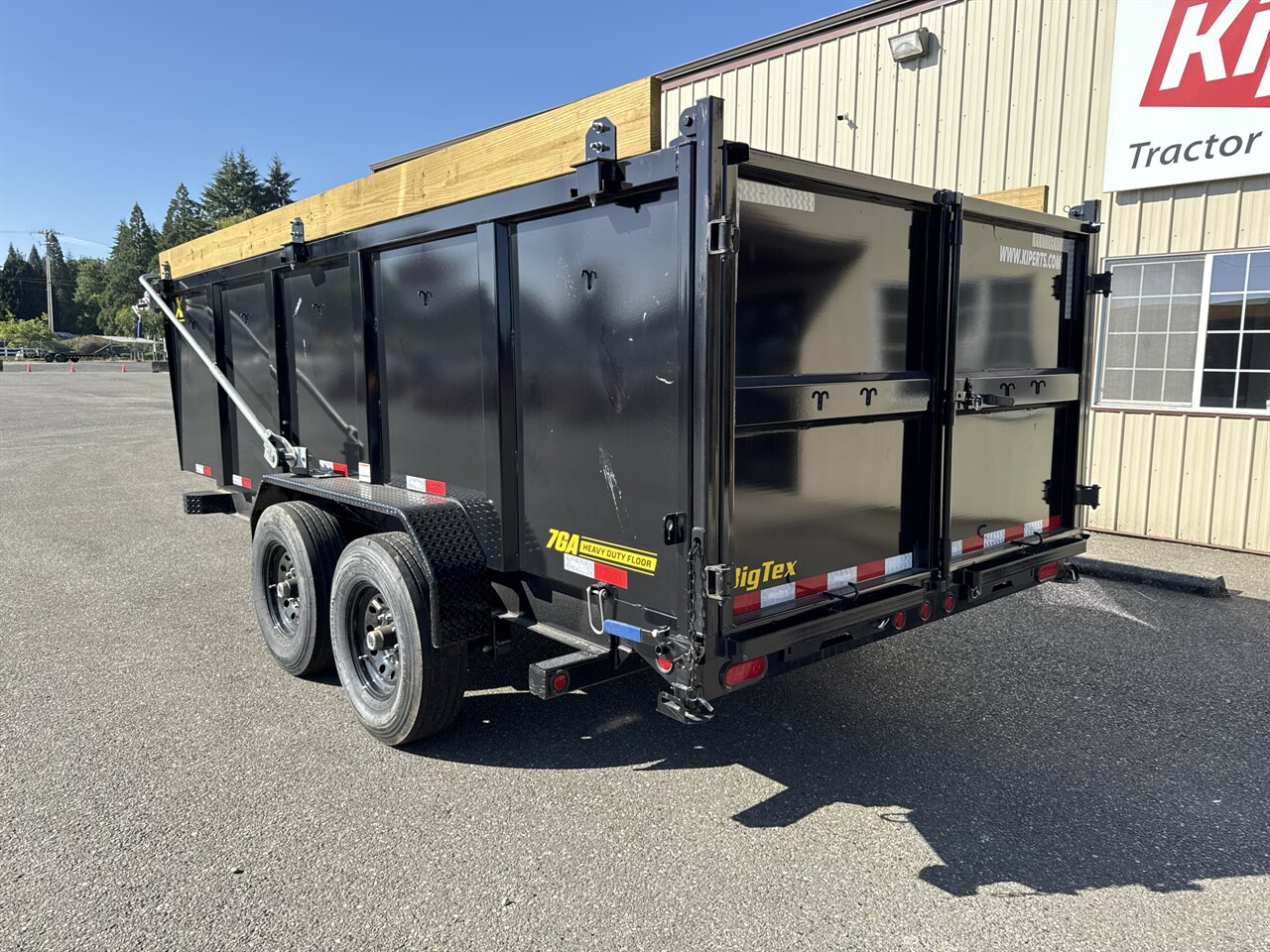

2026 Big Tex Trailers 14XD-16 7X16 15.4 H.D. Dump w/4' Sides

The 2026 Big Tex 14XD-16 7x16 w/4' Sides Heavy-Duty Dump Trailer is built for demanding commercial, construction, and landscaping applications. Part of Big Tex’s all-new X-Series lineup, the 14XD combines a rugged 8” I-beam frame, heavy-gauge steel floor, and powerful scissor-lift hydraulic hoist to handle tough jobs with confidence. With its low-profile design, slide-in ramps, and combo rear gate, this trailer is ideal for hauling equipment, gravel, debris, and materials efficiently and safely.

Key Specifications

• Model: 2026 Big Tex 14XD-16
• Trailer Size: 7’ x 16’
• GVWR: 15,400 lbs
• Empty Weight: Approximately 4,180–4,805 lbs
• Payload / Carrying Capacity: Approximately 10,600–11,220 lbs
• Axles: Tandem 7,000 lb premium electric brake axles
• Frame: Heavy-duty seamless 8” I-beam frame and tongue
• Floor: 7-gauge steel floor
• Sides: 24” tall 10-gauge steel sides
• Hoist: Hydraulic scissor-lift system with power up / power down
• Coupler: Adjustable 2-5/16” Demco EZ-Latch coupler
• Jack: 12,000 lb drop-leg jack
• Ramps: Slide-in loading ramps
• Gate: Combo barn door / spreader gate
• Lighting: Full sealed LED lighting package
• Additional Features: Spring-loaded tarp system, mega-sized toolbox, rear stabilizer stands, stake pockets, D-rings, spare tire mount, onboard battery charger, and sealed modular wiring harness

The Big Tex 14XD series is engineered for contractors and heavy-duty users who need durability, high payload capacity, and reliable dumping performance in a low-profile trailer design. Its reinforced steel construction and advanced hydraulic system make it an excellent choice for hauling heavy materials, equipment, and jobsite debris while maintaining smooth towing stability.
