2025 Big Tex Trailers 22GN-33D5A 28+5

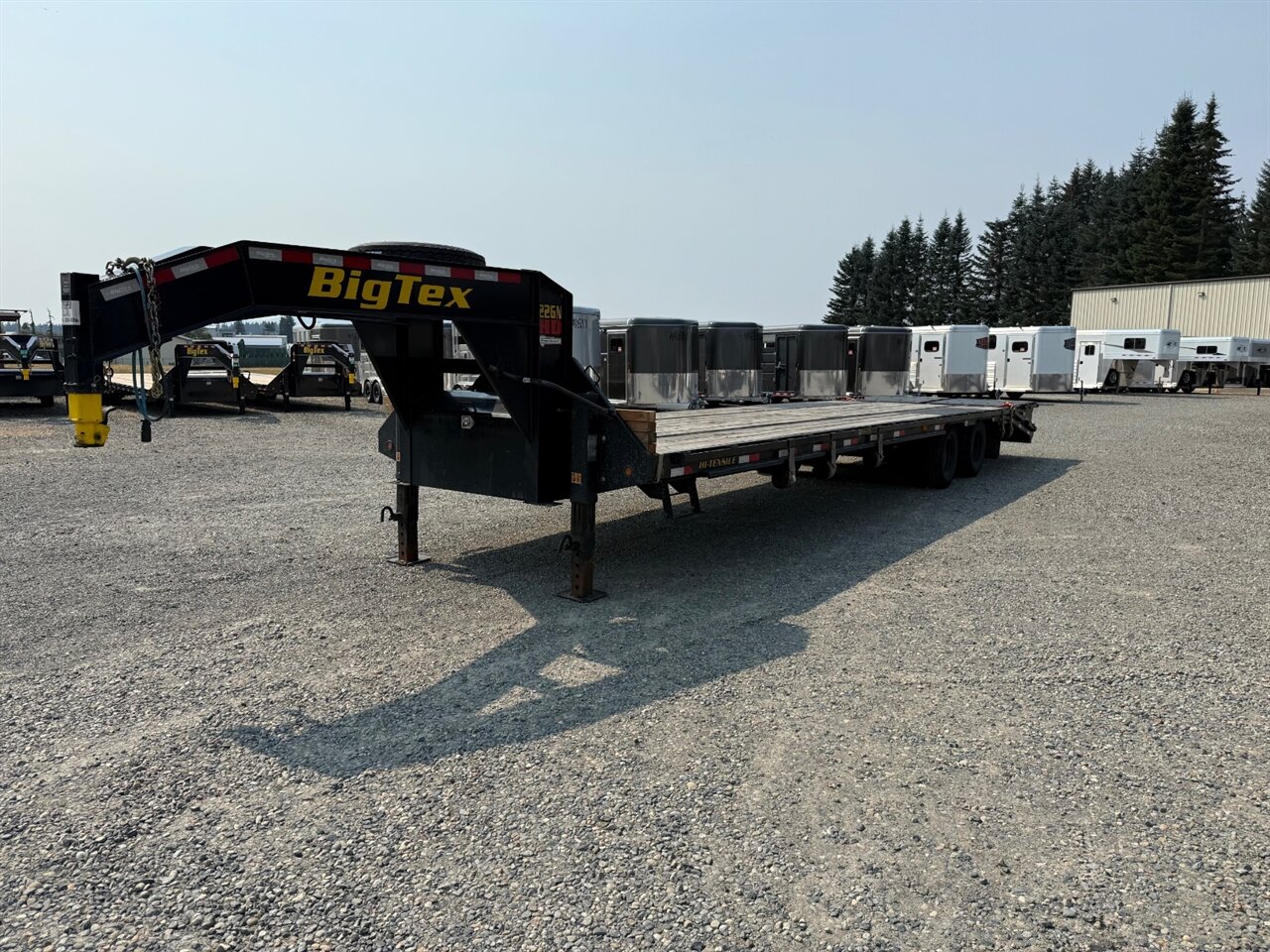

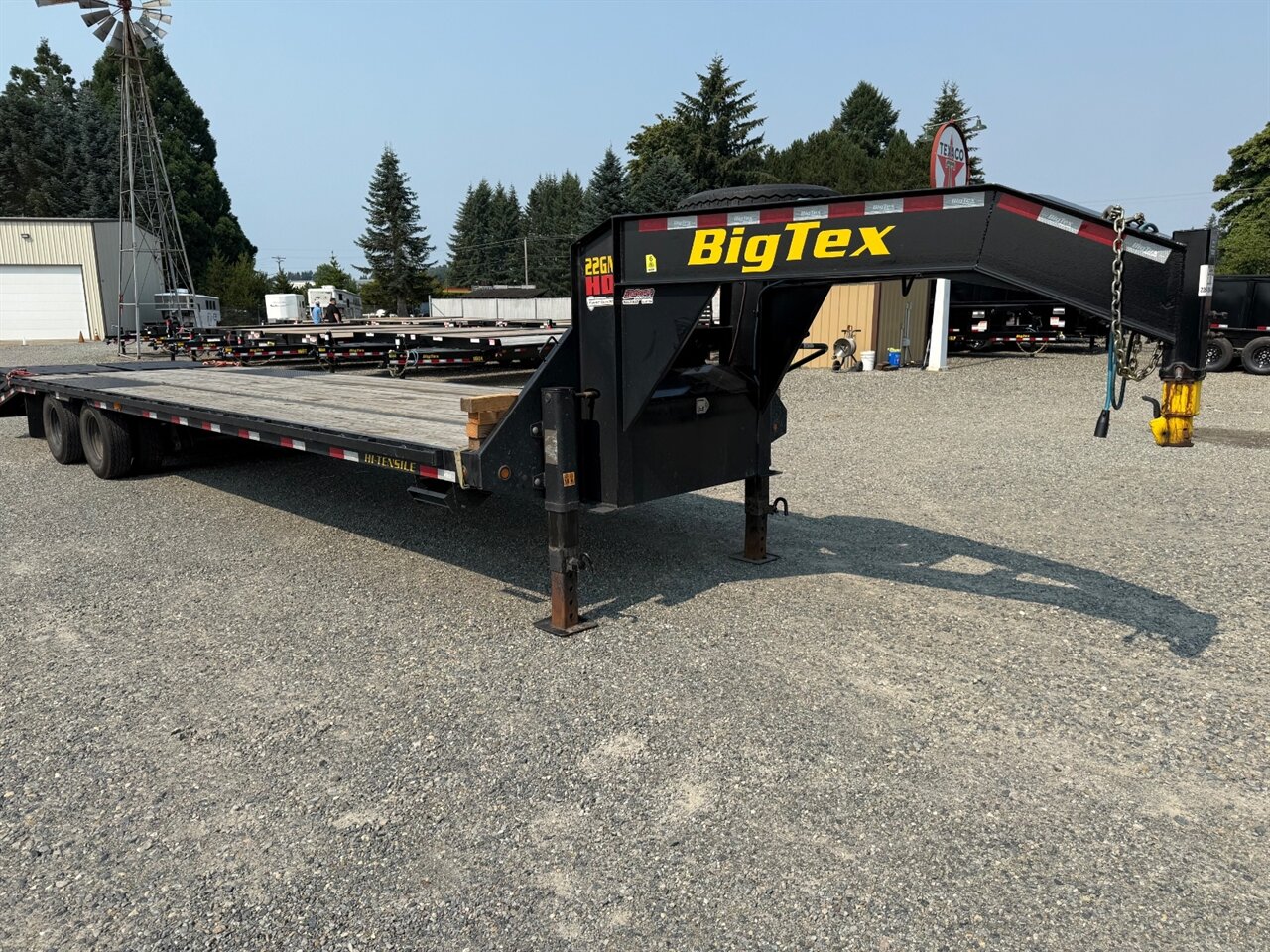

The 2026 Big Tex 22GN-33 28+5 Flatbed Gooseneck with Mega Ramps is built for serious heavy-duty hauling, combining a low-profile pierced I-beam frame with tandem dual-wheel axles and spring-assisted mega ramps for easy equipment loading. Designed for contractors, farmers, and commercial haulers, this trailer delivers excellent stability, strength, and loading versatility for skid steers, tractors, excavators, and other heavy machinery.

Key Specifications
Model: Big Tex 22GN-33D5A-MRBK
Trailer Length: 28’ flat deck + 5’ dovetail
Overall Length: 33'
Width: 102” wide deck
GVWR: 23,900 lbs
Empty Weight: Approximately 8,790–8,920 lbs
Payload Capacity: Approximately 14,980–15,110 lbs
Axles: Tandem 10,000 lb dual-wheel electric brake axles
Suspension: Heavy-duty adjustable suspension

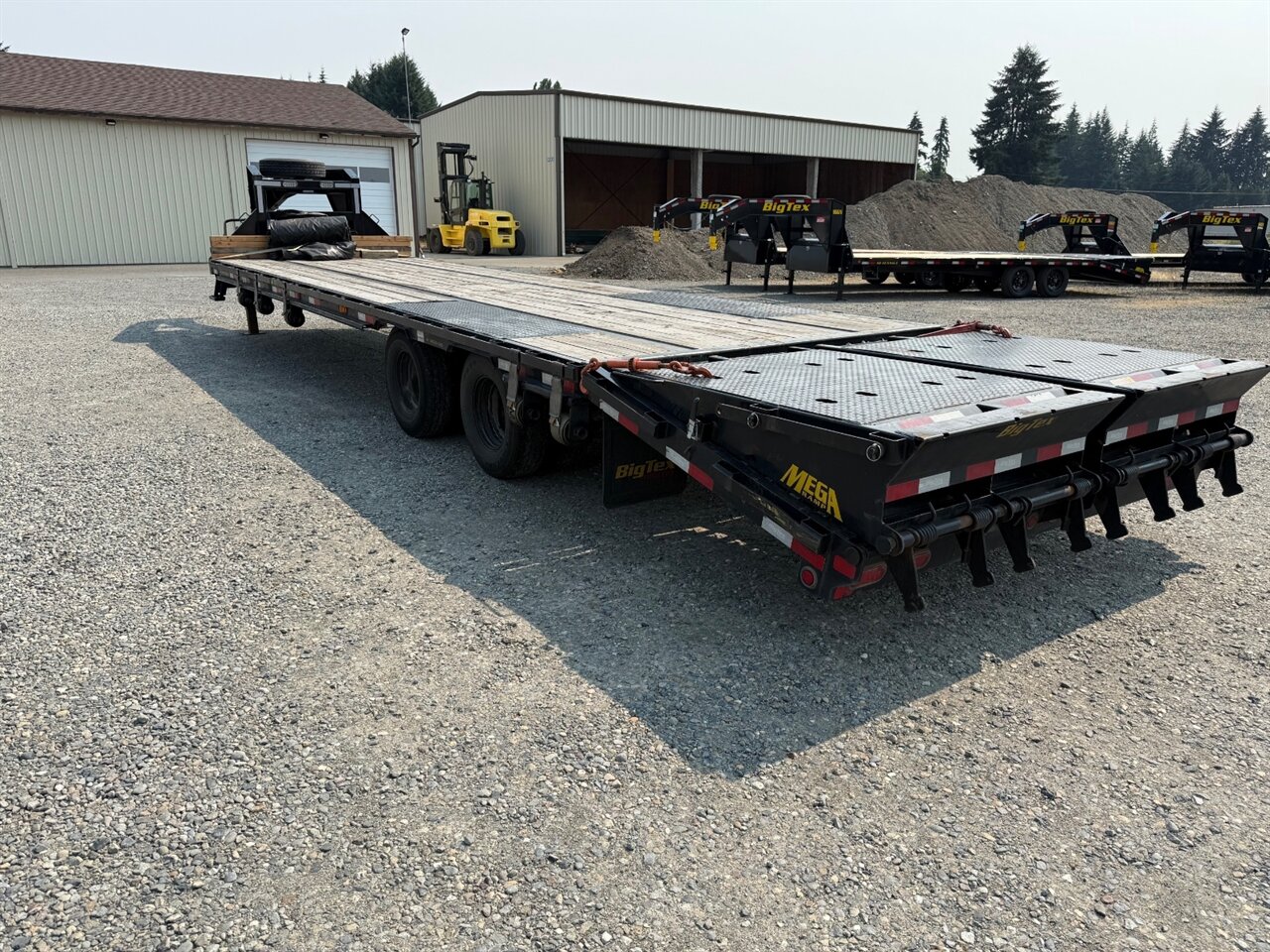

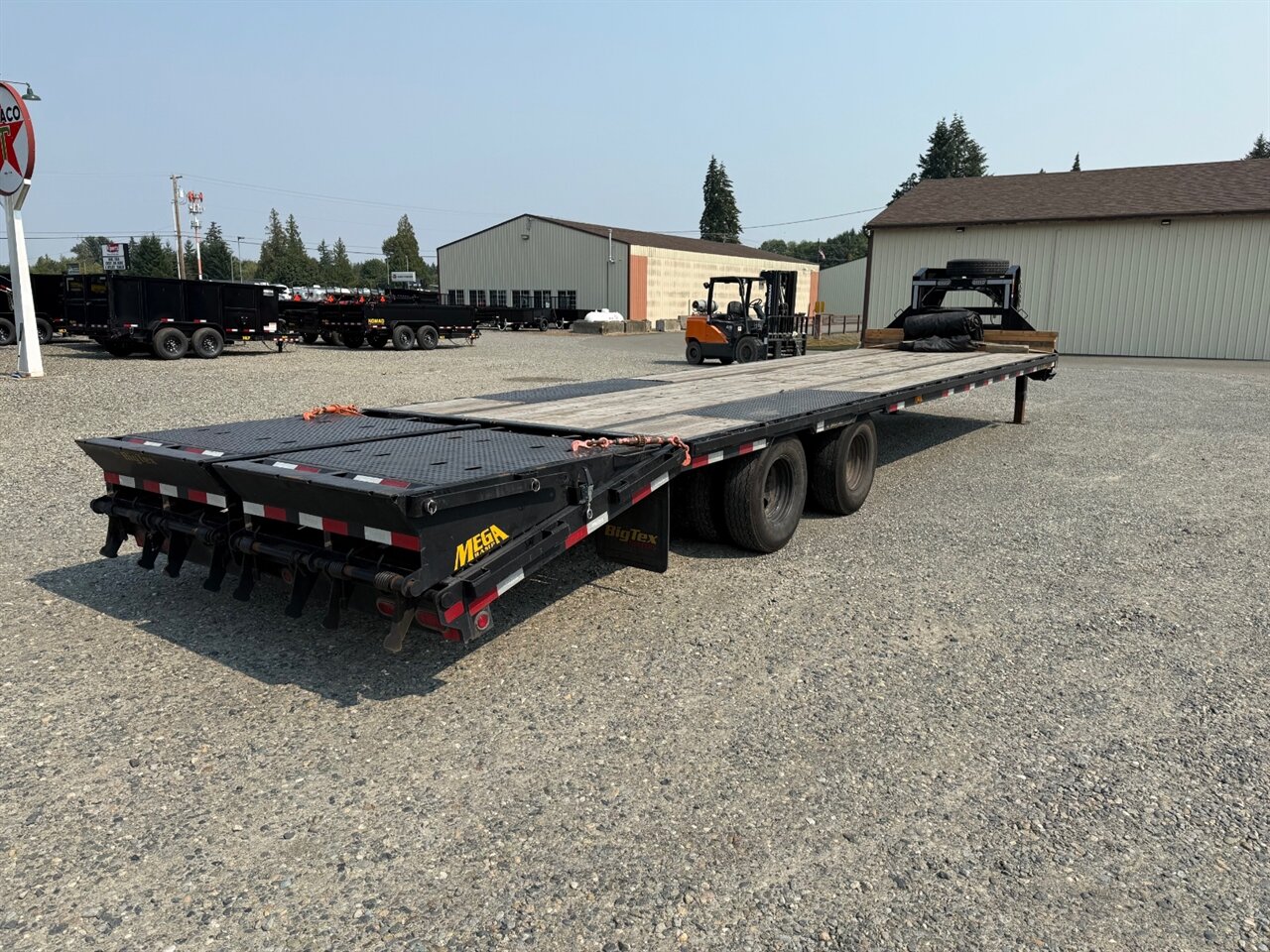

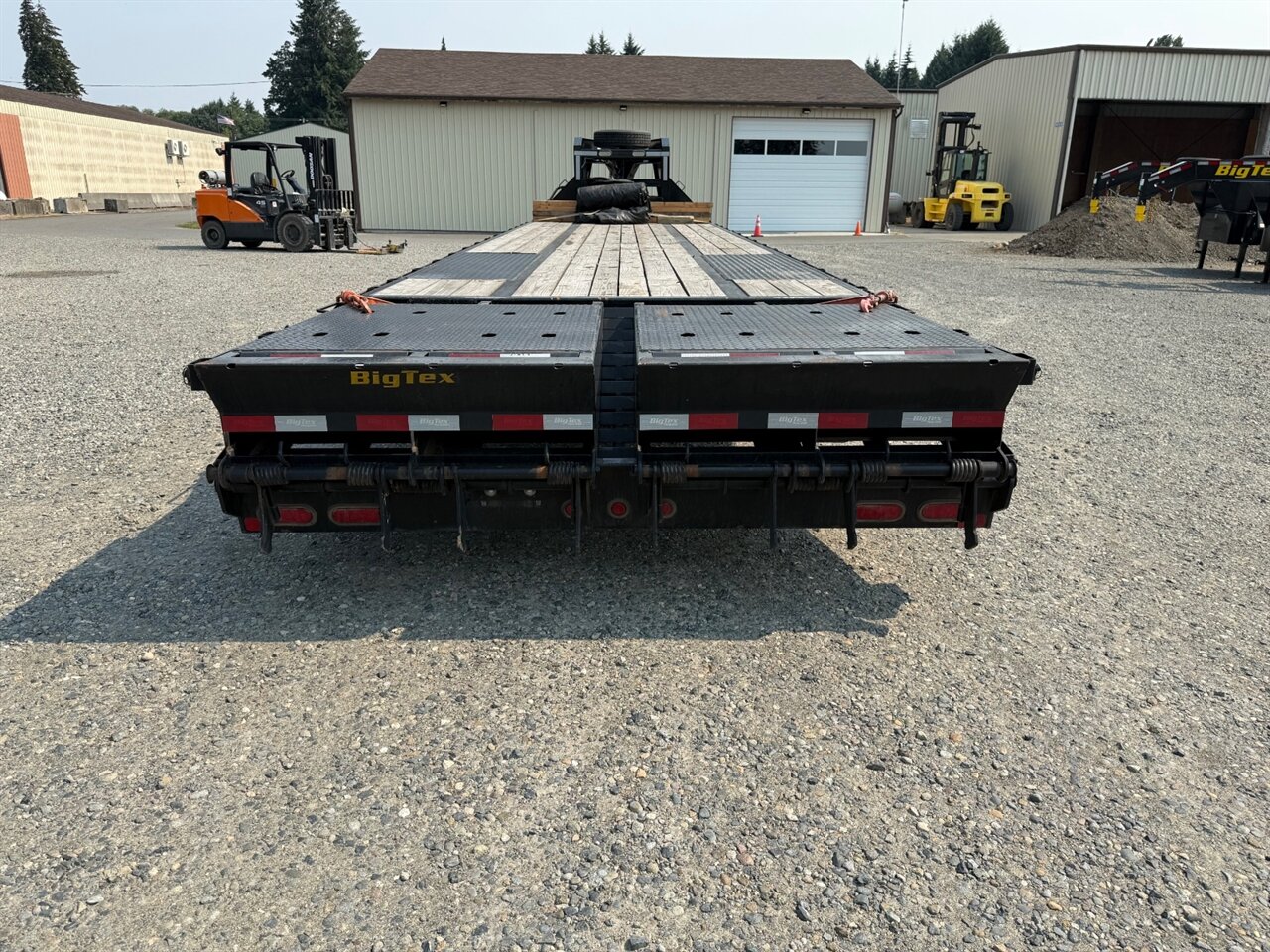

Ramps: 5’ spring-assisted Mega Ramps
Frame: 12” low-profile pierced I-beam frame
Flooring: Treated wood deck

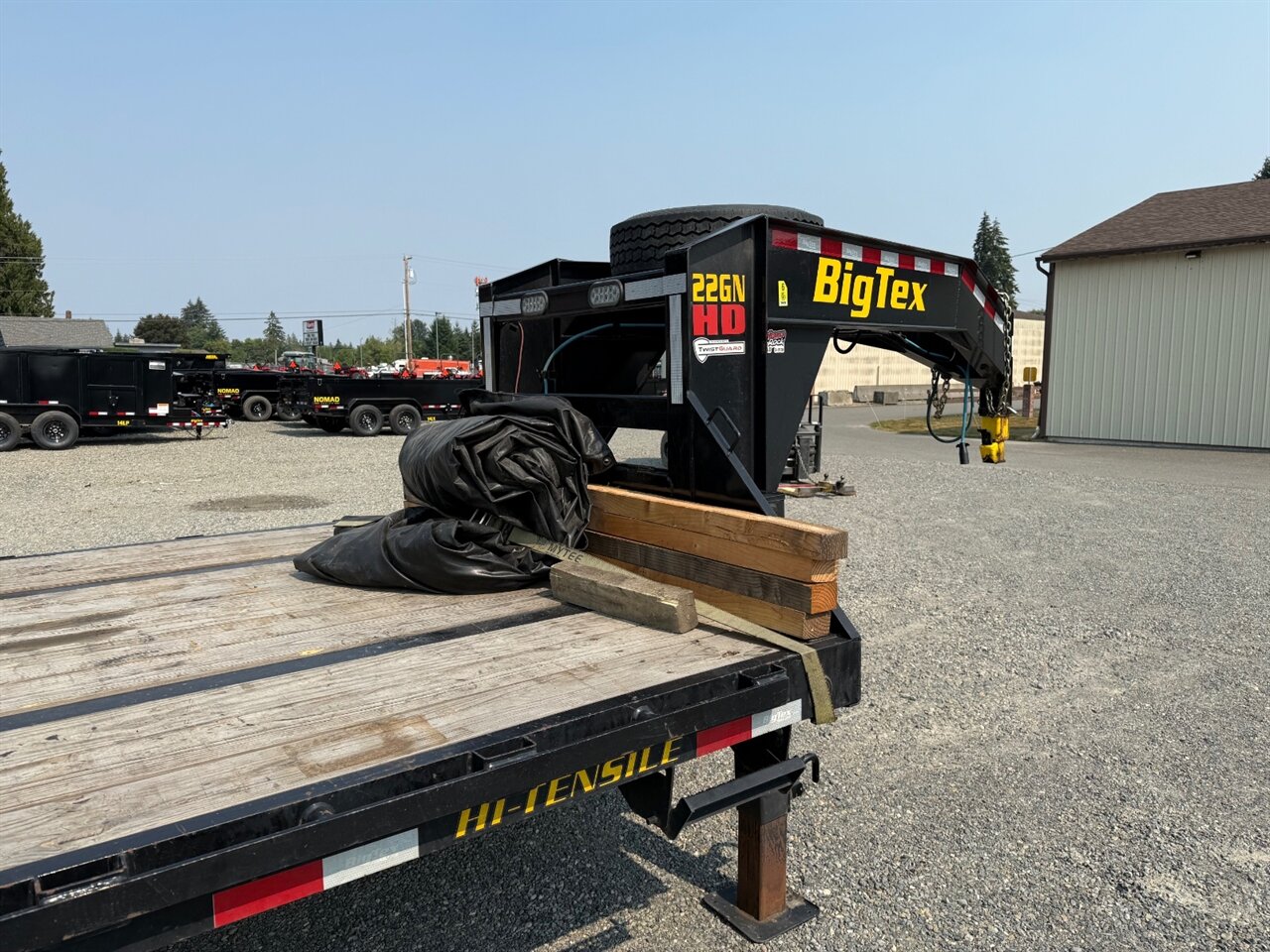

Coupler: Adjustable 2-5/16” gooseneck coupler
Lighting: Full LED lighting package
Extras: Front toolbox, chain spools, stake pockets, rub rail, dual landing gear, integrated work lights
The 22GN series is engineered for durability and easier loading thanks to its low deck height and mega ramp system, making it ideal for loading low-clearance equipment safely and efficiently.

This Trailer is on Consignment. The Mega Ramp Holdbacks are broken and can easily be replaced.
